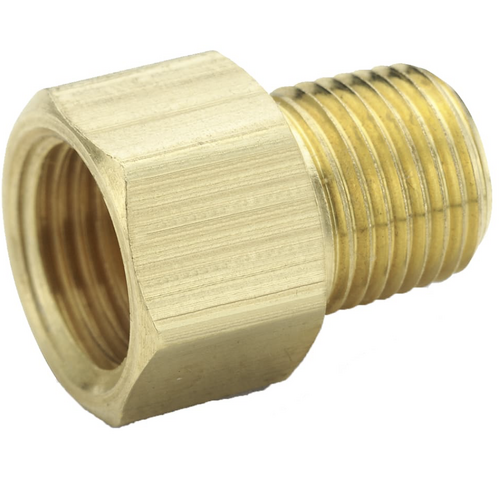

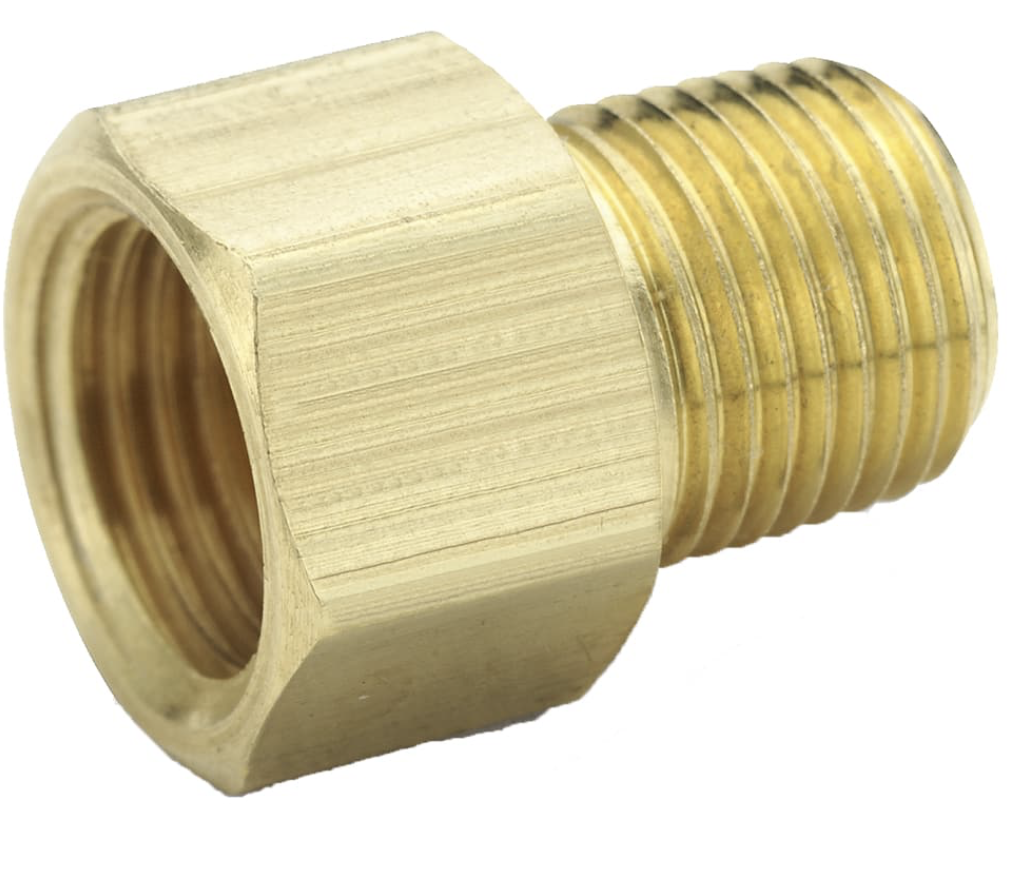

1/4 BSP X 1/4 Inverted Flare Brass Adapter

Description
Specifications

Product Description

The 1/4 BSP x 1/4 Inverted Flare Brass Adapter is a specialized fitting used to connect components that feature two different thread types: BSP (British Standard Pipe) and Inverted Flare. It is commonly used in fluid and gas systems such as plumbing, refrigeration, and automotive applications.

Key Features:

1/4 BSP:
- BSP (British Standard Pipe) is a widely used thread standard, commonly found in plumbing and gas systems. The BSP thread type is typically used for water, gas, and hydraulic lines.
- In this case, the BSP side is 1/4-inch, meaning the fitting has a female BSP thread that connects to male BSP threads of a similar size.
1/4 Inverted Flare:
- Inverted Flare fittings have a 45-degree flare on the end of the male part, which is designed to provide a secure, leak-free connection when tightened. This type of flare is commonly used in fluid and gas systems, especially in automotive and refrigeration systems.
- The 1/4-inch Inverted Flare on the male side of this adapter ensures compatibility with other flare fittings.
Material - Brass:
- Brass is commonly used in this adapter due to its corrosion resistance and durability in various environments. Brass also has excellent heat resistance, which makes it suitable for use in high-temperature applications like gas or hot water systems.
- The material also provides excellent sealing properties, which are crucial for leak-free connections.

Benefits:

Leak-Free Connection: The 45-degree flare design on the male side of the fitting ensures a secure seal when connected to a flare fitting, preventing leaks in the system.
Versatility: This adapter allows for the connection of components with BSP threads to those with inverted flare fittings, which is common in gas lines, refrigeration, automotive fuel systems, and hydraulic systems.
Corrosion-Resistant: The brass construction ensures the fitting can withstand exposure to water, air, and chemicals without rusting, making it durable and long-lasting.
High-Temperature Tolerance: Brass can handle high temperatures, which is especially useful for gas or heating applications where the fitting might be exposed to elevated temperatures.
Ease of Installation: The adapter is easy to install and offers a reliable connection without the need for additional sealing compounds or tools. It also ensures a quick and secure connection between two components with different thread types.

Applications:

Gas Systems: Commonly used in LPG (liquefied petroleum gas) or natural gas connections, especially in systems where BSP threads are used on one side and inverted flare fittings are used on the other (such as in BBQs, caravans, or home gas supply systems).
Automotive: Used to connect fuel or hydraulic lines where BSP threads are used on some parts, while inverted flare fittings are employed on others. It is commonly used in brake systems, fuel lines, or air conditioning systems in vehicles.
Refrigeration and HVAC: The 1/4 inverted flare fitting is a standard fitting in refrigeration and HVAC systems, often used to connect hoses or pipes to refrigeration components, such as compressors, evaporators, or condensers.
Plumbing and Hydraulic Systems: Can be used in plumbing or hydraulic systems, where BSP threads and inverted flare fittings are commonly found, such as in pressure systems, fluid transfer, and water distribution.

When to Replace:

Leaks: If you notice a leak at the connection point, the adapter may be worn or damaged and should be replaced to prevent loss of pressure or potential safety hazards.
Visible Damage: If the adapter shows signs of cracks, corrosion, or physical wear, it should be replaced to ensure proper function and prevent future failures.
Reduced Performance: A drop in the system’s performance, such as reduced fluid or gas flow, may indicate a problem with the fitting. If cleaning or adjusting doesn't solve the issue, it may be time to replace the adapter.

Conclusion:

The 1/4 BSP x 1/4 Inverted Flare Brass Adapter is a high-quality, versatile fitting used to connect components with BSP threads to those with inverted flare threads. With its durable brass construction and secure, leak-free sealing design, this adapter is ideal for use in a wide range of systems, including gas, automotive, refrigeration, and plumbing applications. Its easy installation and reliable performance make it an essential component in various fluid and gas line connections.

Specifications

SKU

17907
