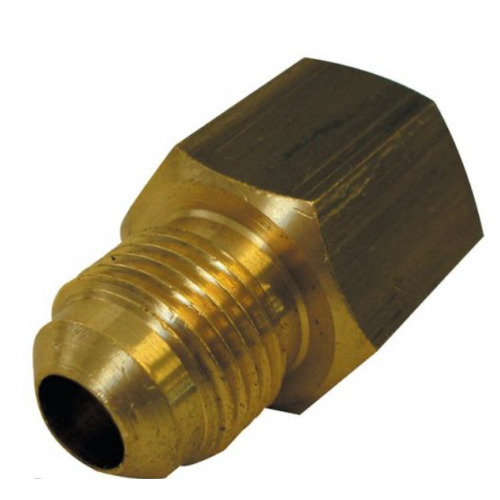

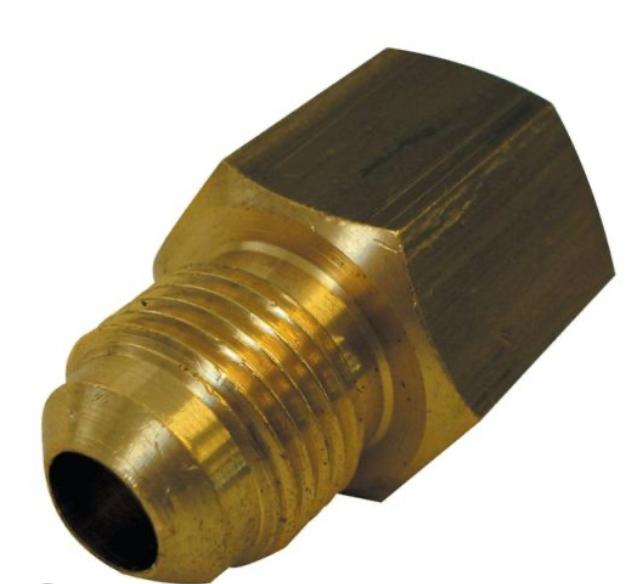

The 3/8 BSP Female X 3/8 SAE Male Flare Union is a type of fitting used to connect two different types of threaded connections, specifically:
Key Features:
-
BSP Female Thread:
The BSP (British Standard Pipe) thread is a popular type of threading used for fluid and gas systems. The female BSP end is designed to screw onto a male BSP fitting, providing a secure, leak-proof connection. BSP threads are commonly used in plumbing and gas installations. -
SAE Male Flare Thread:
The SAE (Society of Automotive Engineers) male flare thread is typically used in automotive and industrial applications, and it features a 45-degree flare on the male end. This provides a tight, reliable seal when the male flare nut is screwed onto a corresponding female flare fitting. -
Size:
This union has 3/8 inch BSP Female on one side and 3/8 inch SAE Male Flare on the other side, making it versatile for adapting between BSP and SAE flare fittings, commonly used in gas, plumbing, and hydraulic systems. -
Material:
The union is typically made from durable materials such as brass, stainless steel, or zinc-plated steel, depending on the application. These materials are corrosion-resistant and suitable for use in harsh environments. -
Union Design:
A union is a type of fitting designed to allow for easy disconnection and reassembly of connected components. This makes it ideal for situations where maintenance or servicing may be required.
Applications:
-
Gas Systems:
The 3/8 BSP Female X 3/8 SAE Male Flare Union is commonly used in LPG or natural gas installations, especially when you need to transition between different thread types. It is often used for connecting gas hoses, regulators, or other equipment where a secure and reliable connection is required. -
Automotive and Industrial Applications:
The SAE male flare is often used in automotive and hydraulic systems, making this union suitable for transitioning between BSP and SAE connections in those systems. -
Water and Plumbing Systems:
In some plumbing systems, the BSP female connection is used for water piping, while the SAE male flare might be required for specific devices or connections, such as refrigeration units or specialized plumbing systems. -
Air Conditioning Systems:
The SAE flare threads are widely used in refrigeration systems for HVAC (heating, ventilation, and air conditioning) systems. This union allows the connection of copper refrigerant lines to components like compressors and condensers.
Benefits:
-
Leak-Free Seal:
The flare design ensures a strong, reliable seal, particularly important in gas, fluid, or refrigerant lines where leaks can be dangerous or costly. -
Versatility:
This union allows you to connect two different types of threads (BSP and SAE), providing flexibility in adapting your system components. -
Ease of Installation and Maintenance:
The union design enables easy disconnection and reassembly of components, making it useful in systems that require periodic maintenance or adjustments. -
Durability:
The materials used (often brass or stainless steel) ensure that the fitting will withstand high pressures, temperatures, and exposure to various chemicals or environmental conditions.
When to Use:
-
Adapting Between BSP and SAE Systems:
If you're working with a system that has a mix of BSP and SAE thread connections, this fitting is ideal for connecting those components seamlessly. -
High-Pressure Fluid/Gas Systems:
It is designed to handle high-pressure environments, so it's suitable for use in gas, hydraulic, or refrigeration systems where pressure integrity is crucial. -
Routine Maintenance:
If you need a fitting that can be easily disconnected for maintenance or replacement, the union design makes it ideal.
Conclusion:
The 3/8 BSP Female X 3/8 SAE Male Flare Union is a versatile, durable, and reliable fitting used to connect different threaded systems, especially in gas, water, and refrigeration applications. Its ability to adapt between BSP female and SAE male flare threads makes it a useful tool in a variety of systems, from automotive and industrial to residential plumbing and gas installations. Its leak-proof and secure connection ensures the efficient and safe operation of your system.
