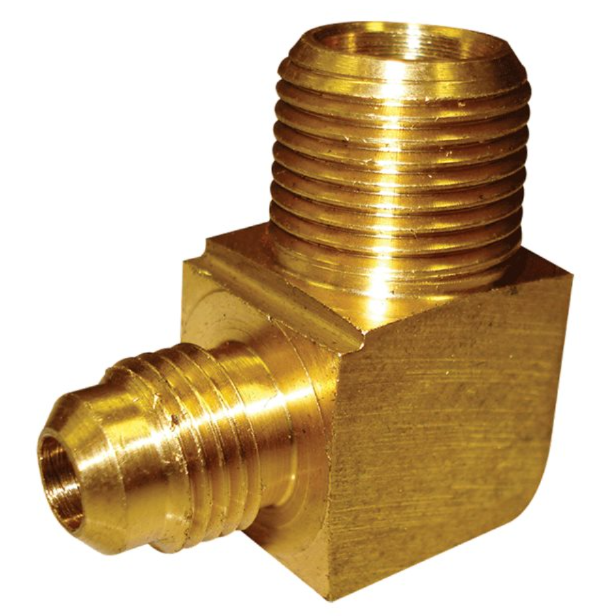

The 3/8 Male BSPT X 5/16 Male Flare Elbow is a specialized fitting used to connect pipes or hoses with different thread types in various systems, such as fluid, gas, and hydraulic systems.
BSPT (British Standard Pipe Tapered) Male Thread:
The BSPT thread is a tapered thread used primarily in gas and fluid systems. The taper allows for a tight seal when the male thread is screwed into a compatible female thread, preventing leaks. In this fitting, the 3/8 male BSPT thread is designed for applications requiring a strong, leak-proof seal, often in pressurized environments.
5/16 Male Flare Thread:
The 5/16 male flare thread is part of the SAE (Society of Automotive Engineers) flare family, designed for use in high-pressure fluid, gas, and refrigerant systems. It features a 45-degree flare for a tight, reliable seal and is commonly used in automotive, refrigeration, and hydraulic systems. The 5/16 size is commonly used for smaller connections.
Elbow Design:
The elbow fitting allows for a change in the direction of the piping or hoses, typically at a 90-degree angle. This is useful for creating more compact, flexible configurations in systems with limited space or when routing pipes around obstacles.
Gas Systems:
The BSPT to Flare Elbow is often used in LPG, natural gas, and propane installations. It can connect gas hoses, regulators, and other components where one part of the system has BSPT threads, and another requires SAE flare threads.
Automotive and Hydraulic Systems:
The 5/16 male flare thread is common in automotive and hydraulic applications. This elbow fitting allows for easy redirection of hoses or pipes in tight spaces, ensuring a secure, leak-free connection in high-pressure systems.
Refrigeration and HVAC Systems:
In HVAC and refrigeration systems, flare fittings are essential for connecting refrigerant lines. The 5/16 male flare allows for reliable connections between components like compressors, condensers, and evaporators. The BSPT male thread is used in certain components of these systems as well, making this fitting ideal for transitioning between these two thread types.
Plumbing Systems:
While less common, this fitting can be used in water plumbing systems where BSPT and flare threads are needed for specific connections.
Leak-Free Connection:
The BSPT male thread provides a tight seal, which, when combined with the flare design, ensures a secure, leak-free connection suitable for high-pressure applications.
Space-Saving:
The elbow design allows for flexible routing of pipes or hoses, making it ideal for compact or constrained spaces where straight connections would be impractical.
Versatility:
This fitting is useful in systems with both BSPT and flare thread components, offering a seamless connection between the two different thread types. It can be used across various industries, from gas and automotive systems to HVAC and refrigeration applications.
Durability:
Manufactured from high-quality materials such as brass, stainless steel, or zinc-plated steel, this fitting is designed to withstand exposure to chemicals, heat, and high-pressure environments, ensuring long-term reliability.
Changing Direction:
Use this fitting when you need to change the direction of a pipe or hose, typically at a 90-degree angle, in a system with BSPT and flare thread components.
Connecting BSPT and Flare Thread Systems:
When you have a system that requires transitioning from BSPT threads (typically used in gas systems) to flare threads (used in refrigeration, automotive, and hydraulic systems), this elbow fitting provides a convenient solution.
High-Pressure Systems:
Ideal for use in systems where both gas and fluid must be moved under pressure, ensuring a leak-proof, secure connection for reliable performance.
The 3/8 Male BSPT X 5/16 Male Flare Elbow is a versatile and reliable fitting used to change the direction of pipes or hoses while transitioning between BSPT and flare threads. It ensures leak-free operation and is commonly used in gas systems, automotive, hydraulic, and refrigeration systems, where a durable, secure connection is crucial. With its durable materials, ease of installation, and ability to save space in tight installations, this elbow fitting is an essential component for a wide range of applications.
SKU | 18919 |
$72.00
