Product Description

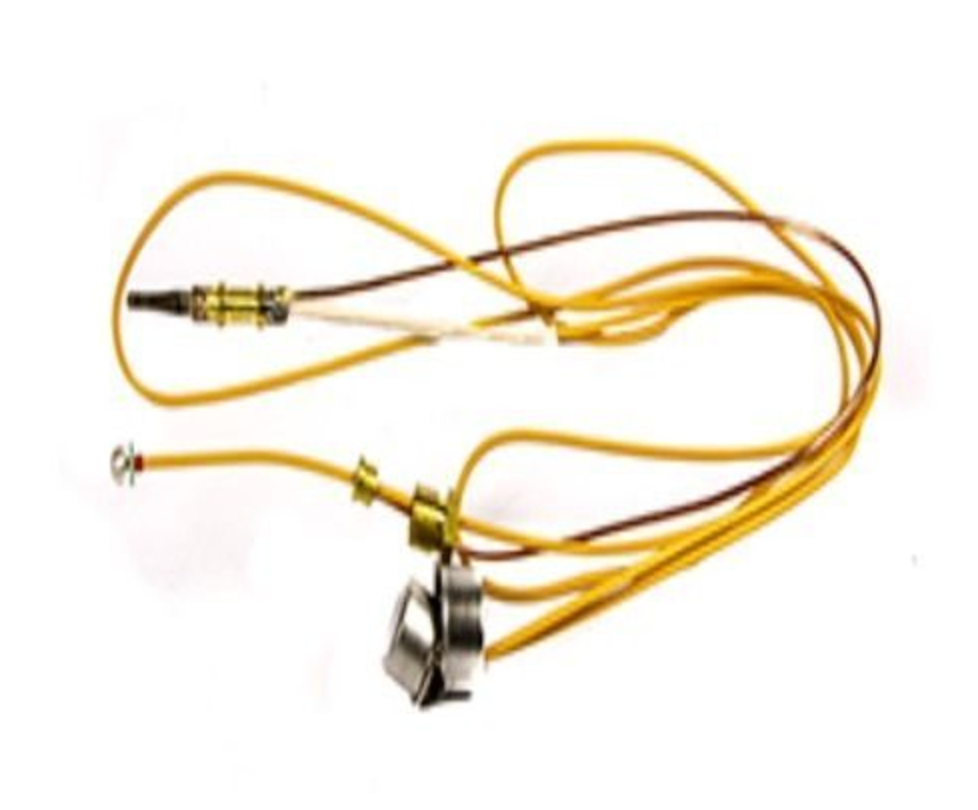

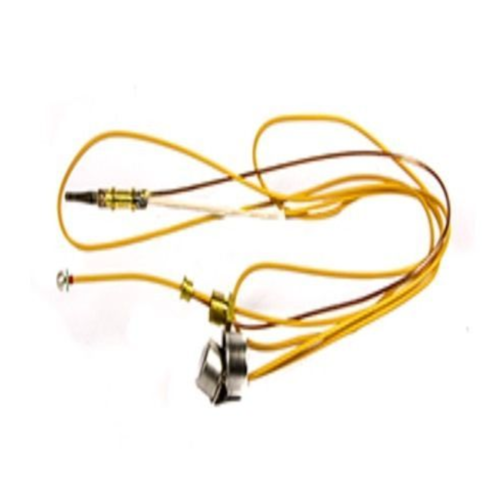

The Thermocouple and Overheat Switch for Rinnai 2001 Flame Sensor (Part# 90146762) is a key component used in Rinnai gas appliances, such as gas heaters or gas water heaters, to ensure safe and efficient operation. The part serves to monitor the flame and the temperature within the system, cutting off the gas supply if there is a fault, such as an overheat situation or flame failure.
Key Features of Thermocouple and Overheat Switch (Part# 90146762):
-
Thermocouple:
- The thermocouple is a safety device that senses the temperature of the flame. It generates a small voltage when heated by the flame, which signals the gas control valve to keep the gas supply on. If the flame goes out, the thermocouple stops generating voltage and cuts off the gas flow, preventing gas from leaking into the system.
- It is essential for flame sensing and safety, ensuring that gas is only supplied when there is an active flame present.
-
Overheat Switch:
- The overheat switch is another safety feature designed to cut off the gas flow if the appliance overheats. This protects the unit from potential damage due to high temperatures that could lead to dangerous conditions.
- This safety function helps to prevent fire hazards and damage to the appliance.
-
Flame Sensor:
- The flame sensor is an integral part of the system. It ensures that the flame is stable and continuously monitored. If the flame goes out or fails, the thermocouple signals to the gas valve to shut off the gas supply, preventing gas buildup and potential risks.
-
Compatibility:
- The 90146762 part number is specifically designed for use with Rinnai 2001 models (and similar units), such as gas water heaters or gas heaters. It’s important to ensure the part matches your appliance model for proper installation and function.
-
Functionality:
- Together, the thermocouple and overheat switch are essential components of the safety system in your gas appliance. They work in tandem to ensure that the gas flow is only active when there is a flame and the unit is not overheating, preventing potential risks and maintaining the proper functioning of the appliance.
Symptoms Indicating the Need for Replacement:
- Failure to Ignite: If the unit is not igniting or the flame goes out shortly after lighting, it could be a sign that the thermocouple is faulty and not detecting the flame properly.
- Overheating or Safety Shut-Off: If the appliance shuts off due to an overheat condition, the overheat switch may not be functioning properly and may need replacement.
- Continuous Gas Flow: If gas is still flowing despite the flame going out, it could be a sign that the thermocouple is malfunctioning and failing to cut off the gas supply.
