Product Description

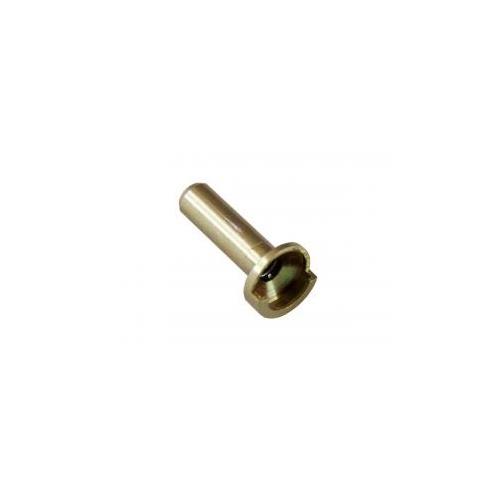

The Stellar 0.27mm Pilot Injector NG is a specific component used in gas-powered heating appliances, such as gas fireplaces, gas log fires, or other similar appliances. This part is primarily designed for natural gas (NG) systems, and it plays a crucial role in ensuring the proper operation of the pilot flame.
Key Features and Specifications:
-
Pilot Injector Size - 0.27mm:
- The 0.27mm measurement refers to the orifice size of the pilot injector. This size is critical as it controls the flow of natural gas to the pilot light. A correct-sized injector ensures that the right amount of gas is delivered to the pilot light, which is necessary for ignition and stable flame operation.
-
Natural Gas (NG) Compatibility:
- This injector is designed specifically for natural gas (NG) appliances. If you are using LPG (liquefied petroleum gas), a different size or type of injector may be required.
- The injector helps regulate the flow of natural gas to the pilot flame, ensuring that the flame is of the correct size and stability for the appliance's ignition system.
-
Pilot Flame Control:
- The pilot injector works in conjunction with the gas control valve and thermocouple to ensure that the pilot light maintains a stable and consistent flame. If the injector is clogged or damaged, it can lead to inconsistent ignition or failure to light the pilot, which could affect the overall operation of the gas appliance.
-
Durability and Performance:
- The injector is typically made from high-quality materials like brass or stainless steel, which ensures durability and resistance to wear and corrosion from the gas flow and combustion process.
-
Used in Gas Log Fires or Heaters:
- This pilot injector is commonly used in gas log fires, gas heaters, and other appliances that require a pilot flame to ignite the main burner. The stable operation of the pilot light is essential for reliable ignition and safe operation of the appliance.
Common Symptoms of a Faulty Pilot Injector:
If the Stellar 0.27mm Pilot Injector becomes clogged, worn out, or damaged, the following issues may occur:
-
Inconsistent or Weak Pilot Flame:
- If the injector is clogged or not functioning properly, the pilot flame may be too weak or inconsistent, making it difficult for the appliance to ignite.
-
Difficulty Igniting the Appliance:
- A faulty or clogged pilot injector can cause difficulties in lighting the appliance, as the flow of gas to the pilot light may be insufficient.
-
Frequent Pilot Light Extinguishing:
- If the pilot light continues to go out, even though the gas is flowing properly, the pilot injector might be the issue. A blockage or defect in the injector could cause the pilot to go out.
-
Unstable Flame:
- An injector that is too small or blocked can lead to an unstable flame, making the appliance unsafe or inefficient to use.
Installation and Replacement:
-
Turn Off the Gas and Power Supply:
- Before replacing the pilot injector, always ensure the gas supply to the appliance is turned off. Additionally, switch off the power if your appliance has electronic components.
-
Access the Pilot Assembly:
- Typically, the pilot injector is located within the pilot assembly of your appliance. Depending on the model, you may need to remove the front panel or other coverings to access the pilot light and injector.
-
Remove the Old Pilot Injector:
- Once you have access to the pilot assembly, carefully unscrew or remove the old pilot injector. You may need a wrench or specialized tool to remove it, depending on how it's installed.
-
Install the New Pilot Injector:
- Carefully install the new Stellar 0.27mm Pilot Injector into place, ensuring that it is securely connected to the gas line and the pilot assembly.
-
Test the Appliance:
- Once the new injector is installed, turn on the gas and power, then test the appliance to ensure the pilot light is functioning properly and that ignition is stable.
-
Check for Leaks:
- After installation, always check for any gas leaks around the injector and pilot assembly using a gas leak detector or soapy water.
