Product Description

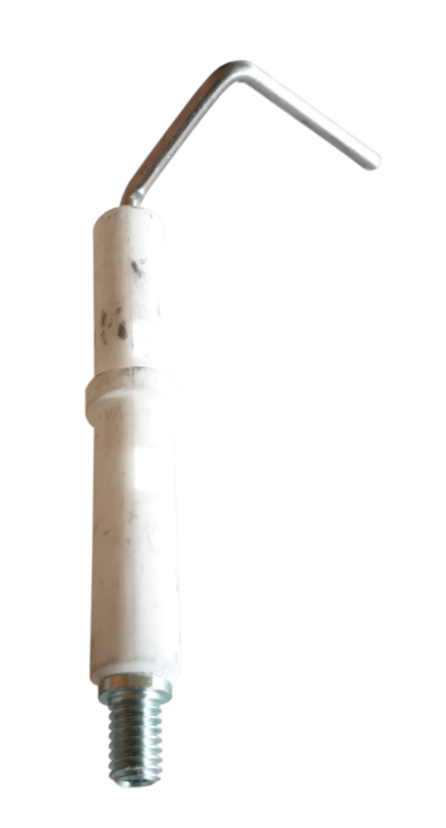

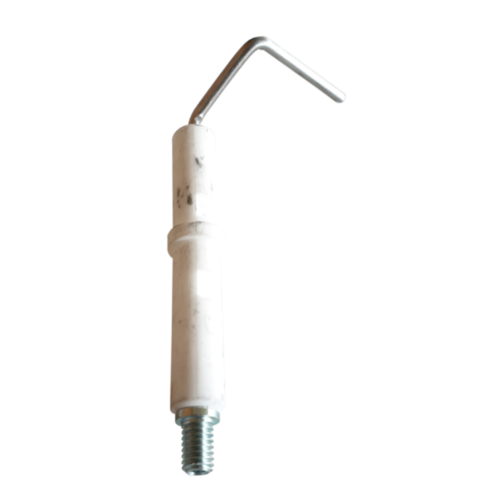

The Bonaire Pyrox Silhouette Gas Heater Igniter Flame Sensor is an essential safety and performance component in Bonaire Pyrox Silhouette gas heaters. It plays a vital role in the ignition and flame detection process, ensuring that the gas heater operates safely and efficiently.
Key Functions of the Bonaire Pyrox Silhouette Gas Heater Igniter Flame Sensor:
-
Ignition Control:
- The igniter is responsible for initiating the spark that ignites the gas in the burner assembly of the heater. It generates a spark when the gas is introduced to the combustion chamber, ensuring that the heater starts and runs properly.
-
Flame Detection:
- The flame sensor works in conjunction with the igniter. Once the gas is ignited, the flame sensor detects the presence of the flame. If the flame is not detected, it will send a signal to the control board to shut down the system, preventing gas from continuing to flow without ignition, which could be hazardous.
-
Safety Mechanism:
- The flame sensor is a critical safety feature. If the flame is not detected, it will interrupt the gas flow, preventing the risk of gas buildup and potential combustion issues. This helps to ensure that the heater operates safely and efficiently.
-
Continuous Monitoring:
- Throughout the heater's operation, the flame sensor continuously monitors the flame to ensure proper combustion. If the flame goes out unexpectedly, the sensor detects this and sends a signal to the control board to cut off the gas supply, protecting the system.
Benefits of the Bonaire Pyrox Silhouette Gas Heater Igniter Flame Sensor:
-
Enhanced Safety:
- The flame sensor ensures the safety of your gas heater by continuously monitoring the flame. If the flame is absent or unstable, it shuts down the system, preventing the release of unburned gas, which could lead to a dangerous buildup or potential gas leak.
-
Efficient Heating:
- By accurately detecting the presence of a flame, the flame sensor ensures that the gas heater only operates when the combustion process is stable. This results in optimal heating performance and energy efficiency, as the system adjusts its operation based on flame detection.
-
Prevents System Malfunctions:
- If the flame sensor is faulty or malfunctions, it can prevent the heater from igniting or cause the system to shut down prematurely. By replacing a faulty flame sensor, you can ensure your gas heater operates reliably, reducing the risk of breakdowns and malfunctions.
-
Longer Lifespan of Heater Components:
- By preventing unsafe combustion and excessive gas flow, the flame sensor helps to protect the internal components of your heater, such as the burner, heat exchanger, and control board, from potential damage. This can contribute to a longer lifespan for your entire heating system.
How to Install the Bonaire Pyrox Silhouette Gas Heater Igniter Flame Sensor:
-
Turn Off the Heater and Disconnect Power:
- Always ensure that the gas heater is turned off and that the power is disconnected before starting any maintenance or replacement. This is essential for safety during installation.
-
Locate the Flame Sensor:
- The flame sensor is typically located near the burner assembly or the igniter itself. To access it, you may need to remove the front panel or other components of the heater to expose the combustion chamber.
-
Disconnect the Wiring:
- The flame sensor will be connected to the control board via wiring. Carefully disconnect the wiring from the old sensor, taking note of the connections for proper reconnection with the new sensor.
-
Remove the Old Flame Sensor:
- The flame sensor is usually attached to the burner or combustion chamber with screws or clips. Use a screwdriver or appropriate tool to remove the sensor from its mounting.
-
Install the New Flame Sensor:
- Position the new Bonaire Pyrox Silhouette Gas Heater Igniter Flame Sensor in the same location as the old one. Secure it in place with screws or clips, ensuring that it is positioned correctly for flame detection.
-
Reconnect the Wiring:
- Reconnect the wiring to the new flame sensor, ensuring that the connections match those of the previous sensor. Double-check that the wiring is secure to prevent any loose connections that could interfere with the sensor’s operation.
-
Reassemble the Heater:
- Once the new sensor is installed and the wiring is connected, reassemble any components that were removed during installation. Ensure that all panels are securely closed and that the system is ready for operation.
-
Test the Heater:
- After reassembling the unit, reconnect the power and turn the heater on. Test the heater to ensure that the igniter and flame sensor are working properly. Check that the heater ignites without issue and that the flame is detected correctly. The system should operate smoothly without any error codes or safety shutdowns.
Common Signs of a Faulty Flame Sensor:
-
Failure to Ignite:
- If the heater does not ignite, the flame sensor could be faulty and not detecting the flame.
-
Intermittent Shutdowns:
- If the heater shuts down unexpectedly or the gas supply is cut off during operation, this may indicate that the flame sensor is detecting a flame issue or malfunctioning.
-
Error Codes:
- Some gas heaters display error codes related to ignition or flame detection issues. These codes may point to a malfunctioning flame sensor.
-
Flame Flickering or Going Out:
- If the flame is unstable or goes out unexpectedly, the flame sensor might not be detecting it properly, causing the system to shut down.
Conclusion:
The Bonaire Pyrox Silhouette Gas Heater Igniter Flame Sensor is a crucial component for the safe and efficient operation of your Bonaire gas heater. It ensures that the heater operates properly by detecting the flame and cutting off the gas supply in the event of a failure. Replacing a faulty flame sensor is essential to maintain safety, efficiency, and reliability in your heating system.
