Product Description

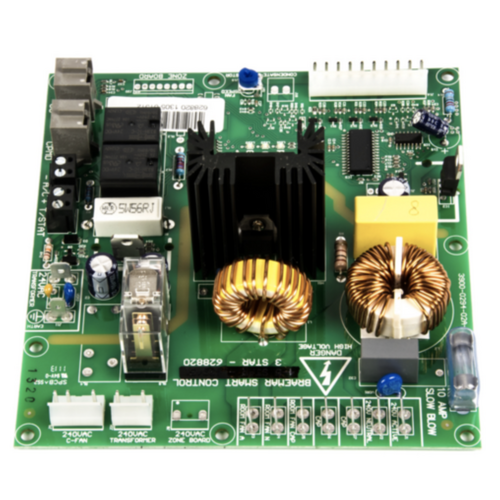

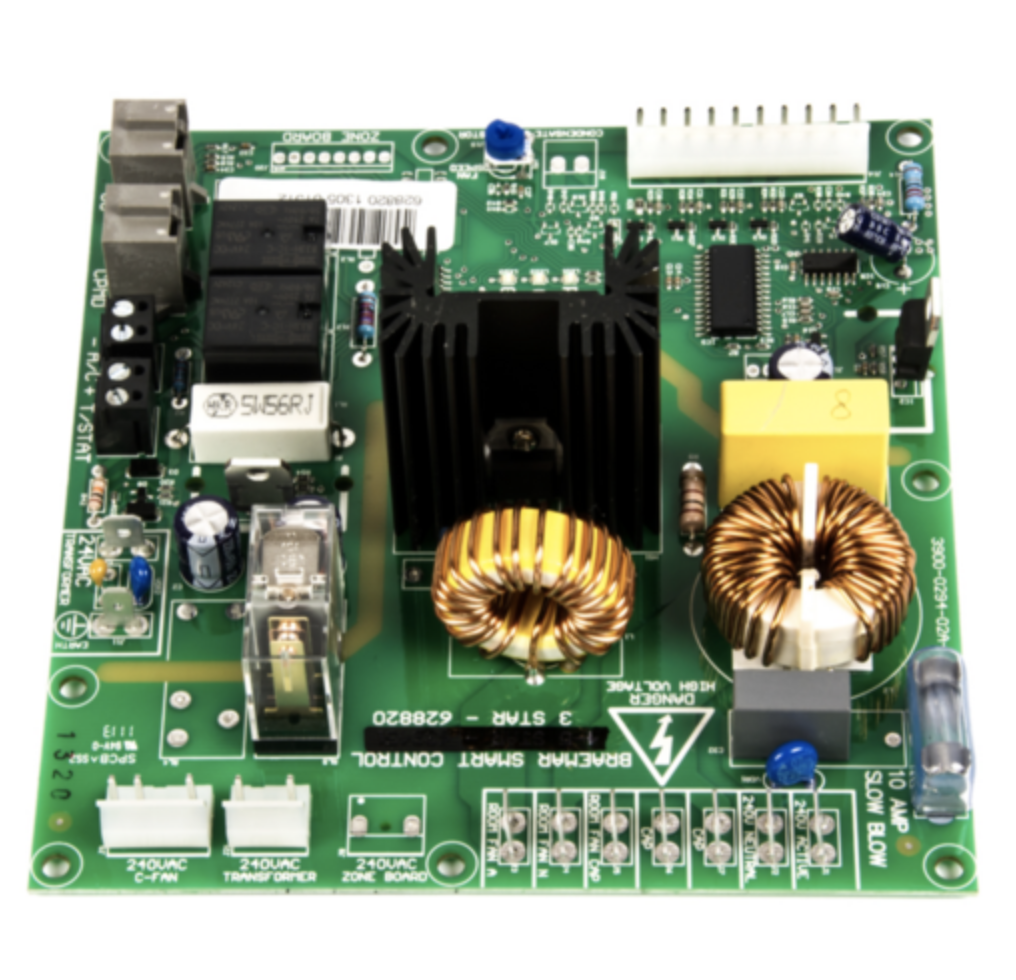

The Braemar BM 320 & X PCB Circuit Board BSC 3 Star Gas Ducted Heater PN. 628820 is an essential component in the Braemar BM 320 & X gas ducted heating systems, specifically designed to regulate and control the operation of the heater. The PCB (Printed Circuit Board) is the control center that ensures the safe and efficient functioning of the heater, coordinating various components such as the gas valve, blower fan, ignition system, and safety sensors.
Key Features and Functions:
-
Primary Role of the PCB:
- The PCB in the Braemar BM 320 & X system controls the electrical processes required to operate the heater. This includes managing the ignition sequence, the gas valve operation, the blower motor, and temperature regulation.
- The board processes data from various sensors (like temperature, pressure, or airflow sensors) and adjusts the operation of the system accordingly, ensuring it heats the space efficiently and safely.
-
Key Functions in the Heating System:
- Ignition Control: The PCB is responsible for initiating and monitoring the ignition process. It ensures that the gas valve opens at the right time, the igniter sparks, and the burner lights, allowing the heater to produce warmth.
- Safety Protocols: The PCB plays a vital role in monitoring safety conditions, ensuring the system operates without risk of gas buildup or overheating. If a fault is detected, such as an abnormal temperature reading or low airflow, the PCB can shut down the system to prevent damage or accidents.
- Temperature Management: The PCB also helps regulate the room temperature by controlling the operation of the heater. It adjusts the fan speed and burner operation to maintain the set temperature.
- Error Detection: The PCB includes diagnostics capabilities, meaning it can detect issues like faulty sensors, electrical faults, or other system malfunctions. If an issue is found, it often signals an error code through the control panel to alert the user.
-
Common Signs of a Faulty PCB:
- No Heat Output: The heater may fail to ignite or produce heat if the PCB is malfunctioning.
- Error Codes or Flashing Lights: The control panel may display an error code or flashing light pattern indicating a problem with the PCB. These codes can point to issues like sensor failures or communication problems.
- Inconsistent Heating: The heater may provide inconsistent temperatures or fail to reach the desired level if the PCB is not regulating the system properly.
- Failure to Start: If the PCB is damaged, the heater may fail to start at all, as it controls the ignition and fan functions.
- Automatic Shutdown: If the PCB detects a safety issue, it may automatically shut down the system to prevent further damage or potential hazards.
-
Replacement Considerations:
- Correct Part Number (PN. 628820): It’s important to use the exact part number PN. 628820 to ensure compatibility with your Braemar BM 320 & X gas ducted heater.
- Professional Installation: Given the complexity of electrical connections and system diagnostics, replacing a PCB should be handled by a qualified HVAC technician. Proper installation and wiring are crucial to ensure the system works safely and efficiently.
-
Installation Process:
- Power Off: Before starting any work, ensure the power and gas supply to the system are turned off to avoid electrical shock or gas leaks.
- Access the PCB: Open the front or access panel of the heater to reveal the existing PCB. You may need to remove screws or other fasteners to access the board.
- Disconnect the Old PCB: Carefully disconnect the wires and components connected to the faulty PCB. It's advisable to take notes or photographs of the wiring connections for reference during reinstallation.
- Install the New PCB: Mount the replacement PN. 628820 PCB in the same position as the original. Make sure it is securely attached to avoid electrical or mechanical issues.
- Reconnect Wiring: Reconnect all the electrical wiring and components to the new PCB according to the original configuration. Ensure that all connections are tight and secure.
- Test the System: Once the new PCB is installed, restore power to the system and test the heater. Check that it ignites, the blower motor operates correctly, and the temperature is maintained as expected.
-
Maintenance Tips:
- Regular System Checkups: Periodically check the performance of your Braemar BM 320 & X gas heater to ensure it is functioning correctly. Look for any signs of malfunction, such as unusual noises, inconsistent heating, or failure to ignite.
- Clean the Heater: Keeping the heater clean can reduce strain on the system and prevent dirt or dust buildup, which can cause overheating or block airflow, affecting the operation of the PCB and other components.
- Professional Servicing: It is recommended to have the system serviced by a qualified technician once a year. This will allow them to check the functionality of the PCB and other components, ensuring optimal and safe operation.
Conclusion:
The Braemar BM 320 & X PCB Circuit Board BSC 3 Star Gas Ducted Heater PN. 628820 is an essential part of your gas ducted heating system, controlling key operations such as ignition, temperature regulation, and safety protocols. A faulty PCB can lead to issues like no heat, inconsistent temperatures, or system shutdowns.
If you suspect a problem with the PCB, it's important to replace it with the correct part number PN. 628820. Professional installation is recommended to ensure the system operates safely and efficiently.
