Product Description

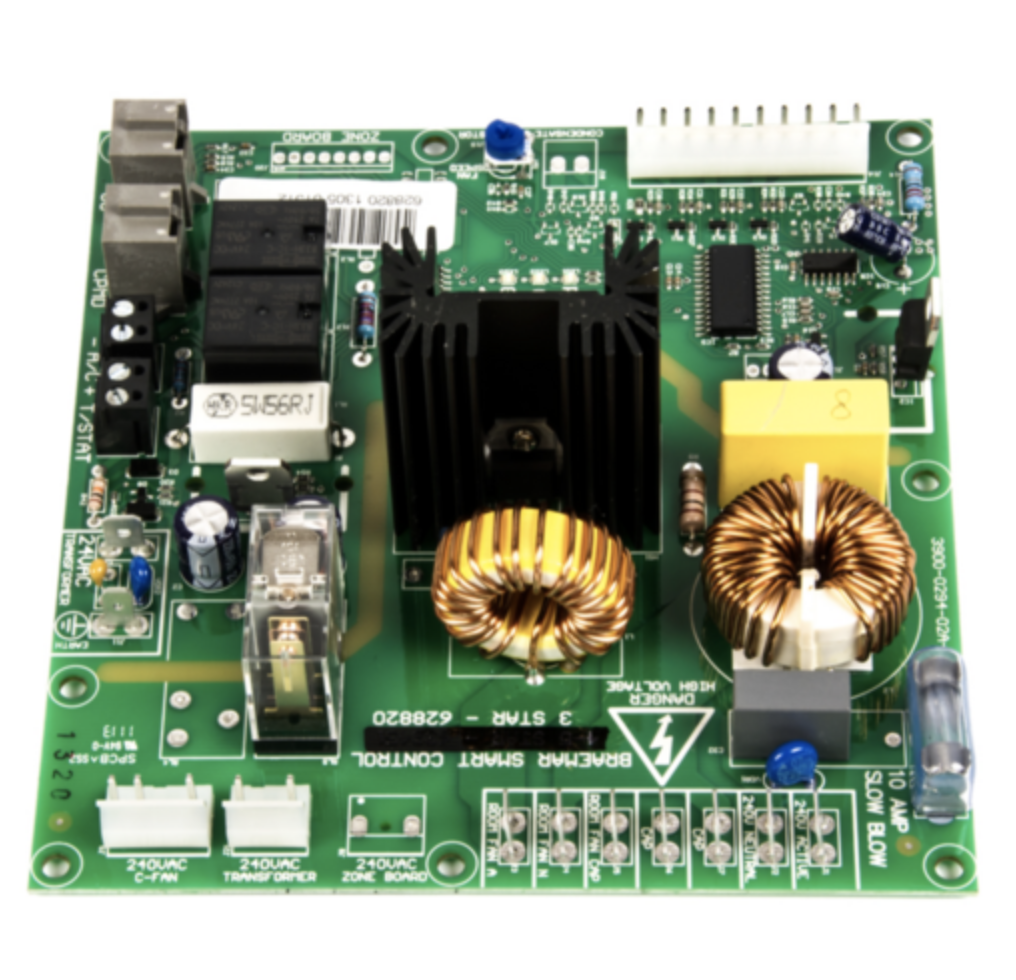

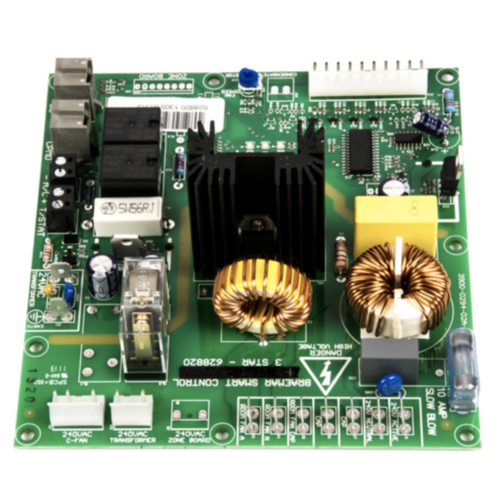

The Braemar BM 330 & X PCB Circuit Board BSC 3 Star Gas Ducted Heater PN. 628820 is a vital component in the Braemar BM 330 & X gas ducted heating system, responsible for controlling the entire operation of the heater. The PCB (Printed Circuit Board) ensures that all the heater’s electrical processes, including ignition, temperature regulation, and safety monitoring, are functioning properly.
Key Features and Functions of the PCB:
-
Primary Role of the PCB:
- The PCB acts as the brain of the heater, managing various components like the gas valve, blower motor, ignition system, and temperature sensors.
- It ensures that the heater ignites properly, maintains the desired temperature, and safely shuts down in case of any issues, preventing malfunctions or potential hazards.
-
Key Functions:
- Ignition Control: The PCB ensures that the ignition sequence is properly initiated by controlling the timing of the gas valve opening and the spark from the igniter. This allows the heater to safely start and begin heating.
- Temperature Management: The PCB works by adjusting the blower motor speed and regulating the burner operation to achieve and maintain the set room temperature.
- Safety Features: It constantly monitors safety parameters like airflow, gas pressure, and temperature. If any of these parameters go outside of safe operating conditions, the PCB can shut down the system to prevent damage or dangerous situations (such as overheating or gas leaks).
- Error Detection and Diagnostics: The PCB can detect faults within the system, including issues with sensors, the blower motor, or gas components. It typically signals error codes via the control panel or display, helping identify the specific malfunction.
-
Signs of a Faulty PCB:
- No Heat or Delayed Heating: A faulty PCB may prevent the heater from igniting or causing delays in ignition, resulting in no heat being produced.
- Flashing Error Codes or Lights: If the system detects a problem, the control panel may display error codes or flash lights to signal issues like a malfunctioning sensor or a communication error between components.
- Inconsistent Temperature: A malfunctioning PCB can lead to inconsistent heating, where the heater may not reach the desired temperature or may turn off unexpectedly.
- Failure to Start: If the PCB is not functioning, the heater will not start, as it controls the ignition and operation sequence.
- System Shutdowns: A damaged PCB can cause the system to shut down automatically as a safety measure, especially if it detects a critical issue.
-
Replacement Considerations:
- Correct Part Number (PN. 628820): It's important to replace the faulty PCB with the correct part number PN. 628820 to ensure compatibility with the Braemar BM 330 & X model. Using an incorrect PCB may result in improper functioning or failure of the heating system.
- Professional Installation: Replacing the PCB requires knowledge of the system's electrical components, so it’s recommended to have a licensed HVAC technician carry out the replacement. This ensures safe installation and proper configuration.
-
Installation Process:
- Turn Off Power and Gas: Before starting the installation, ensure that both the gas and power to the unit are turned off. This is crucial for safety and to prevent electrical or gas hazards.
- Access the PCB: Open the front or side panel of the heater to locate the existing PCB. Depending on the design, you may need to remove screws or panels to gain access to the board.
- Disconnect the Old PCB: Carefully disconnect the wiring from the old PCB. Take note of the wire configurations, or photograph them, to ensure the new PCB is wired correctly.
- Install the New PCB: Mount the new PN. 628820 PCB in the same position as the original. Secure it to the mounting points to ensure proper installation.
- Reconnect the Wiring: Reconnect the wires to the new PCB as per the original configuration, ensuring all connections are tight and secure.
- Test the System: Once everything is connected, restore the power and gas supply. Test the system to ensure that the heater operates correctly, the ignition sequence works, and the temperature regulation is functioning.
-
Maintenance Tips:
- Regular Servicing: Schedule annual maintenance for your Braemar BM 330 & X gas ducted heater to ensure all components, including the PCB, are functioning correctly. Regular checks can help prevent breakdowns and improve efficiency.
- Cleaning: Keep the heater clean by removing dust and debris that could obstruct airflow or cause overheating. A clean system is more efficient and puts less strain on the PCB.
- Monitor for Errors: Pay attention to any error codes or flashing lights that may appear on the control panel. These can indicate problems with the PCB or other components that may need to be addressed before they cause a more serious issue.
Conclusion:
The Braemar BM 330 & X PCB Circuit Board BSC 3 Star Gas Ducted Heater PN. 628820 plays a critical role in the operation of your gas ducted heating system, controlling key functions such as ignition, temperature regulation, and safety. A malfunctioning PCB can lead to issues like no heat, inconsistent heating, or system shutdowns.
If you suspect a problem with your PCB, it’s crucial to replace it with the correct part number PN. 628820. Professional installation is recommended to ensure the system operates safely and efficiently.
