Braemar THM 623 & X Combustion Fan Assembly Small Ducted Gas Heater PN. 641638

Description
Specifications

Product Description

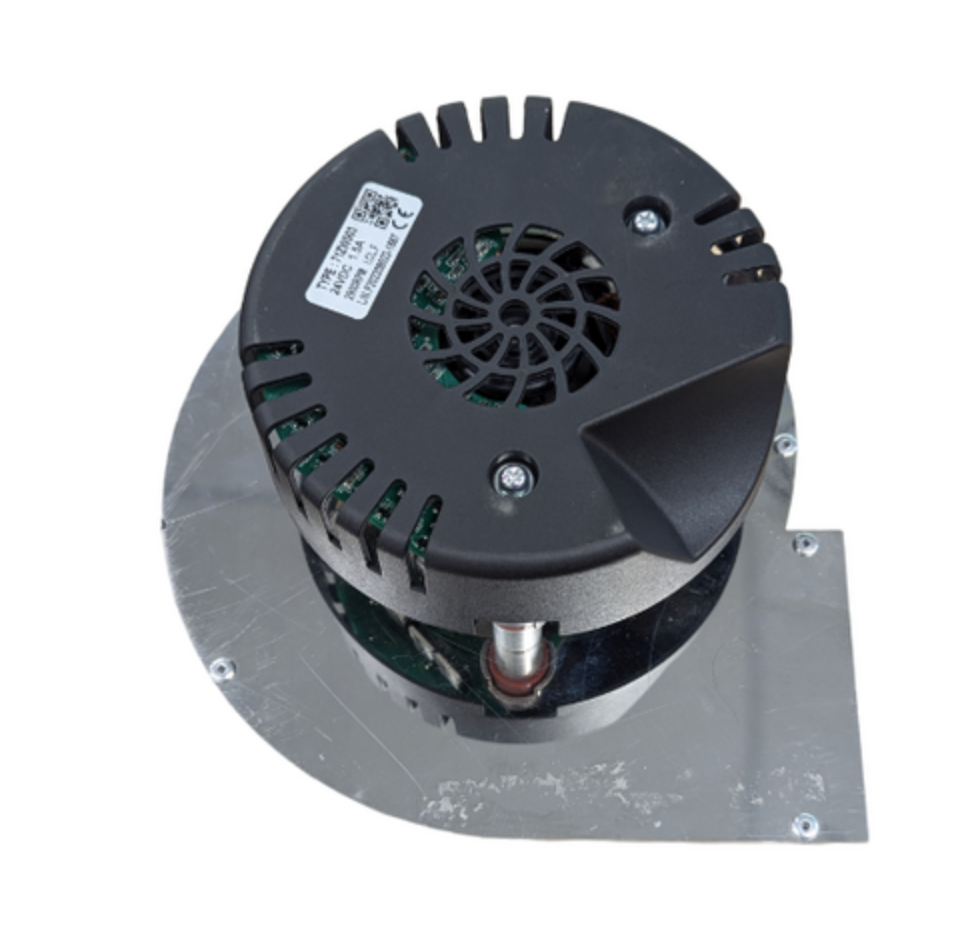

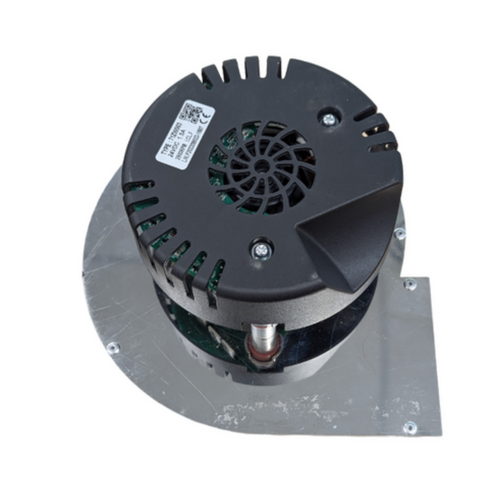

The Braemar THM 623 & X Combustion Fan Assembly for Small Ducted Gas Heaters (part number PN. 641638) is a critical component in maintaining the safe and efficient operation of these heating systems. It plays an essential role in ensuring that the combustion process in the gas heater is optimized, and that exhaust gases are safely vented from the system. Here's an in-depth overview of the fan assembly:

Key Features and Functions:

Combustion Air Supply: The combustion fan assembly provides the necessary airflow to the burner in the gas heater. This ensures that the gas is properly mixed with oxygen to facilitate efficient combustion, which is crucial for optimal heat output and fuel efficiency.
Exhaust Venting: In addition to supplying combustion air, the fan assembly also aids in expelling the exhaust gases produced during combustion. This is essential for safe heater operation, as it ensures that harmful gases (such as carbon monoxide) are vented safely out of the system, reducing any risk of hazardous buildup inside the unit.
Motorized Operation: The fan is driven by a motor that powers the blades to move the air into the combustion chamber and expel exhaust gases. The motor is designed for energy-efficient operation and typically runs quietly, ensuring that the heater operates smoothly and with minimal noise.
Durable Materials: The combustion fan assembly is built from heat-resistant, durable materials designed to withstand the high temperatures associated with combustion. This durability ensures that the fan assembly remains functional over time, even under the stress of constant operation.
Compact and Efficient Design: As part of a small ducted gas heater, the fan assembly is designed to be compact and fit seamlessly into the heater unit. This allows it to perform its functions efficiently without taking up unnecessary space inside the heater, which is ideal for maintaining the overall compactness of the system.
Optimized Heat Output: With the proper airflow provided by the combustion fan, the Braemar THM 623 & X heater can achieve the right balance of fuel and air, leading to more efficient combustion. This results in improved heat output and energy efficiency, reducing fuel consumption and lowering heating costs.
Safety and Efficiency: Properly functioning combustion fans ensure that the heater operates within safe parameters. A malfunctioning fan could lead to inefficient combustion, overheating, or even the accumulation of dangerous gases. The fan helps the system meet safety standards while optimizing heating performance.

How the Combustion Fan Assembly Works:

The combustion fan assembly operates in tandem with the burner and exhaust systems of the heater. Here’s how it works:

Combustion Air Intake: The fan draws air into the combustion chamber, where it mixes with the gas. This air-gas mixture is crucial for proper combustion, which in turn powers the heater and produces heat for the space being served.
Exhaust Gas Ventilation: After the gas is burned, the fan helps expel the resulting exhaust gases (including carbon dioxide and water vapor) safely out of the system, ensuring no dangerous buildup of gases inside the unit. This helps keep the air inside the home or building safe and breathable.
Continuous Airflow Control: The combustion fan ensures that a consistent and controlled airflow is maintained throughout the combustion process. This helps optimize the heater’s efficiency by ensuring the burner has enough air to maintain a steady and clean flame.
Safety Function: If the combustion fan were to malfunction, it could cause poor combustion, resulting in the production of excess carbon monoxide or inefficient heating. Therefore, it is essential that the fan operates reliably to maintain safety.

Maintenance and Troubleshooting:

Regular Inspection: Periodically inspect the combustion fan assembly for signs of wear, damage, or debris buildup. Dust and dirt can impede airflow, and any damage to the fan blades or motor could lead to poor performance.
Cleaning: Dust and debris can accumulate on the fan blades and around the motor, reducing efficiency. Make sure the fan blades are kept clean by gently wiping them with a soft cloth. Be sure to turn off the gas and electricity supply before cleaning.
Motor Inspection: The motor should be checked for signs of wear. If the motor sounds strained, is running loudly, or has lost its efficiency, it may need lubrication or replacement. Also, check the fan blades for any cracks or signs of damage that could affect performance.
Airflow Checks: Ensure that there are no blockages in the combustion air intake or exhaust vent. Blockages can lead to reduced airflow, causing inefficient combustion or unsafe conditions.
Replace if Malfunctioning: If the fan is making excessive noise, showing signs of failure, or causing performance issues, it may need to be replaced. Always use the correct part number (PN. 641638) to ensure compatibility with your Braemar THM 623 & X heater.

Replacing the Combustion Fan Assembly:

If the combustion fan assembly (PN. 641638) needs to be replaced, follow these steps for a proper and safe replacement:

Turn Off Power and Gas Supply: Always ensure that both the power and gas supplies are turned off before starting any work on the heater.
Access the Fan Assembly: Consult your Braemar THM 623 & X user manual for instructions on accessing the combustion fan assembly. You will likely need to remove the cover or panels to expose the fan assembly.
Disconnect Electrical and Gas Connections: Disconnect any electrical wiring and gas connections to the fan assembly. Make sure to note where the wires and connections go to ensure correct reinstallation.
Remove the Old Fan Assembly: Carefully remove the old combustion fan assembly by loosening any fasteners or screws. Make sure not to damage any surrounding components during the removal process.
Install the New Fan Assembly: Place the new combustion fan assembly (PN. 641638) into position and secure it with screws or fasteners. Reconnect any electrical and gas connections as per the instructions in the user manual.
Test the Heater: Once the new fan assembly is installed, turn the power and gas supply back on and test the heater. Make sure the combustion fan is running smoothly and that the heater is operating correctly.

Conclusion:

The Braemar THM 623 & X Combustion Fan Assembly (PN. 641638) is an essential component for ensuring that your small ducted gas heater operates efficiently, safely, and effectively. Proper maintenance and timely replacement of the fan assembly help maintain optimal heater performance, improve energy efficiency, and ensure a safe heating environment.
