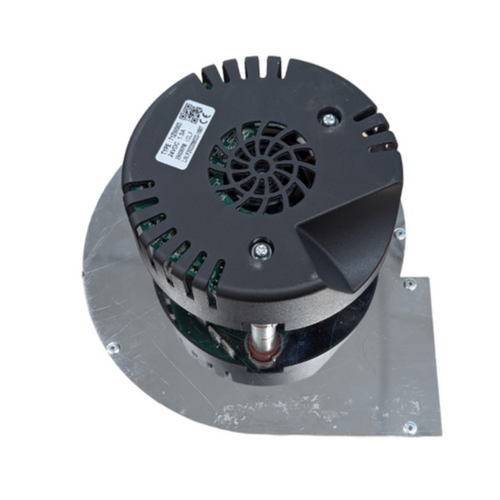

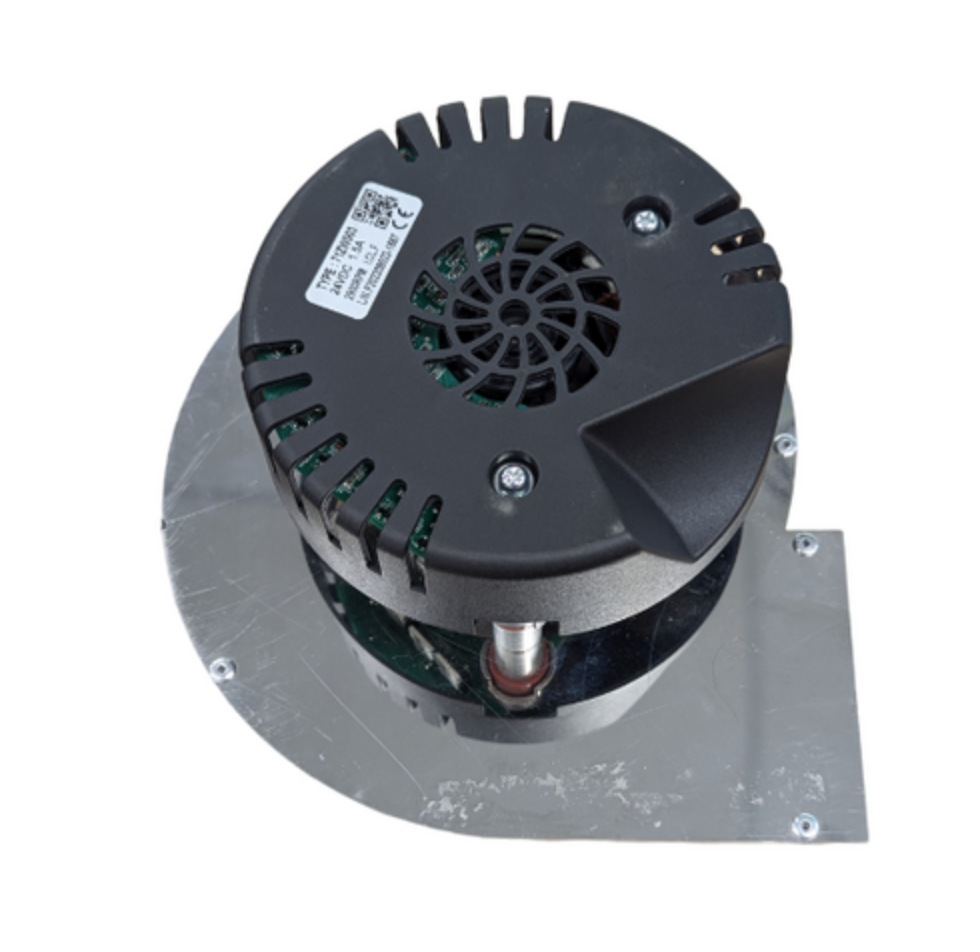

The Braemar TQM 623 & X Combustion Fan Assembly is an essential component of Braemar's Small Ducted Gas Heater. This assembly plays a key role in ensuring the proper operation of the gas heater by providing the necessary airflow to support the combustion process.
Here’s a detailed description of its features and function:
Combustion Airflow: The combustion fan is responsible for supplying air to the burner assembly. This ensures that the gas is properly combusted in the heater, which is crucial for efficiency and safety.
Compatibility: It is designed specifically for the Braemar TQM 623 & X models, ensuring it integrates well with these particular gas heater units. The fan assembly is typically engineered to work with the small ducted system, making it an ideal replacement or repair part for these models.
Part Number: The part number for this assembly is PN. 641638, which helps in identifying the correct fan for replacement purposes or when ordering from a supplier.
Material and Build: These fan assemblies are usually built with durable materials that can withstand the heat and wear from the combustion process. The fan blades are designed for efficiency and longevity, typically made from high-quality metals or composites that resist corrosion.
Motor Integration: The assembly includes an electric motor that powers the fan blades. This motor is usually designed to run quietly and efficiently, optimizing energy consumption while delivering the right amount of airflow for combustion.
Safety and Performance: The combustion fan is designed to operate in coordination with the heater’s safety features. It ensures that the heater works within safe pressure and airflow levels, preventing overheating, incomplete combustion, or gas buildup.
Size and Dimensions: Being part of a small ducted gas heater, the fan assembly is compact in size, which allows it to fit inside the heater unit and work in harmony with the rest of the system. However, exact measurements may vary based on model variations.
Efficient Heat Output: With the correct airflow from the combustion fan, the gas heater can produce a more consistent and efficient heat output, making it ideal for residential or commercial use in smaller spaces.
The combustion fan works to circulate air to the burner, ensuring the correct fuel-air mixture for combustion. It also helps expel exhaust gases out of the system after combustion, maintaining a safe and efficient operation of the heater.
Like any component of a gas heater, the combustion fan requires periodic maintenance. It should be checked for dust buildup, wear on the fan blades, and motor functionality to ensure it is operating at full capacity. Any malfunction in the combustion fan can lead to poor performance, unsafe conditions, or even system failure, so regular inspections are critical.
When replacing the combustion fan assembly (PN. 641638), it's important to use the correct part number to ensure compatibility with your Braemar TQM 623 & X heater. Always consult the user manual or a certified technician to avoid installation errors.
SKU | 19956 |
Brand | Braemar |
