Product Description

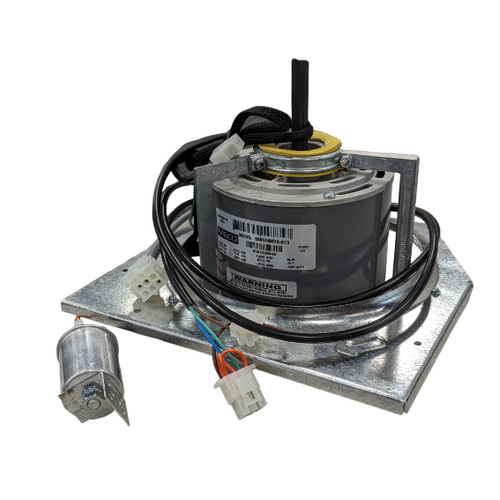

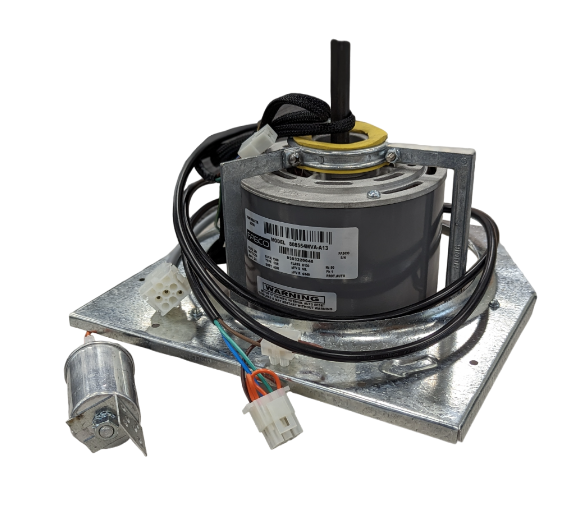

The Brivis Star Pro SP630 E XA Gas Ducted Heater Blower Fan Motor Plate & Capacitor 650 Watt PN. B016072 is a crucial part of the Brivis Star Pro SP630 E XA gas ducted heating system. It is responsible for powering the blower fan, which circulates the heated air throughout your home or space, providing efficient and consistent heating. This part ensures that the system operates smoothly, helping the heater deliver optimal performance.
Key Features and Functions of the Blower Fan Motor Plate & Capacitor:
-
Blower Fan Motor Plate:
- The blower fan motor plate serves as the housing and mounting platform for the blower motor. It ensures the motor is securely positioned and functions without interference.
- The motor plate helps to reduce vibrations and noise that can occur during operation, contributing to the overall efficiency and quietness of the heating system.
-
Blower Fan Motor:
- The blower fan motor is a 650-watt motor that powers the fan blades, which are responsible for moving the heated air from the furnace into the ducts.
- The high wattage ensures that the motor is strong enough to move a significant volume of air, which is important for larger or more complex heating systems like the Brivis Star Pro SP630 E XA.
-
Capacitor:
- The capacitor works in conjunction with the blower motor to provide the necessary electrical charge to start and operate the motor. It helps ensure smooth and reliable motor operation, particularly at startup.
- Without a properly functioning capacitor, the motor may fail to start or may run inefficiently, leading to poor air circulation and reduced heating performance.
-
Compatibility:
- This blower fan motor plate and capacitor assembly is specifically designed for the Brivis Star Pro SP630 E XA gas ducted heater, ensuring full compatibility and optimal performance.
- The part number PN. B016072 should be used to ensure you are replacing the existing motor plate and capacitor with the correct component for your system.
-
Signs of a Faulty Blower Fan Motor Plate & Capacitor:
- No Airflow: A common sign of a faulty motor or capacitor is the absence of airflow from the heating vents. If the motor isn't functioning, the blower fan won't turn on, and no air will be circulated.
- Inconsistent Heating: If the motor is struggling or not running at full power, you may experience inconsistent heating or reduced air circulation, resulting in uneven temperatures in your home.
- Strange Noises: A damaged motor, motor plate, or capacitor can cause unusual noises such as grinding, squealing, or buzzing. These noises indicate that there is a mechanical or electrical issue that requires attention.
- Failure to Start: If the capacitor is faulty, the blower fan motor might not start, or it could have difficulty starting up. This can lead to the system not functioning properly, especially at the beginning of the heating season.
- Motor Overheating: If the capacitor isn't functioning correctly, the motor may overheat and shut down, potentially causing damage to other components.
-
Replacement Considerations:
- Correct Part Number (PN. B016072): It is essential to use the correct replacement part number, PN. B016072, for your Brivis Star Pro SP630 E XA model. Using an incompatible part could lead to improper function or even system failure.
- Professional Installation: Replacing the blower fan motor plate and capacitor requires electrical expertise and knowledge of HVAC systems. It is strongly recommended to have a licensed HVAC technician handle the installation to ensure it is done correctly and safely.
-
Installation Process:
- Turn Off Power and Gas: For safety, ensure that both the power to the unit and the gas supply are turned off before starting any work on the system.
- Access the Blower Fan Motor Assembly: Open the relevant panels of the heater to access the motor and capacitor. Depending on the model, this may involve removing screws, panels, or protective covers.
- Remove the Old Components: Carefully disconnect the wiring and any mounting screws that hold the old motor plate and capacitor in place. Keep track of how the components are connected, either by making notes or taking a photo.
- Install the New Blower Fan Motor Plate & Capacitor: Position the new Blower Fan Motor Plate & Capacitor securely and make sure the motor is correctly aligned and mounted.
- Reconnect the Wiring: Attach the wiring to the new motor and capacitor, ensuring each connection is tight and secure.
- Test the Heater: After installation, restore the power and gas supply to the system. Test the heater to make sure the blower motor is running correctly, producing proper airflow and heating the space as intended.
-
Maintenance Tips:
- Regular Inspection: Periodically check the blower fan motor and capacitor for signs of wear or malfunction. This can help prevent larger issues from developing and ensure that the heating system operates smoothly.
- Clean the Blower Fan: Dust and debris can accumulate on the fan blades and motor, reducing airflow and causing the system to work harder. Clean the fan and motor regularly to maintain efficient operation.
- Annual Servicing: Schedule annual servicing for your Brivis Star Pro SP630 E XA heater to have the blower fan motor and capacitor, along with other components, inspected. This proactive approach helps extend the life of the system and ensures it runs at peak performance.
Conclusion:
The Brivis Star Pro SP630 E XA Gas Ducted Heater Blower Fan Motor Plate & Capacitor 650 Watt PN. B016072 is essential for the proper operation of your heating system. It powers the blower fan, ensuring efficient air circulation and consistent heating performance. If you notice issues like no airflow, inconsistent heating, or strange noises, the motor plate or capacitor may need to be replaced. Always use the correct part number and consider professional installation to ensure the system operates safely and efficiently.
