Product Description

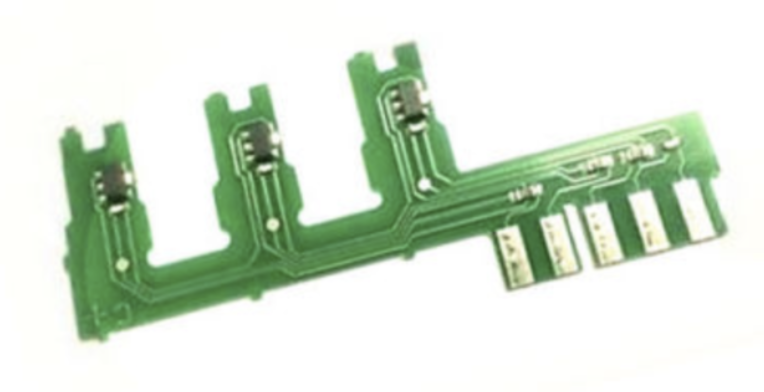

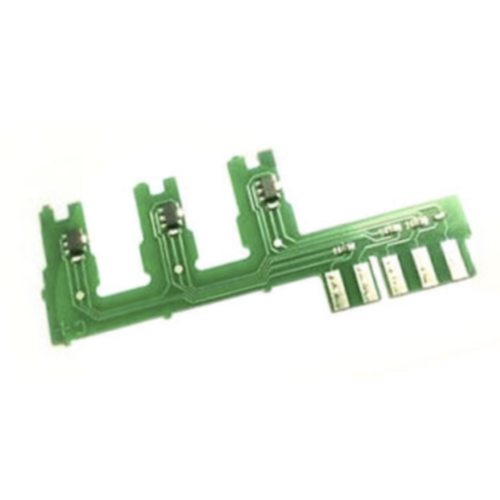

The Fisher & Paykel 420296P Top Load Position Sensor is a replacement part designed for use in Fisher & Paykel Top Load Washing Machines. The position sensor is a key component in the machine's SmartDrive system, which is known for its efficient and reliable performance. The position sensor works in tandem with the motor to track the position and rotation of the drum during the washing cycle.
Key Features of the Fisher & Paykel 420296P Top Load Position Sensor:
-
Compatibility:
- The 420296P position sensor is designed for Fisher & Paykel Top Load Washing Machines, particularly those that use the SmartDrive technology.
- Before purchasing, ensure that this specific part number is compatible with your washing machine model. The SmartDrive technology is featured in many of Fisher & Paykel's top-load washers, but it’s important to double-check compatibility with your particular unit.
-
Function:
- The primary role of the position sensor is to accurately track the position of the agitator or drum during the wash cycle. It sends signals to the washing machine’s control board to inform it of the drum's location.
- This data helps the washer determine the correct motor speed, direction, and timing for different stages of the washing cycle, including washing, rinsing, and spinning.
-
Smooth Cycle Operation:
- The position sensor ensures that the washing machine operates smoothly, helping with precise motor control and efficient use of water and detergent.
- By knowing the drum's position, the washer can adjust to different load sizes, improving wash performance and preventing damage to the motor.
-
Location:
- The position sensor is typically located near or attached to the motor assembly of the washing machine. It tracks the drum’s movement and reports back to the control system, helping the machine adjust to optimal washing conditions.
-
Symptoms of a Faulty Position Sensor: If the position sensor is faulty, you may experience:
- Unusual or inconsistent washing cycles: The washer may fail to detect the drum’s position and may not progress through the cycles properly.
- Error codes: The washing machine’s control board may display error codes related to the motor or position sensor, indicating a malfunction.
- Inability to spin or agitate: The washing machine may fail to start or may get stuck at certain points in the cycle, especially during the washing or spinning phases.
- Motor errors or strange noises: The machine may produce abnormal sounds if the motor is trying to operate without accurate feedback from the position sensor.
-
Durability:
- Fisher & Paykel position sensors like the 420296P are built to be durable and designed to last throughout the lifespan of the washing machine, provided the machine is properly maintained.
- Over time, however, exposure to vibrations, water, and detergent can cause wear, leading to the need for replacement.
Installation:
Replacing the Fisher & Paykel 420296P Position Sensor typically involves accessing the motor and control components of the washing machine. Here's a general outline of the steps for replacing the sensor:
- Unplug the Washing Machine: For safety, always disconnect the appliance from the power source before starting any repairs.
- Access the Motor Assembly: Depending on your washing machine model, you may need to remove the top panel or back panel to access the motor and position sensor.
- Locate the Sensor: The sensor is usually attached to or near the motor. Carefully remove any screws or fasteners securing the old position sensor.
- Disconnect the Old Sensor: Disconnect the wiring from the old position sensor. Take note of how the wiring is connected for easier installation of the new part.
- Install the New Sensor: Place the Fisher & Paykel 420296P position sensor in the same location, ensuring that it is securely attached. Connect the wiring as it was with the old sensor.
- Reassemble the Washing Machine: Once the new sensor is in place and connected, reassemble any panels or covers you removed.
- Test the Machine: Plug the machine back in and run a short cycle to ensure that the washing machine operates correctly with the new position sensor.
Considerations:
- Correct Part Number: Always verify the part number (420296P) and ensure compatibility with your specific Fisher & Paykel Top Load model.
- Professional Help: If you’re not familiar with appliance repair or motor-related components, it’s a good idea to have the position sensor replaced by a professional technician.
- Wiring Connections: Be cautious when disconnecting and reconnecting the wiring to avoid any damage or incorrect connections.
Summary:
- Part Number: 420296P
- Compatibility: Designed for Fisher & Paykel Top Load SmartDrive Washing Machines
- Function: Tracks the position of the drum to ensure accurate motor control for washing, rinsing, and spinning cycles.
- Symptoms of a Faulty Sensor: Error codes, inconsistent cycles, failure to spin/agitate, or abnormal motor noises.
- Installation: Replacement involves accessing the motor assembly, disconnecting the old sensor, and installing the new one.
