Product Description

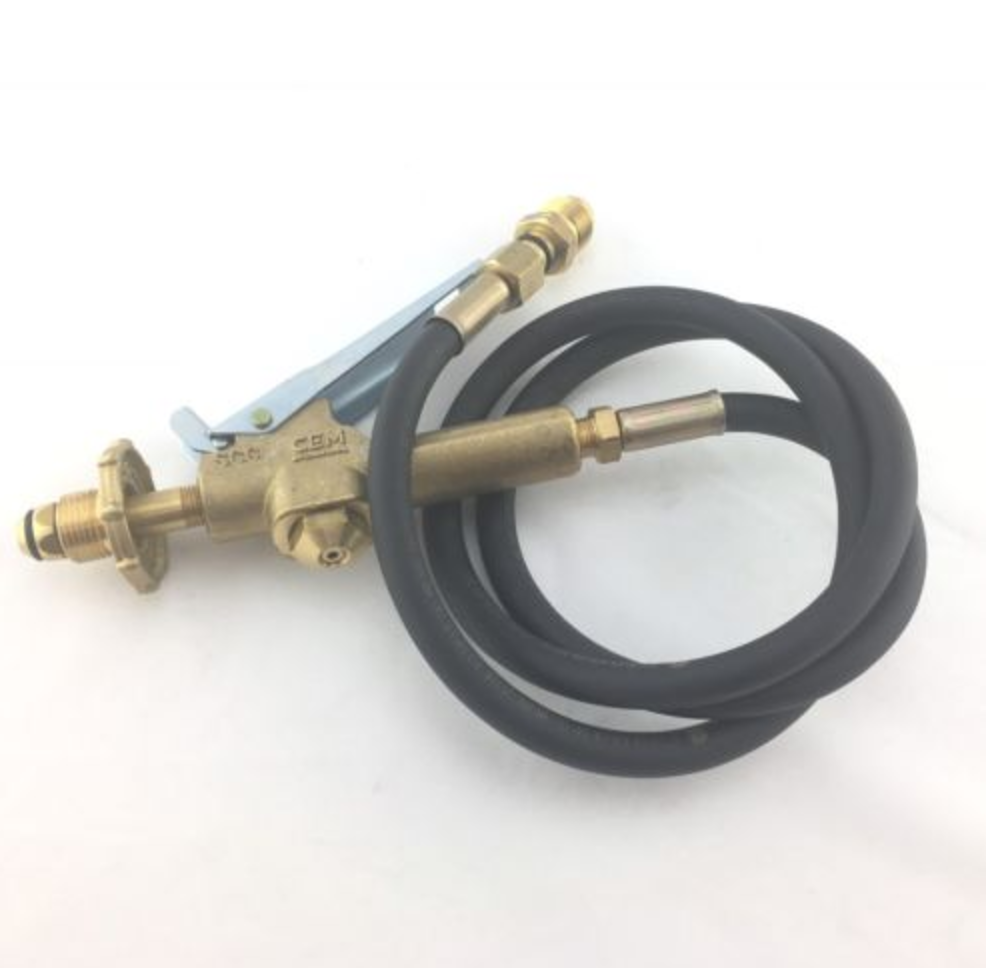

An LPG Filler/Decanting Gun & Hose is an essential tool used to transfer LPG (Liquefied Petroleum Gas) between cylinders or from a large storage tank to smaller portable cylinders. This tool is particularly useful for refilling gas cylinders in camping, BBQ, or industrial applications. Here's a breakdown of the components and how they work:
Key Components:
-
Filler/Decanting Gun:
- The filler gun allows you to safely and efficiently transfer LPG from one cylinder to another, typically from a larger cylinder (or storage tank) into smaller, portable cylinders.
- The decanting process is typically used for transferring liquid gas from a full cylinder to an empty or partially filled cylinder. The process involves filling the smaller cylinder to the appropriate level without overfilling it.
- Safety Mechanisms: These guns generally have safety features to control the pressure during filling and to prevent gas spillage.
-
Hose:
- The hose is designed to connect the filler gun to the cylinder valve. It’s usually pressure-rated to handle LPG’s high pressure, ensuring the transfer is safe and efficient.
- The hose will have different types of fittings on either end to connect to various LPG valve types (like POL, CGA510, or BBQ).
Suitability for Different Valves:
- BBQ Valves: Typically used for small LPG cylinders, often found with BBQ gas tanks. This part of the gun ensures compatibility with BBQ-style valves, which are common in household BBQ systems.
- POL (Prest-O-Lite) Valves: Common in larger LPG cylinders (such as those used for caravans or industrial purposes). The POL fitting on the hose allows connection to these types of cylinders.
- CGA510 Valves: This is a standard valve fitting used mostly in North America. The adapter on the hose allows it to connect to cylinders with CGA510 valves, which are common in certain industrial applications and refilling stations.
How It Works:
- Filling Process: The decanting gun is screwed onto the valve of the cylinder you want to fill (the smaller cylinder), while the other end of the hose is connected to a larger LPG tank or source. The filler gun is opened to allow gas to transfer safely from the source cylinder to the receiving cylinder.
- Decanting: The decanting process is primarily used to safely transfer LPG without causing pressure fluctuations or gas losses. It's done slowly, ensuring that the receiving cylinder is filled safely to the correct level.
Applications:
- BBQs and Outdoor Cooking: The decanting gun is useful for refilling small BBQ gas cylinders from larger LPG tanks, allowing you to refill them at home without needing to go to a gas exchange station.
- Caravans: It is commonly used for caravans, where people use large LPG cylinders to supply multiple gas appliances and want to decant from a large storage cylinder into smaller, portable cylinders.
- Camping: For refilling portable gas cylinders used in camping stoves, heaters, and other equipment.
- Industrial and Commercial Use: In situations where refilling multiple smaller cylinders from a large storage tank is required.
Key Features to Consider:
- Pressure Rating: Ensure the hose and filler gun are rated to handle the pressure of the LPG you're working with.
- Safety Valves: Look for guns with built-in safety mechanisms like overfill protection or automatic shut-off valves.
- Durability: High-quality materials (often brass or steel) ensure longevity and resistance to wear.
- Regulatory Compliance: Make sure the tool meets safety and regulatory standards for your region (e.g., AS/NZS 1596 in Australia for LPG).
Considerations:
- Proper Ventilation: Always ensure you are working in a well-ventilated area when handling LPG to avoid accidents like gas buildup or leaks.
- Leak Testing: After connecting the decanting gun and hose, check for leaks by using soapy water to test the connections. If bubbles form, the connection isn’t sealed properly, and the equipment should not be used until it’s fixed.
