Product Description

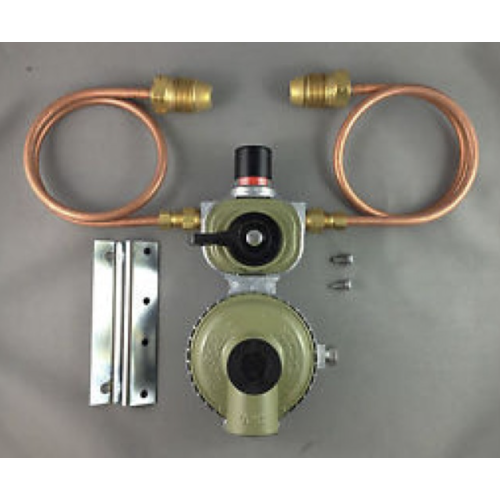

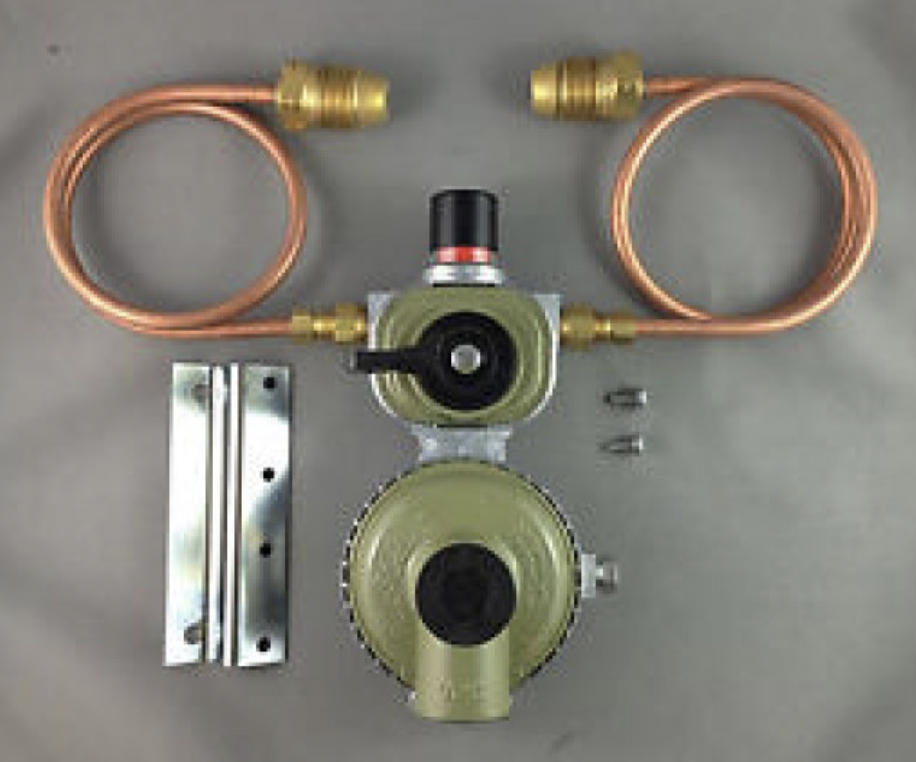

MARSHALL LPG 2 STAGE HIGH PRESSURE REGULATOR - 290Mj WITH BRACKET + MANUAL CHANGEOVER TAP + 2 COPPER PIG TAILS
The MEGR-291H is ideally suited for high demand RV, outdoor appliances,
cabins, seasonal homes, gas fire places, water heaters, ranges or other
moderate to low demand domestic home installations.
SPECIFICATIONS:
290Mj
Type: Two Stage
Max. Inlet Pressure: 250 PSI
Inlet Connection: 1/4” FNPT
Outlet Connection: 3/8” FNPT
Exterior Finish: Raw Zinc / Powder Coated
Diaphragm: Fabric Reinforced Molded with O-Ring
Bonnet / Body Seal
Diaphragm Type: Internal Relief - Spring Loaded
Bonnet/ Body Material: Die Cast Zinc
Mounting Holes: 3-1/2” On Center
Pressure Taps: 1/8” FNPT Plugged
Length: 190mm
Width: 90mm
Height: 75mm
KIT INCLUDES:
1 X 2 STAGE REGULATOR
1 X MOUNTING BRACKET
2 X MOUNTING SCREWS
1 X MANUAL CHANGEOVER TAP
2 X COPPER PIGTAILS
SAFETY WARNING
PLEASE BE AWARE OF LPG VAPOR IS HIGHLY FLAMMABLE AND ALL LPG PRODUCTS MUST BE INSTALLED BY A LICENSED PERSON. IMPROPER INSTALLATIONS CAN RESULT IN SERIOUS INJURY.
