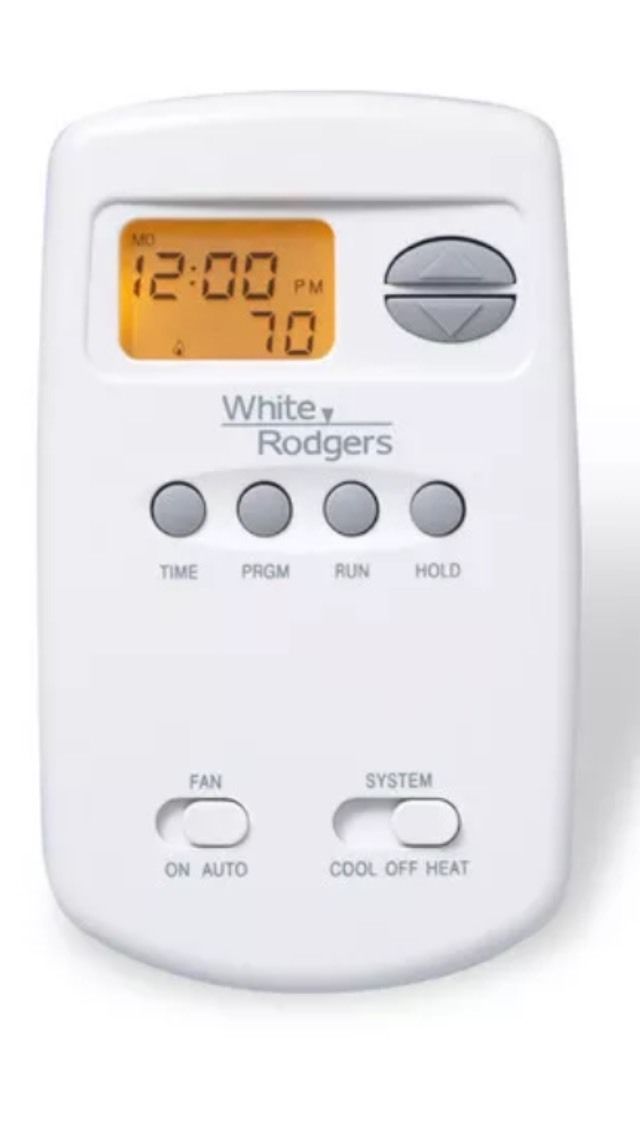

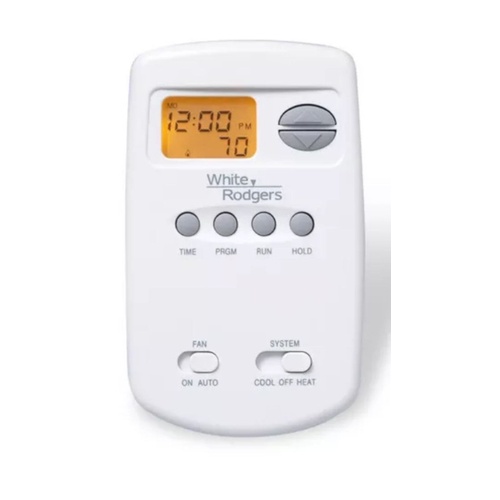

The White Rodgers Programmable Thermostat 1E78-151 is a programmable thermostat designed for residential heating and cooling systems. This thermostat is part of the White Rodgers 70 Series, and it allows for easy, automated control of your home’s heating and cooling needs, helping you manage energy use and maintain a comfortable living environment.
Key Features of the White Rodgers Programmable Thermostat 1E78-151:
-
Programmable Functionality:
- The 1E78-151 is a 7-day programmable thermostat, meaning you can set different temperatures for each day of the week.
- It allows you to set up to 4 temperature settings per day (Wake, Leave, Return, Sleep), which helps in optimizing energy consumption by adjusting the temperature based on your schedule.
- This functionality allows you to set the temperature lower when you're away, and raise it before you return, saving energy when you don't need heating or cooling.
-
User-Friendly Display:
- The digital display is clear and easy to read, with large numbers and a simple interface for adjusting settings.
- It features a backlit screen, making it easier to view the settings even in low-light environments.
-
Energy Savings:
- By allowing you to set temperature schedules tailored to your daily routine, the 1E78-151 helps you save on energy costs by automatically reducing heating or cooling when it’s not needed.
- This programmable functionality reduces the need to manually adjust the thermostat, ensuring the system is only working when necessary.
-
Compatibility:
- The White Rodgers 1E78-151 thermostat is compatible with most heating and cooling systems, including furnaces, air conditioners, heat pumps, and central HVAC systems.
- It works with 24-volt systems and is suitable for use with both gas and electric heating systems.
-
Simple Installation:
- The thermostat is designed for easy installation and is backward compatible with many older models of thermostats.
- It comes with clear instructions for wiring and setup, making it suitable for both DIY installation and professional installers.
- It typically requires 4 wires for installation (R, W, Y, and C), depending on your HVAC system.
-
Battery-Powered:
- The White Rodgers 1E78-151 operates on batteries (typically AA batteries), so no additional wiring is needed for power.
- The battery-powered design makes it easy to install and relocate the thermostat without needing to run extra wiring.
-
Temperature Range:
- The thermostat generally has a temperature range of 40°F to 90°F (4.4°C to 32.2°C), which should cover the typical requirements for most home heating and cooling systems.
-
Compatibility with Multiple Systems:
- The 1E78-151 thermostat is compatible with most low-voltage heating and cooling systems, including single-stage systems, multi-stage systems, and heat pumps.
Applications:
- Residential Heating and Cooling: Ideal for homes with central heating and cooling systems, this thermostat is perfect for furnaces, air conditioners, and heat pumps.
- Energy Efficiency: It's great for individuals or families looking to improve energy efficiency and reduce heating and cooling costs by programming their system based on their routine.
- Comfort: Ideal for maintaining consistent and comfortable temperatures without having to adjust the thermostat manually each time.
Symptoms Indicating the Need for Replacement:
- Inaccurate Temperature Readings: If the thermostat is consistently showing incorrect temperature readings or causing fluctuations in room temperature, it might need to be replaced or recalibrated.
- Unresponsive Controls: If the thermostat buttons or touchscreen becomes unresponsive or does not adjust the temperature when pressed, the thermostat may need a replacement.
- Battery Issues: If the thermostat no longer works after replacing the batteries, there may be an internal malfunction.
- Outdated Technology: If your thermostat is outdated and lacks features you need, such as Wi-Fi connectivity or advanced scheduling, upgrading to a newer programmable model like the 1E78-151 might be a good choice.
Installation:
-
Turn Off Power: Before installing the thermostat, ensure the power to your HVAC system is turned off to avoid electrical shock.
-
Remove the Old Thermostat: Take the old thermostat off the wall and disconnect the wires. Keep track of the wire connections (R, W, Y, C) for proper installation.
-
Connect the Wires: Follow the wiring instructions provided with the new thermostat. Typically, you’ll connect the R wire (power), W wire (heat signal), Y wire (cooling signal), and C wire (common) to the corresponding terminals on the back of the thermostat.
-
Mount the Thermostat: Once the wires are connected, mount the White Rodgers 1E78-151 onto the wall plate and secure it with screws.
-
Restore Power and Test: After installation, restore the power to your system and test the thermostat to ensure it is functioning correctly. Set the temperature and check if the heating or cooling system responds appropriately.
Maintenance Tips:
- Change Batteries Regularly: If the thermostat operates on batteries, change the batteries at least once a year to ensure it remains functional.
- Clean the Display: Keep the thermostat display clean from dust and grime to ensure clear readability.
- Check for Wiring Issues: Periodically check the thermostat’s wiring to ensure that it is secure and undamaged.
- Test Heating and Cooling: Once a season, test both the heating and cooling functions of the thermostat to ensure they are functioning correctly.
Conclusion:
The White Rodgers Programmable Thermostat 1E78-151 is a reliable, user-friendly thermostat designed for residential heating and cooling systems. With its programmable features, easy installation, and energy-saving capabilities, it’s an excellent choice for homeowners looking to improve their indoor comfort and control energy consumption.
