Product Description

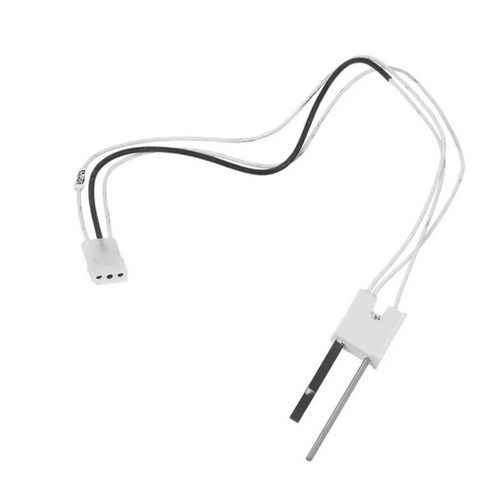

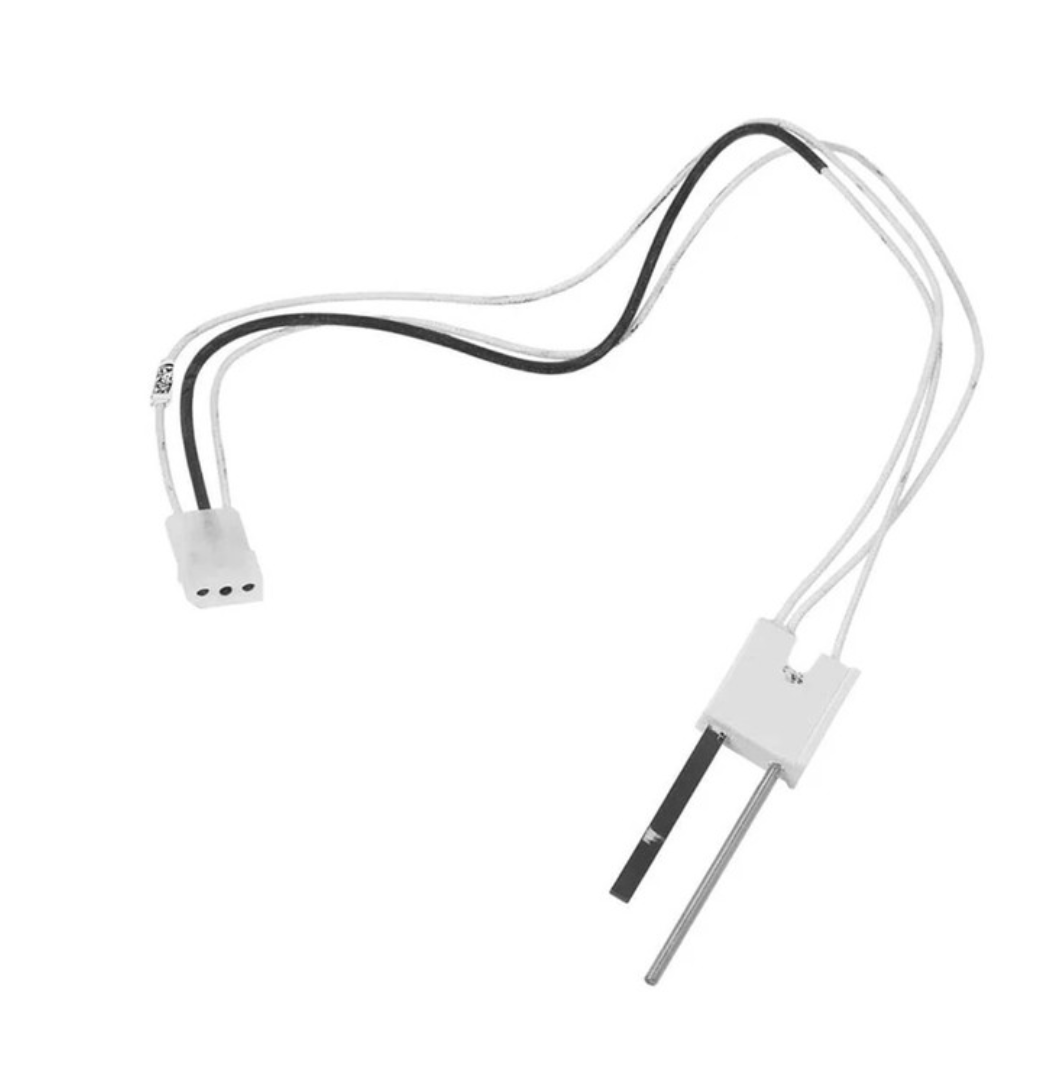

The Rheem Gas Heavy Duty H.S.I (Hot Surface Igniter) Hot Surface Igniter and Flame Probe PN. 768G-216 | 071420 is an essential component used in gas heating systems, particularly in Rheem models, for the ignition and flame detection processes.
Key Features of the Rheem Gas Heavy Duty H.S.I Hot Surface Igniter and Flame Probe PN. 768G-216 | 071420:
-
Hot Surface Igniter (HSI):
- The HSI is responsible for igniting the gas in the burner assembly. It heats up to a very high temperature and ignites the gas once it is released by the gas valve.
- Heavy-duty design ensures longer-lasting performance and higher durability in harsh heating environments.
-
Flame Probe:
- The flame probe is used to detect the presence of a flame. It works in conjunction with the HSI to verify that ignition has occurred. If no flame is detected, the system will shut down to prevent the release of unburned gas, ensuring safety.
- It ensures that the heater operates safely by monitoring the flame signal and ensuring the system only runs when the flame is established.
-
Dual Function:
- This part serves a dual function by combining both the igniter and the flame probe in one unit. This integration simplifies the heating system’s design and maintenance, as both functions are handled by a single, compact part.
- This reduces the need for multiple components, improving efficiency and reliability.
-
Heavy-Duty Construction:
- The heavy-duty construction ensures that this Hot Surface Igniter and flame probe can handle high temperatures and frequent cycling of the heating system, making it ideal for high-performance gas heaters.
-
Compatibility:
- The part is designed specifically for use in Rheem gas heating systems. It is important to verify that the PN. 768G-216 | 071420 is compatible with your model of Rheem gas heater before replacing it. Using the correct part ensures proper function and system safety.
-
Efficient Ignition and Safety:
- The HSI ensures that your gas heater ignites quickly and efficiently. This minimizes energy waste, and the flame probe guarantees that the system only operates when it is safe, preventing hazardous situations like gas build-up.
-
Installation:
- The HSI and flame probe are typically installed near the burner assembly in the heater. It is recommended to have a professional install or replace this component to ensure proper operation and safety.
-
Maintenance and Replacement:
- Over time, the HSI can degrade due to continuous heating and cooling cycles. If the system is not igniting or the flame probe fails to detect the flame, these components may need to be replaced.
- Regular maintenance of your gas heater should include inspecting the HSI and flame probe for wear and ensuring they function properly to avoid ignition problems.
Troubleshooting Common Issues:
-
Ignition Failure:
- If your gas heater is failing to ignite, it could be due to a faulty hot surface igniter. This could happen if the HSI is cracked, damaged, or simply worn out from repeated heating cycles.
- A non-functioning flame probe can also lead to ignition issues, as it won't send the correct signal to the control board to verify that the burner is lit.
-
No Flame Detection:
- If the system attempts to ignite but shuts off immediately, it could be because the flame probe is not detecting the flame. This can occur if the probe is dirty, damaged, or misaligned.
- The system will shut off the gas flow if it does not detect a flame to prevent a dangerous gas buildup.
-
Poor Heater Performance:
- If your heater is cycling on and off too frequently or is not maintaining a consistent temperature, the igniter or flame probe may not be operating correctly, causing intermittent ignition or flame detection issues.
Installation Instructions:
- Power Off the Heater: Ensure that the heater is completely powered off and disconnected from the electrical supply before starting the installation or replacement process.
- Locate the Igniter and Flame Probe: Typically, the HSI and flame probe are located near the gas burner in the heater. Accessing this area may require removing a panel or cover.
- Remove the Old Component: Disconnect any wires connected to the HSI and flame probe, and remove the old part from its mounting location.
- Install the New Component: Mount the new Rheem Gas Heavy Duty H.S.I Igniter and Flame Probe in place, and connect the wiring to the appropriate terminals.
- Test the System: Once installed, restore power to the unit and test the heater to ensure that the new component is working properly.
Conclusion:
The Rheem Gas Heavy Duty H.S.I Hot Surface Igniter and Flame Probe PN. 768G-216 | 071420 is a crucial component for the ignition and flame detection in Rheem gas heating systems. Its heavy-duty design ensures it will last for extended periods, even with frequent cycling. If your heater is experiencing ignition issues, a faulty HSI or flame probe could be the cause. Replacing this component will restore proper functioning and ensure your heater operates safely and efficiently.
