Product Description

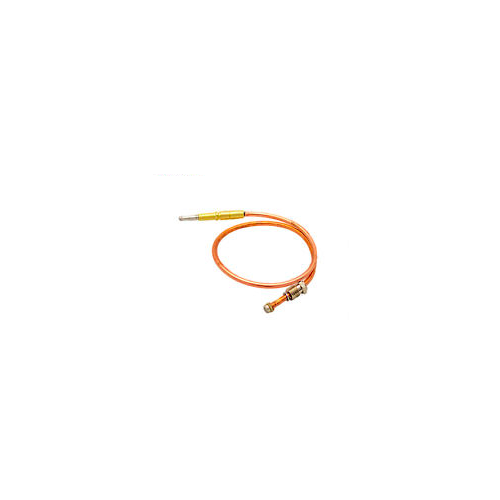

The Stellar Rheem Thermocouple 450mm is a key component used in gas appliances, particularly in gas heaters and gas hot water systems. The thermocouple is responsible for detecting the pilot flame and ensuring the safe operation of the appliance by controlling the gas flow.
Key Features and Specifications:
-
Length: 450mm:
- The 450mm length refers to the length of the thermocouple from one end to the other. This is an important measurement to ensure the thermocouple can reach from the gas valve to the pilot light or burner assembly in the appliance.
-
Thermocouple Function:
- The thermocouple is a safety device used to detect the temperature of the pilot flame. It consists of two metal wires (usually copper and another alloy) that generate a small electrical current when exposed to heat.
- This current is sent to the gas control valve to keep the gas flowing. If the pilot light goes out, the current stops, and the gas valve shuts off, preventing gas from leaking out and potentially causing a dangerous situation.
-
Compatibility with Stellar and Rheem Appliances:
- This thermocouple is specifically designed for use in Stellar and Rheem gas appliances, including gas hot water systems and gas heaters. It ensures proper function by detecting the heat from the pilot light, keeping the gas valve open while the pilot is lit.
-
Standardized 450mm Length:
- The 450mm length is a common size for thermocouples used in many domestic gas appliances. This size ensures that the thermocouple can reach the pilot assembly and gas valve in a typical appliance setup.
-
Safety and Efficiency:
- Thermocouples play a critical role in safety, ensuring that gas is only allowed to flow when the pilot light is ignited. If the pilot light goes out, the thermocouple will sense the absence of heat and cut off the gas supply to prevent any potential gas leaks.
Common Symptoms of a Faulty Thermocouple:
A faulty thermocouple can lead to several issues, including:
-
Pilot Light Not Staying On:
- The most common sign of a faulty thermocouple is that the pilot light keeps going out, even after being relit. This occurs because the thermocouple is not generating enough voltage to keep the gas valve open.
-
No Gas Flow to the Burner:
- If the thermocouple is not working, the gas valve might shut off the gas supply, preventing the main burner from operating.
-
Intermittent Ignition Problems:
- Sometimes, the thermocouple can cause intermittent ignition problems. The appliance might not light on the first attempt, or the pilot may go out after a short period.
-
Gas Leak:
- If the thermocouple fails to cut off the gas supply after the pilot light goes out, it could potentially lead to a gas leak, which is a serious safety risk.
Installation and Replacement:
-
Turn Off Gas and Power:
- Always ensure the gas supply is turned off, and if the appliance uses electricity, switch off the power supply before working on the system.
-
Locate the Thermocouple:
- The thermocouple is typically located next to the pilot light and connected to the gas control valve. You may need to access the rear or bottom panel of the appliance to reach the thermocouple.
-
Remove the Old Thermocouple:
- Disconnect the old thermocouple from the gas valve and pilot assembly. It is typically screwed into place, so you may need a wrench to loosen it.
-
Install the New Thermocouple:
- Install the Stellar Rheem Thermocouple 450mm in the same position as the old one, ensuring that both ends are securely connected to the pilot assembly and the gas control valve.
-
Test the Appliance:
- After installing the new thermocouple, turn on the gas supply and light the pilot light. The thermocouple should detect the heat from the pilot and keep the gas valve open. Test the appliance to ensure the pilot light stays on, and the appliance operates properly.
-
Check for Gas Leaks:
- After installation, check for any potential gas leaks around the connections. You can use a gas leak detection solution or soapy water to check for any bubbles forming around the connections.
