Product Description

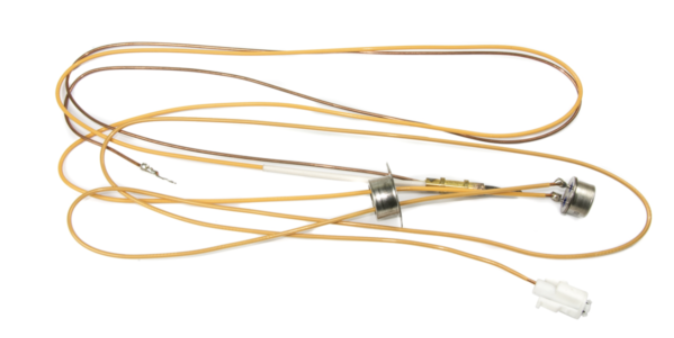

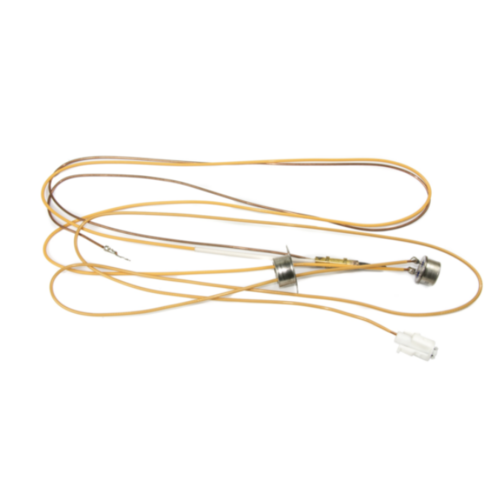

The Rinnai Thermocouple for Gas Log Heater (Flame Fire Log) is an essential safety component for your Rinnai gas log heater. The thermocouple plays a crucial role in ensuring the safe operation of the gas heater by detecting the flame and providing the necessary electrical signal to control the gas valve.
Key Features of the Rinnai Thermocouple for Gas Log Heater (Flame Fire Log):
-
Flame Detection:
- The thermocouple is responsible for detecting the flame inside the gas log heater. It converts the heat from the flame into a small electrical current, which signals the gas valve to keep the gas flow active. If the flame goes out, the thermocouple will shut off the gas supply to prevent any potential risks.
-
Safety Mechanism:
- The thermocouple is an important safety feature, preventing gas from continuing to flow when the flame is not detected. This reduces the risk of gas leaks or potential fire hazards, ensuring your gas log heater operates safely.
-
Genuine Rinnai Part:
- The Rinnai thermocouple is a genuine part designed specifically for Rinnai gas log heaters. It ensures compatibility and provides reliable performance, maintaining the safety standards of your gas heating system.
-
Durable and Reliable:
- The thermocouple is built with high-quality materials that are designed to withstand the high heat and harsh conditions inside the gas log heater. This ensures its longevity and reliable operation over time.
-
Easy to Replace:
- The thermocouple is easy to replace, making it a convenient option for maintaining your gas log heater. If the thermocouple malfunctions, replacing it is relatively simple and can be done by a qualified technician or a DIY enthusiast with basic knowledge.
-
Compatible with Flame Fire Log Models:
- This thermocouple is designed for use with Rinnai gas log heaters that feature a flame fire log system, ensuring optimal performance and safety.
How the Thermocouple Works:
- When the gas log heater is operating, the flame from the burner heats the thermocouple. This heat creates a small electrical current in the thermocouple.
- This electrical current signals the gas valve to keep the gas flowing and the flame lit. If the flame goes out for any reason (e.g., if the heater is turned off or if there is a malfunction), the thermocouple will stop generating current, which in turn signals the gas valve to shut off the gas flow.
- This automatic shutdown mechanism is a crucial safety feature designed to prevent gas leaks and ensure the safety of your home.
Applications:
- Residential Use:
- The Rinnai thermocouple is specifically designed for use in residential gas log heaters. It ensures that your home heating system operates safely and efficiently, providing warmth without compromising safety.
- Gas Log Fireplaces:
- This thermocouple is commonly used in gas log fireplaces and other flame fire log models by Rinnai, offering a secure way to operate and control the gas flow in these appliances.
Installation:
-
Turn Off the Heater:
- Before beginning any maintenance or installation, make sure the gas log heater is turned off and completely cooled down. Disconnect the gas supply to ensure safety.
-
Access the Thermocouple:
- In most gas log heaters, the thermocouple is located near the pilot light or flame sensor. You may need to remove the heater’s front panel or access door to reach it.
-
Disconnect the Old Thermocouple:
- Disconnect the old thermocouple from the gas valve and any electrical connectors. Make note of the connections so you can properly install the new thermocouple.
-
Install the New Thermocouple:
- Attach the new Rinnai thermocouple to the gas valve and flame sensor, ensuring it is securely connected. The thermocouple should be positioned so that it is directly exposed to the flame or heat from the pilot light.
-
Reassemble the Heater:
- Once the thermocouple is installed, reassemble any parts of the heater that were removed. Make sure all components are properly secured.
-
Test the Heater:
- Turn the gas supply back on and light the heater. Check to ensure that the thermocouple is properly detecting the flame and allowing the gas valve to stay open. If the flame is extinguished, the thermocouple should signal the gas valve to shut off the gas flow.
-
Check for Gas Leaks:
- After installation, check the system for any gas leaks. If any are detected, turn off the gas supply immediately and consult a professional for further inspection.
Benefits:
- Enhanced Safety: The thermocouple provides an automatic shut-off feature that prevents gas from flowing if the flame goes out, ensuring your heater operates safely.
- Reliable Performance: As a genuine Rinnai part, the thermocouple is designed to deliver reliable performance, maintaining the safety and functionality of your gas log heater.
- Easy Maintenance: Replacing the thermocouple is relatively simple, making it easy to maintain the performance of your gas heater and extend its lifespan.
- Energy Efficiency: By ensuring that the gas supply is cut off when necessary, the thermocouple helps to avoid wasted gas, making the heater more energy-efficient.
