Product Description

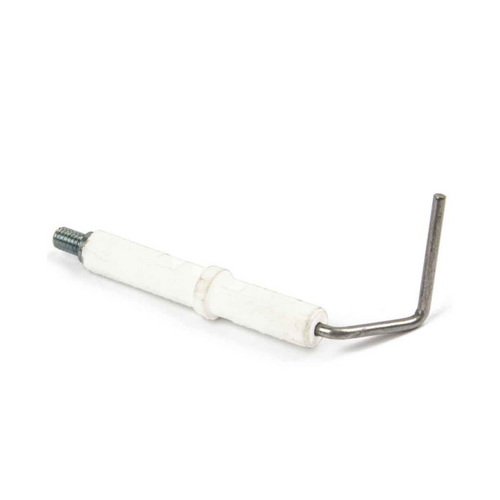

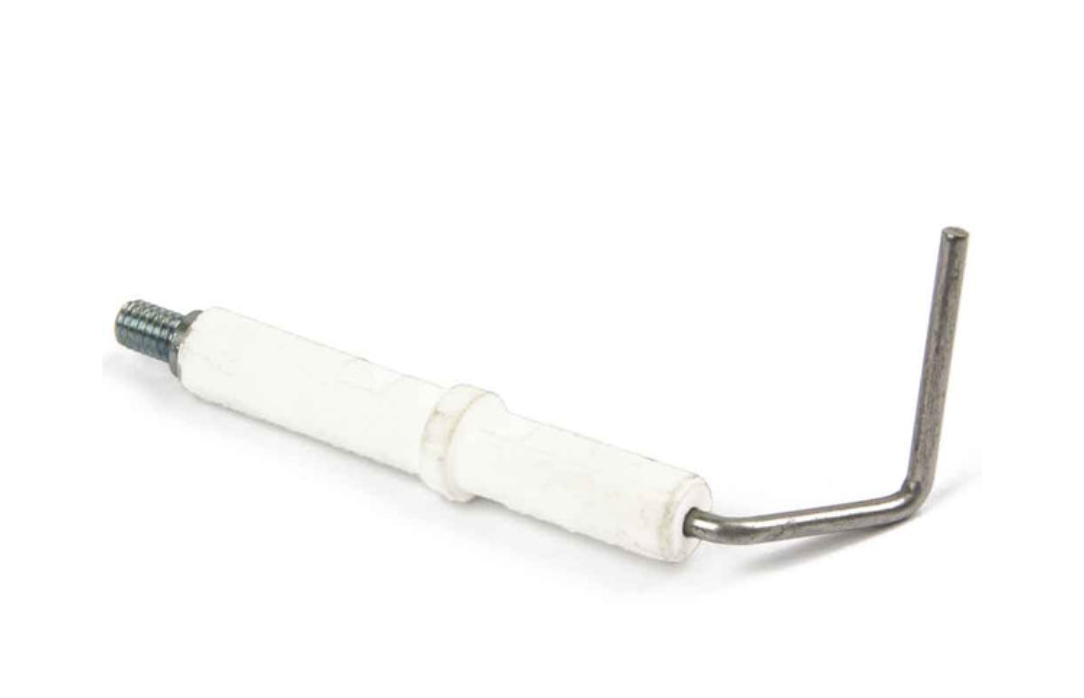

The Bonaire Vulcan Gas Heater Flame Sensor Igniter is a crucial component in the ignition and safety system of a gas heater. Here's a breakdown of its features and functions:
1. Flame Sensor:
- The flame sensor is responsible for detecting the presence of a flame in the gas heater's combustion chamber. Once the gas burner ignites, the sensor ensures that the flame is present and operating as expected.
- If the flame goes out or does not ignite properly, the flame sensor will signal the system to shut off the gas supply to prevent unburned gas from accumulating, which could be dangerous.
2. Igniter:
- The igniter is responsible for starting the combustion process by creating a spark to ignite the gas when the heater is turned on. The igniter typically works in conjunction with the flame sensor to ensure the heater operates safely and efficiently.
- Once the gas valve opens, the igniter produces a spark that ignites the gas, creating a flame in the burner. If the igniter fails, the system may not be able to start the heating process.
3. Function of the Combined Component:
- These components work together in the ignition sequence of the heater:
- Ignition: When the system calls for heat, the igniter creates a spark to ignite the gas.
- Flame Detection: After ignition, the flame sensor ensures that the flame is stable. If the sensor doesn't detect a flame, it signals the system to shut off the gas supply.
- Safety: The system will shut down if either the igniter fails to create a spark or the flame sensor doesn't detect a flame, ensuring safety by preventing the release of unburned gas.
4. Common Issues:
- Faulty Ignition: If the igniter is worn out or malfunctioning, it won't produce a spark, leading to the heater failing to start.
- Flame Sensor Failure: A dirty or defective flame sensor can cause the heater to shut off, even if there is a flame, as the system might misinterpret a lack of flame detection as a safety concern.
- No Flame Detection: If the flame sensor becomes coated with dirt, dust, or corrosion, it may not detect the flame properly, causing the gas heater to shut down for safety reasons.
5. Replacement:
- If you're experiencing issues with ignition or flame detection, the flame sensor igniter may need to be cleaned or replaced.
- Regular maintenance, like cleaning the flame sensor, can help extend the life of this component. If the sensor or igniter is faulty or damaged, it should be replaced with the correct part for your Bonaire Vulcan Gas Heater.
6. Part Identification:
- When purchasing a replacement, it’s essential to ensure you're getting the correct flame sensor igniter for your specific model of Bonaire Vulcan Gas Heater. You can often find this by checking the model number of your heater or by using the heater's manual.
