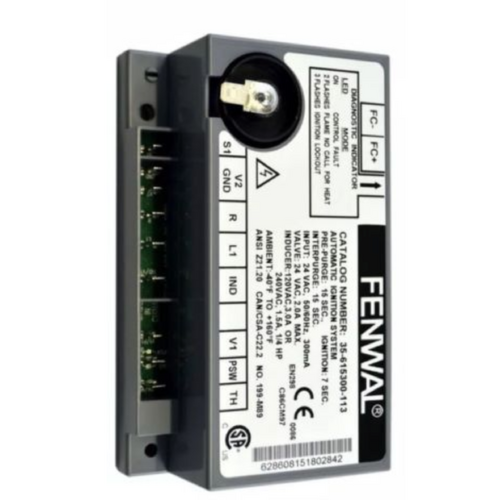

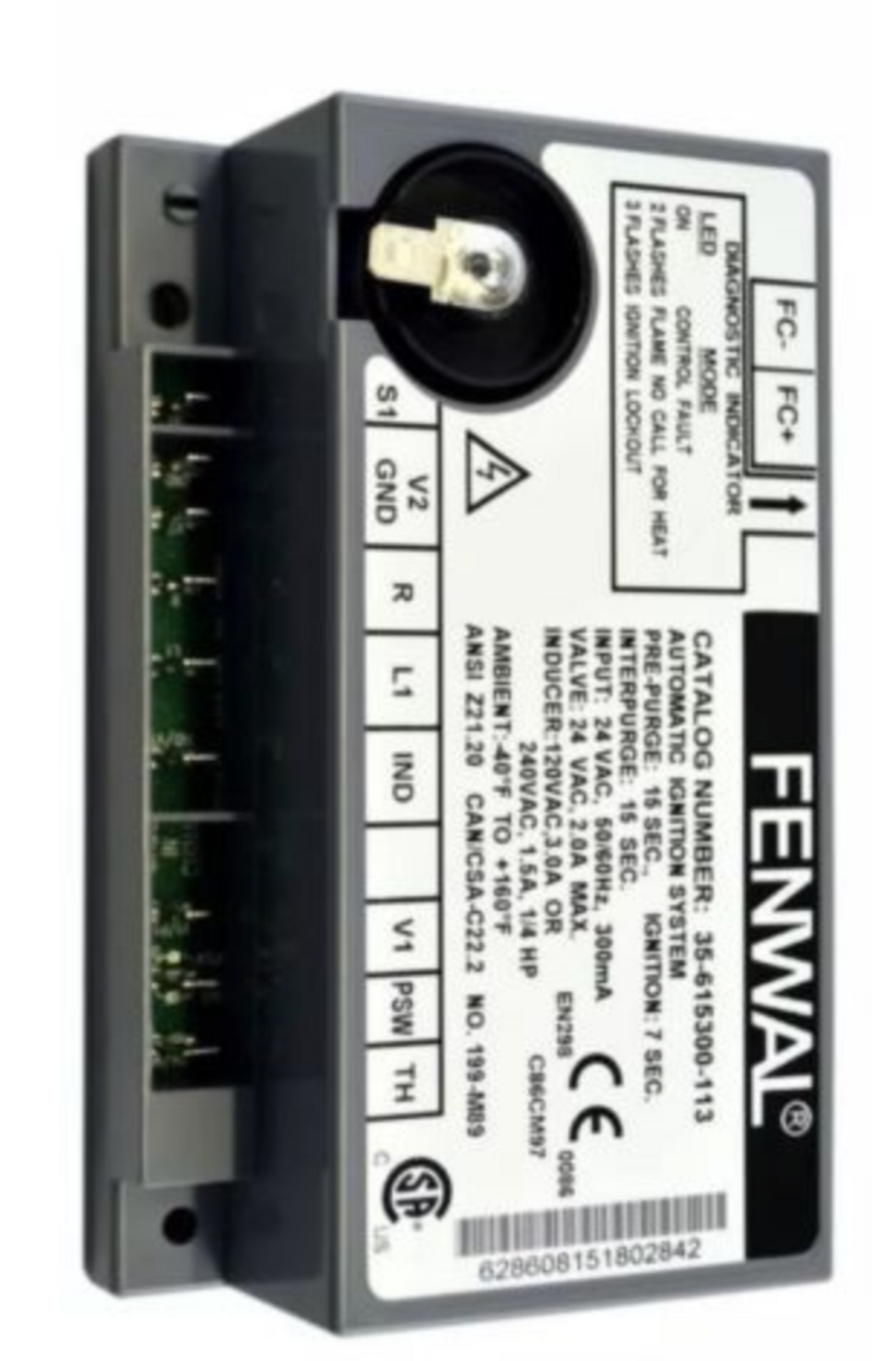

The Braemar TG4 Star Ignition Unit Fenwal 35-615300-113 is a key component used in Braemar TG4 Star Gas Ducted Heaters, designed to ensure safe and reliable ignition of the gas burner. This unit is essential for the electronic ignition system, providing the spark necessary to ignite the gas and start the heating process. It is designed to enhance the efficiency and safety of your gas ducted heater.
The Fenwal 35-615300-113 Ignition Unit is designed to work with the Braemar TG4 Star Gas Ducted Heaters, which are commonly used in residential and commercial heating applications. This ignition unit plays a critical role in the electronic ignition system of the heater, providing the necessary spark to ignite the gas burner.
Electronic Ignition:
The Fenwal 35-615300-113 unit utilizes electronic ignition to create a high-voltage spark, igniting the gas in the burner. This eliminates the need for a constantly burning pilot light, making the system more energy-efficient.
The ignition spark is generated only when required, ensuring that the heater ignites when needed and reduces energy consumption.
Part Number:
The Part Number 628608 is associated with this specific Fenwal 35-615300-113 Ignition Unit. This number is typically used when replacing the unit in Braemar TG4 Star Gas Ducted Heaters.
Flame Detection:
After ignition, the unit continuously monitors the flame to ensure that it stays lit. If the flame is not detected or goes out, the ignition unit will automatically shut off the gas supply, preventing the release of unburned gas and ensuring safety.
Safety Features:
The ignition unit is equipped with important safety mechanisms:
Flame failure protection: If the flame is not detected or goes out, the gas flow is stopped automatically.
Overheating protection: The unit ensures that the heater does not operate at unsafe temperatures.
Gas shut-off: The system cuts off the gas supply if there is a failure in the ignition process or if the flame is lost.
Durability:
The Fenwal 35-615300-113 ignition unit is built to be compact and durable, capable of handling the high heat and demanding conditions inside a gas-fired heating system.
It is designed for long-term reliability and consistent performance in heating systems.
Thermostat Signal:
When the thermostat detects that heating is needed, it sends a signal to the ignition unit to start the process.
Gas Flow:
The ignition unit opens the gas valve to allow gas to flow to the burner.
Spark Generation:
The unit generates a high-voltage spark to ignite the gas in the burner, starting the combustion process.
Flame Monitoring:
The ignition unit monitors the flame to ensure it remains ignited. If the flame fails to ignite or is extinguished, the unit cuts off the gas supply to prevent any dangerous buildup of unburned gas.
Continuous Monitoring:
The ignition unit continuously monitors the flame during the operation of the heater to ensure that the gas burner continues to function safely.
The Fenwal 35-615300-113 Ignition Unit is specifically used in Braemar TG4 Star Gas Ducted Heaters, which are designed to provide efficient heating to both residential and commercial spaces.
These heaters circulate warm air throughout the space via ductwork, and the ignition unit ensures the gas burner operates reliably and safely to provide consistent heat.
Some common issues with the Fenwal 35-615300-113 Ignition Unit that may require attention or replacement include:
Failure to Ignite: If the ignition unit is not generating the spark needed to ignite the gas, the heater will fail to turn on.
Flame Detection Failure: If the ignition unit does not detect the flame after ignition, it will shut off the gas supply as a safety precaution.
Intermittent Heating: If the ignition unit is malfunctioning, the heater may turn on and off unexpectedly, causing inconsistent heating.
If you're experiencing issues with your Braemar TG4 Star Gas Ducted Heater, replacing the Fenwal 35-615300-113 Ignition Unit may resolve the problem. Here’s a general guide on how to replace the ignition unit:
Turn off the Power and Gas:
Make sure the power to the heater is turned off, and the gas supply is completely shut off to ensure safety during replacement.
Locate the Ignition Unit:
The Fenwal 35-615300-113 Ignition Unit is typically located near the gas burner and gas valve assembly in the heater.
Disconnect the Wiring:
Carefully disconnect the wiring from the old ignition unit, noting the wiring configuration so you can reconnect the new unit correctly.
Remove the Old Ignition Unit:
Take out the faulty ignition unit from the system and replace it with the new Fenwal 35-615300-113 Ignition Unit.
Reconnect the Wiring:
Connect the wiring to the new unit, ensuring the connections are secure and correct according to the wiring diagram.
Test the System:
Once the unit is installed and the wiring is reconnected, turn the power and gas back on and test the system to make sure it ignites and operates correctly.
The Braemar TG4 Star Ignition Unit Fenwal 35-615300-113 plays an essential role in ensuring the reliable and safe operation of your gas ducted heater. It provides the necessary spark for ignition, monitors the flame for safety, and ensures efficient combustion. If you're encountering issues like failure to ignite or inconsistent heating, replacing this ignition unit may solve the problem and restore the heater's functionality.
SKU | 19975 |
Brand | Braemar |
