Product Description

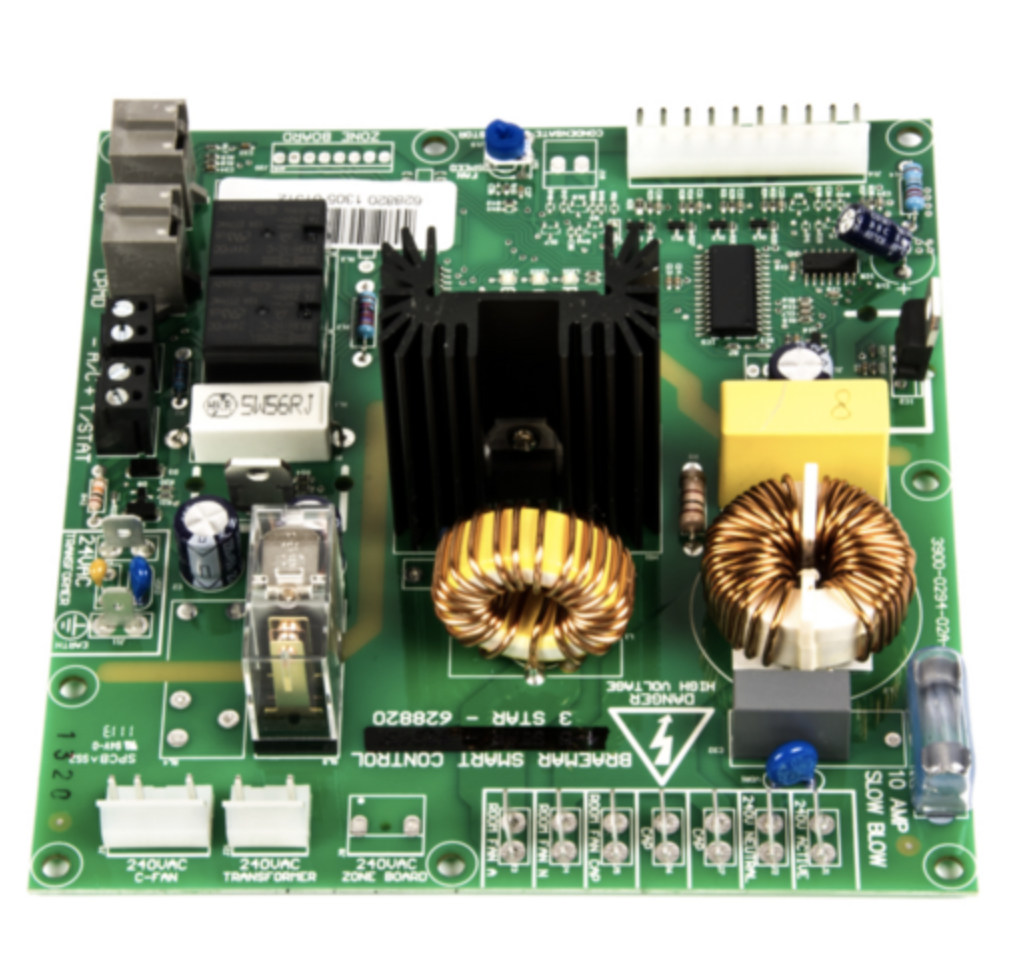

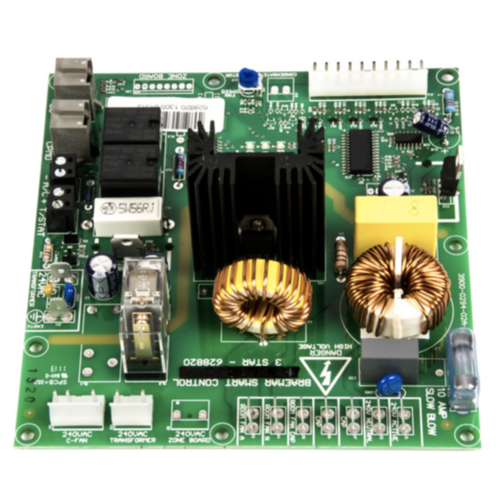

The Braemar BM 315 PCB Circuit Board BSC 3 Star Gas Ducted Heater PN. 628820 is a crucial component in the Braemar BM 315 gas ducted heating system, ensuring proper functionality and efficient operation of the heater. The PCB (Printed Circuit Board) acts as the control hub of the heater, regulating and managing the electrical components for safe and reliable operation.
Key Features and Details:
-
Function of the PCB:
- The PCB is responsible for controlling the operation of the Braemar BM 315 gas ducted heater. It manages the communication between various components, including the gas valve, blower motor, ignition system, and thermostat.
- It monitors and adjusts the heater’s performance by taking input from sensors, such as temperature or pressure sensors, to ensure the system operates optimally and safely.
- The PCB is crucial for regulating the ignition sequence, managing the burner operation, and controlling the blower fan speed and air circulation.
-
Role in the Gas Heater System:
- Ignition Control: The PCB initiates and monitors the ignition process, ensuring the gas valve opens at the right time, the igniter sparks, and the burner starts operating.
- Temperature Regulation: It adjusts the heating system to ensure that the room reaches the desired temperature and maintains that level.
- Safety Features: The PCB helps the system monitor the pressure and airflow to prevent dangerous conditions such as gas buildup or overheating. If any issues arise, the PCB can shut down the system to avoid further damage or risk.
- Error Detection: The PCB can also display error codes or activate warning lights to indicate potential issues with the heater, such as sensor malfunctions or communication errors.
-
Common Symptoms of a Faulty PCB:
- No Heat Output: A faulty PCB may prevent the heater from starting up, resulting in no heat being produced.
- Error Codes or Flashing Lights: The heater’s control panel may display error codes or flashing lights to indicate a PCB fault, preventing the heater from operating properly.
- Inconsistent Heating: A malfunctioning PCB can lead to irregular heating, with some rooms or areas receiving too much heat while others are left cold.
- Failure to Ignite: If the PCB fails, the ignition process may not occur, meaning the heater won't light and begin generating warmth.
- System Shutdown: The heater might automatically shut off if it detects a problem with the PCB, as it controls the critical safety and operational features of the system.
-
Replacement Considerations:
- Part Number (PN. 628820): Ensure that the replacement PCB matches the exact part number PN. 628820 to guarantee compatibility with your Braemar BM 315 gas ducted heater.
- Compatibility: The PN. 628820 PCB is specifically designed for use with the Braemar BM 315 BSC 3 Star gas ducted heaters. Using the correct PCB is essential for optimal operation and avoiding system malfunction.
- Installation by Professionals: Replacing the PCB can be complex and requires expertise in electrical systems. For safety and proper functionality, it is recommended to hire a licensed HVAC technician to replace the PCB.
-
Installation Process:
- Turn Off Power and Gas Supply: Before attempting any repairs or replacements, ensure the power and gas supply to the heating system are turned off.
- Access the PCB: Open the front access panel of the heater to expose the PCB. Depending on the model, you may need to remove screws or fasteners to gain access.
- Disconnect the Old PCB: Carefully disconnect the wiring from the faulty PCB. Make sure to take note of the wiring connections or use a diagram for reference during reinstallation.
- Install the New PCB: Secure the new PN. 628820 PCB in place, ensuring all connections align properly with the corresponding components.
- Reconnect the Wiring: Connect the wiring to the new PCB as per the original configuration. Ensure that all electrical connections are tight and secure.
- Test the System: After installation, turn the system back on and check the operation of the heater. Ensure that the system ignites properly, the blower fan works, and the temperature is being regulated correctly.
-
Maintenance Tips:
- Regular Checks: Regularly inspect the operation of your Braemar BM 315 heater to ensure it's running efficiently. Look out for any signs of malfunction, such as error codes or unusual behavior.
- Keep the Heater Clean: Dust and dirt buildup can cause strain on the system and affect the performance of sensitive components like the PCB. Clean the system regularly to maintain optimal performance.
- Scheduled Servicing: Have the system professionally serviced annually. During a service, the technician will check for any PCB issues, ensuring the system is running efficiently and safely.
Conclusion:
The Braemar BM 315 PCB Circuit Board BSC 3 Star Gas Ducted Heater PN. 628820 is an essential part of the Braemar BM 315 gas ducted heater, managing the various electrical functions and ensuring the heater operates safely and efficiently. If you experience problems such as no heat, inconsistent heating, or system shutdown, the PCB could be the culprit.
To restore full functionality, make sure to use the correct PN. 628820 replacement part and have a professional HVAC technician handle the installation.
