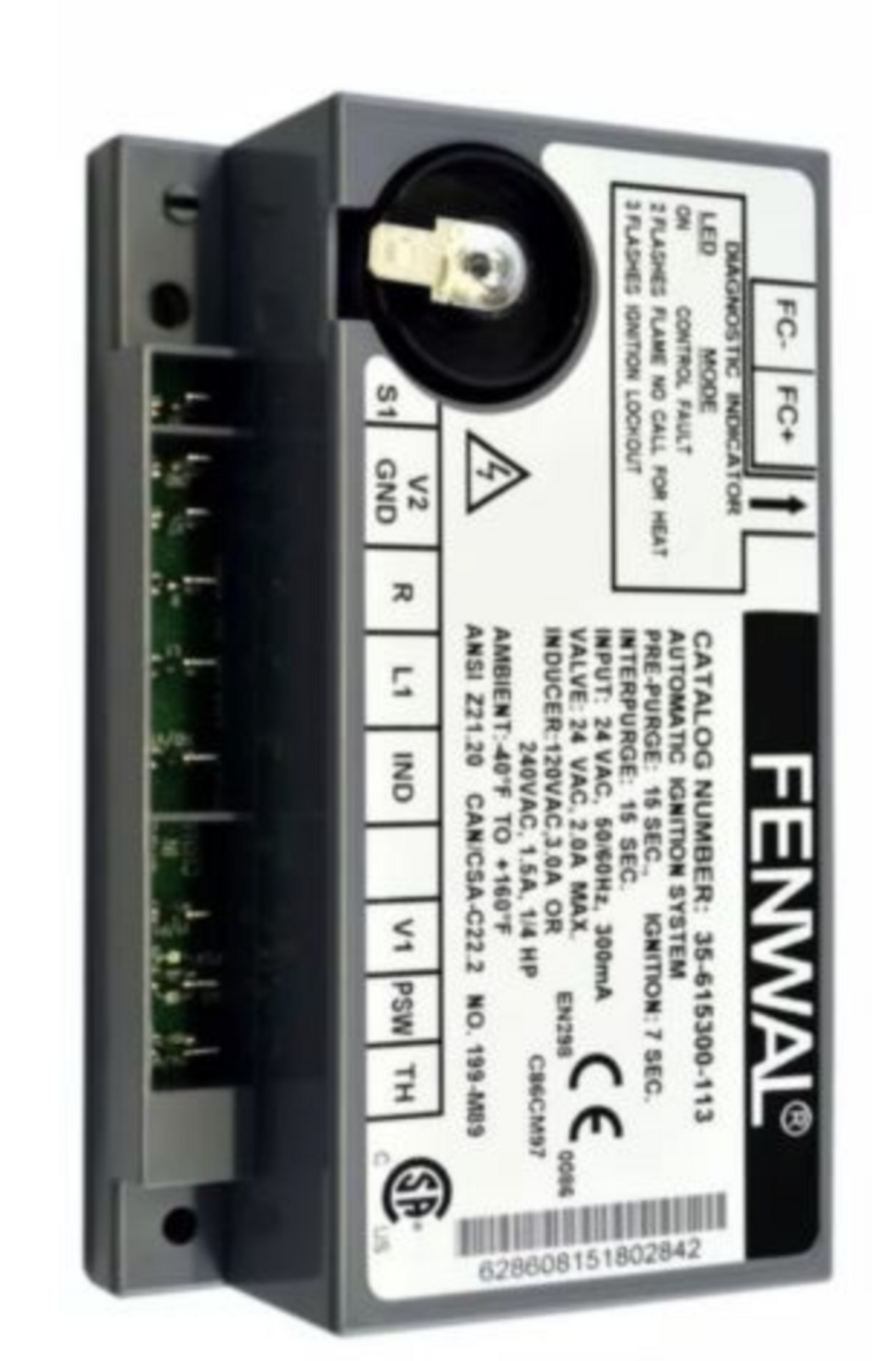

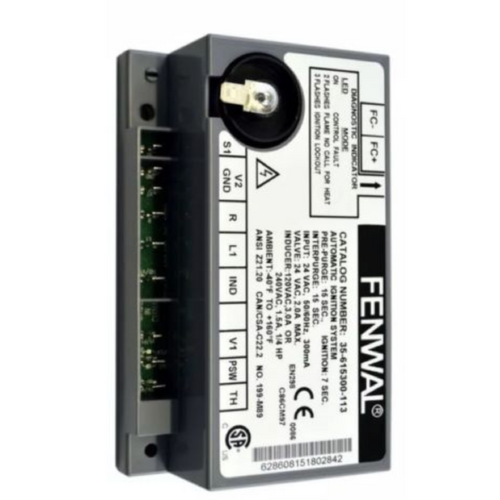

The Braemar BM3 Star Ignition Unit Fenwal 35-615300-113 is an essential part of the ignition system in gas ducted heaters, particularly in the Braemar BM3 Star series. Here's a more detailed look at this part:
The Fenwal 35-615300-113 ignition unit is used in gas ducted heating systems, particularly the Braemar BM3 Star series. This component ensures safe and efficient ignition of the gas burners in the heater, allowing the system to generate heat for your home or business. This unit works with electronic ignition systems and plays a crucial role in the ignition sequence of the gas furnace.
Ignition Control:
The ignition unit is responsible for providing a spark to ignite the gas inside the heater. It controls the timing of this spark to ensure that the gas burner ignites reliably when needed.
After ignition, the unit continues to monitor the flame to ensure a safe and stable combustion process.
Compatibility:
Designed for use in Braemar BM3 Star Gas Ducted Heaters, but the Fenwal 35-615300-113 may be compatible with other heating systems that use similar ignition technology.
The part number 628608 likely refers to the Braemar-specific designation or replacement number for this ignition unit.
Safety Features:
The unit integrates safety mechanisms to ensure the heater operates without the risk of gas leakage. It monitors the ignition process, ensuring the gas flow is safely initiated and shut off if any issues occur during the ignition sequence.
Electronic Ignition:
The ignition system works electronically rather than using a pilot light. This feature helps increase reliability and efficiency, as it eliminates the need for a constantly burning pilot light, saving energy in the process.
Compact and Durable Design:
The Fenwal 35-615300-113 unit is typically designed to be compact and robust, capable of withstanding the heat and environmental conditions found in heating systems.
It also has high-voltage capabilities, which is essential for producing the spark needed to ignite the gas.
Signal Processing: The ignition unit receives a signal from the thermostat to start the ignition sequence.
Spark Generation: It generates a high-voltage spark to ignite the gas once the system is ready for operation.
Safety Monitoring: The unit checks that the flame has successfully ignited, and if it doesn't, the gas flow is stopped to prevent unburnt gas from accumulating.
Gas Valve Control: After ignition, the unit helps control the gas valves, allowing a steady flow of gas to continue to the burner once it’s safely ignited.
This ignition unit is typically used in gas ducted heating systems that are installed in homes and commercial properties. It is a critical component that ensures the gas furnace ignites safely, producing heat efficiently. Without a functioning ignition unit, the heater would fail to start or operate properly.
If the ignition unit fails, it can lead to issues like no ignition, inconsistent heating, or gas leaks. If there is no spark or the flame doesn't stay lit, the heating system will not produce heat.
Diagnostic Error Codes: Some systems may display an error code when the ignition unit is not functioning correctly, indicating it needs to be replaced or serviced.
If your Braemar BM3 Star heater isn't igniting, or you’re experiencing other ignition-related issues, replacing the Fenwal 35-615300-113 ignition unit is often the solution.
Always consult with a qualified technician or refer to your heater’s manual for proper installation and safety procedures when replacing parts.
SKU | 19968 |
Brand | Braemar |
