Product Description

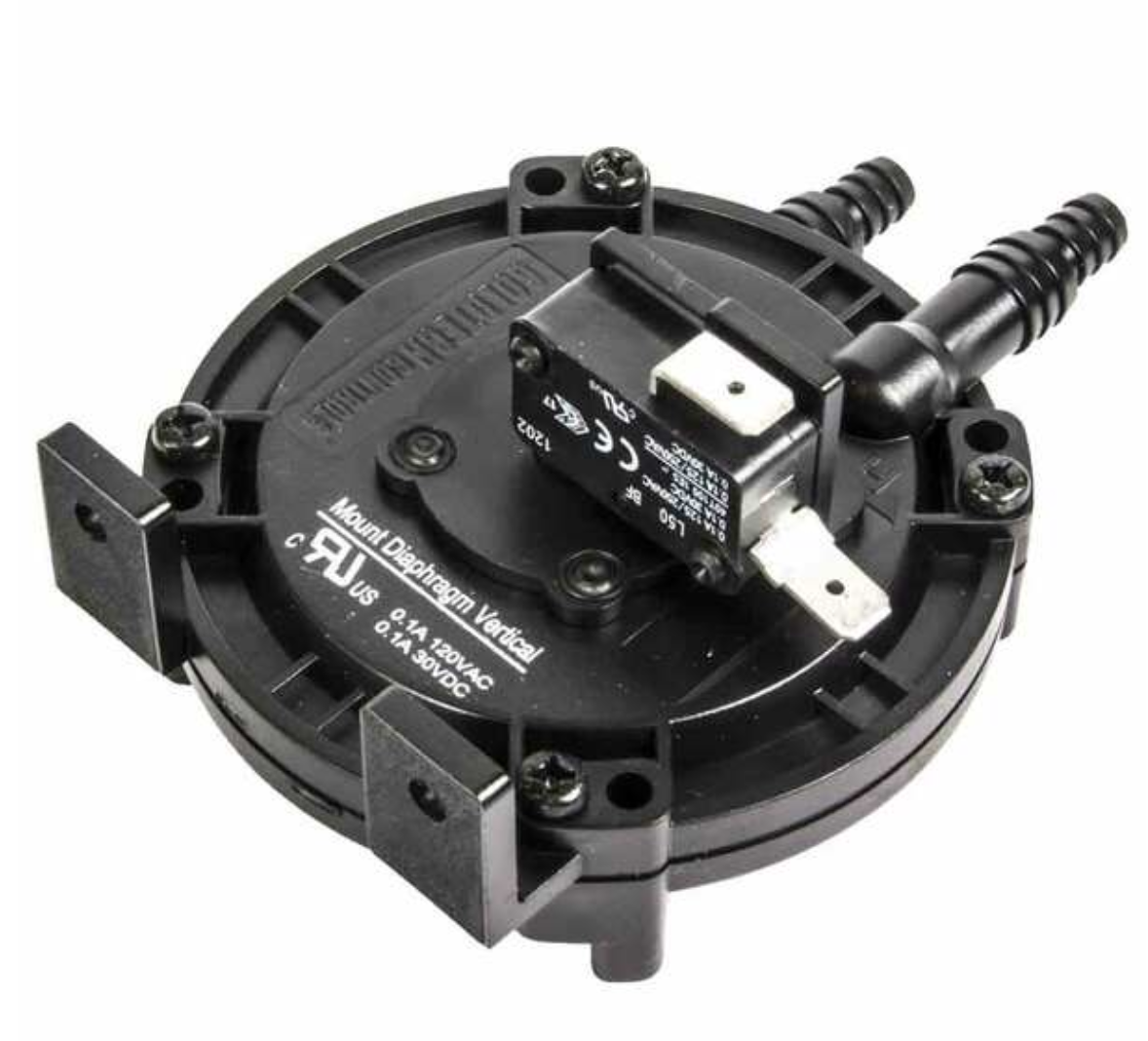

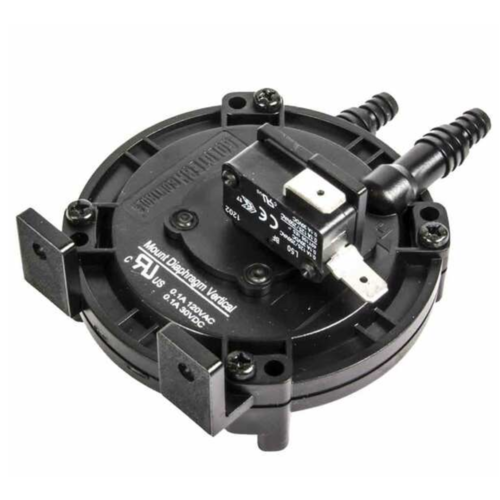

The Braemar Pressure Switch for Gas Heaters 55pa (Part No. 628547) is a crucial safety and operational component in Braemar gas heaters. It helps ensure that the heater functions efficiently and safely by monitoring and regulating the pressure within the system.
Key Features of the Braemar Pressure Switch for Gas Heaters 55pa (Part No. 628547):
-
Function:
- The pressure switch is responsible for detecting changes in the air pressure within the gas heater system. It ensures that the heater operates under the correct air pressure, which is essential for efficient combustion.
- If the air pressure goes outside the normal range, the switch will either activate or deactivate the system, preventing unsafe conditions.
-
Pressure Rating:
- The 55pa rating indicates that the switch is designed to activate or deactivate when the pressure reaches or drops below 55 Pascals (pa), which is the threshold for normal operation in this specific switch.
- This low-pressure setting is crucial for certain Braemar gas heaters that need to operate at lower pressure conditions for proper airflow and combustion.
-
Safety Function:
- This pressure switch acts as a safety mechanism that prevents the gas heater from running when the air pressure is incorrect. It helps avoid potential hazards such as:
- Improper combustion
- Gas leaks
- Overheating
-
Durable Construction:
- The switch is typically made of durable materials designed to withstand the heat and conditions within a gas heating system.
-
Compatibility:
- This specific pressure switch (Part No. 628547) is designed for use with Braemar gas heaters, ensuring proper functionality when integrated with these units.
- It is essential to use the correct pressure switch for your heater model to maintain safe and efficient operation.
Benefits of the Braemar Pressure Switch (55pa):
-
Enhanced Safety:
- The pressure switch ensures the gas heater only operates when air pressure is at the correct level, significantly enhancing safety by preventing issues like incomplete combustion or unsafe gas flow.
-
Improved Efficiency:
- By maintaining the correct air pressure, the pressure switch helps the gas heater operate efficiently, saving energy and reducing the risk of heater malfunction or system failure.
-
Easy Replacement:
- If the pressure switch fails, it can typically be replaced relatively easily with a new one (such as the Braemar Pressure Switch 628547), restoring full functionality to the system.
How to Replace the Braemar Pressure Switch (55pa):
-
Turn Off Gas and Power:
- Before starting any repair or replacement work, make sure to turn off the gas supply and disconnect the power to the gas heater to ensure safety.
-
Locate the Pressure Switch:
- The pressure switch is usually located near the combustion fan or blower motor. You may need to remove a cover or panel to access it.
-
Disconnect the Wires and Tubing:
- Once you locate the switch, carefully disconnect any electrical wires and pressure tubing connected to the old switch. Take note of the connections for when you install the new switch.
-
Remove the Old Pressure Switch:
- Remove the old pressure switch from its mounting bracket. It may be secured with screws or clips. Gently remove it.
-
Install the New Pressure Switch:
- Mount the new Braemar Pressure Switch 628547 in place, ensuring it is securely attached.
- Reconnect the electrical wires and pressure tubing according to the original configuration.
-
Test the Heater:
- Once the new pressure switch is installed, reconnect the power and gas supply. Turn the heater on and test it to make sure the new pressure switch is functioning correctly and the heater is operating safely.
Troubleshooting Common Issues with the Pressure Switch:
-
Heater Fails to Start:
- If the heater is not starting, the pressure switch might be faulty. It could be due to issues with air pressure or a malfunctioning switch.
-
Error Codes:
- Many modern Braemar gas heaters display error codes if the pressure switch is malfunctioning. Refer to your heater’s manual for troubleshooting error codes related to the pressure switch.
-
No Gas Flow:
- If the pressure switch detects improper air pressure, it will prevent the gas flow to the burner. If this happens, check for any blockages or restrictions in the airflow system, as well as verifying the switch's functionality.
-
Check the Airflow System:
- Ensure that the air intake and exhaust pathways are clear and free from obstructions. Blockages can affect the pressure, causing the switch to activate prematurely or malfunction.
Conclusion:
The Braemar Pressure Switch for Gas Heaters 55pa (Part No. 628547) is an important safety and operational component that ensures your Braemar gas heater operates within the correct air pressure range. By maintaining proper pressure, it protects the system from damage and ensures safe and efficient operation. If your pressure switch is malfunctioning, replacing it with a new one will restore proper functionality to your gas heater.
