Product Description

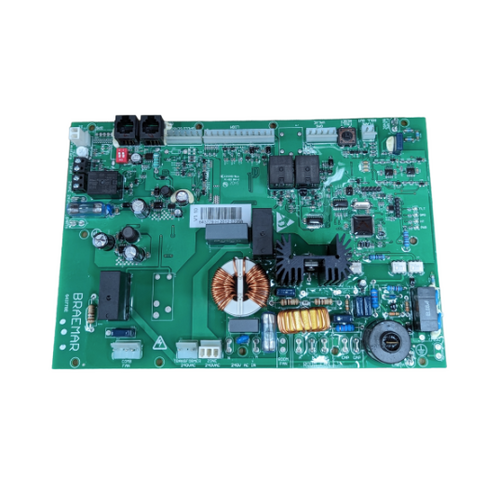

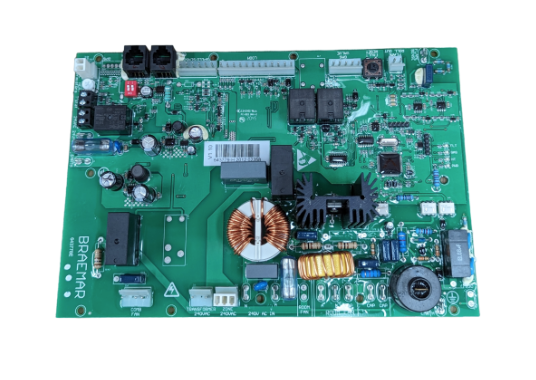

The Braemar BMQ 330 & X Gas Ducted Heater PCB Circuit Board ICS Stage 1 (with part numbers PN. 651422/651965) plays a crucial role in controlling and managing the functions of the Braemar BMQ 330 & X gas ducted heating systems. Here’s a detailed overview of what this part does, its features, and its importance in the system:
1. Function of the PCB (Printed Circuit Board):
- The PCB (Printed Circuit Board) is the central control unit of the Braemar BMQ 330 & X gas ducted heater. It manages and coordinates all the essential functions, such as the ignition of the gas burner, fan operation, temperature regulation, and safety systems.
- The ICS (Integrated Control System) Stage 1 refers to the initial operation phase in a multi-stage heating system, where the PCB manages the first stage of gas flow and fan activation, ensuring proper and safe operation.
2. Stage 1 Control:
- Stage 1 typically refers to the first stage of the heating operation. In a multi-stage system like the Braemar BMQ 330 & X, the system can adjust its heating output based on the demand, so Stage 1 represents the initial phase where the gas flow and fan are activated to begin the heating process.
- The ICS ensures that the heater operates efficiently by managing the transition between different stages of the heating cycle (from startup to full heating), improving overall energy efficiency.
3. Part Numbers (PN):
- The part numbers 651422 and 651965 refer to the specific versions of the PCB circuit board that are compatible with the Braemar BMQ 330 & X gas ducted heaters. These part numbers ensure the correct fit and functionality when replacing a malfunctioning PCB.
4. Key Features:
- Gas Control & Ignition: The PCB ensures proper ignition of the gas burner at the correct time. It manages the opening and closing of the gas control valve, which ensures the right amount of gas flows into the burner, facilitating combustion.
- Fan & Burner Coordination: The PCB controls the synchronization of the fan motor and the burner. This ensures that once the burner ignites, the fan is activated to circulate warm air throughout the ducts, providing consistent heating.
- Safety Monitoring: It includes multiple safety features, such as monitoring for flame failure, temperature extremes, and system malfunctions. If the PCB detects any problems (e.g., flame failure, overheating), it will automatically shut down the system to prevent hazards such as gas leaks or fire risks.
- Temperature Regulation: The PCB communicates with the thermostat and sensors to regulate the room temperature by adjusting the gas flow and fan speed as necessary.
5. Common Issues:
- Failure to Ignite: A malfunctioning PCB can prevent the gas burner from igniting. This may happen if the board fails to send the correct signal to open the gas valve or activate the ignition system.
- Erratic Heater Operation: If the PCB is faulty, it may cause the heater to behave unpredictably, such as turning off unexpectedly, failing to maintain the set temperature, or intermittent fan operation.
- Inconsistent Heating: The heater may fail to maintain a consistent temperature or fail to operate efficiently if the PCB is damaged or not functioning properly.
- Error Codes or Lockout: In many modern systems, a malfunctioning PCB will trigger an error code or a system lockout to protect against further damage. The system will shut down until the problem is addressed, often requiring PCB replacement.
6. Replacement:
- When to Replace: If you're experiencing issues such as the heater not starting, erratic operation, or error codes, replacing the PCB circuit board may be necessary.
- Part Number Compatibility: It’s important to replace the faulty PCB with the correct part number (651422 or 651965) to ensure full compatibility with your Braemar BMQ 330 & X heater.
- Installation Process: Replacing the PCB involves disconnecting both the gas and power supplies, removing the existing board, and installing the new one. Be sure to follow the manufacturer's instructions carefully for wiring connections and any calibration steps. After installation, check the system for proper operation.
Note: Due to the complexity and safety concerns when dealing with gas and electrical components, it is recommended to have a professional technician install the new PCB if you're not comfortable with gas appliance repair.
7. Maintenance:
- Routine Checks: Regular maintenance and inspection of the PCB can help detect issues before they cause significant problems. Look for signs of overheating, corrosion, or wear around the PCB.
- Cleaning: Ensure that the PCB and surrounding components are free from dust and debris. Dust accumulation can cause overheating or short-circuiting.
- Professional Servicing: If you notice anything unusual (e.g., error codes, strange operation), it’s best to have the system professionally serviced to check for issues with the PCB or other components.
8. Conclusion:
The Braemar BMQ 330 & X Gas Ducted Heater PCB Circuit Board ICS Stage 1 (PN. 651422/651965) is a critical component in managing and controlling the various systems within the heater. If your system is showing signs of malfunction such as failure to ignite, inconsistent heating, or error codes, replacing the PCB is likely to restore proper function. Ensure you are using the correct part number for a seamless replacement.
