Product Description

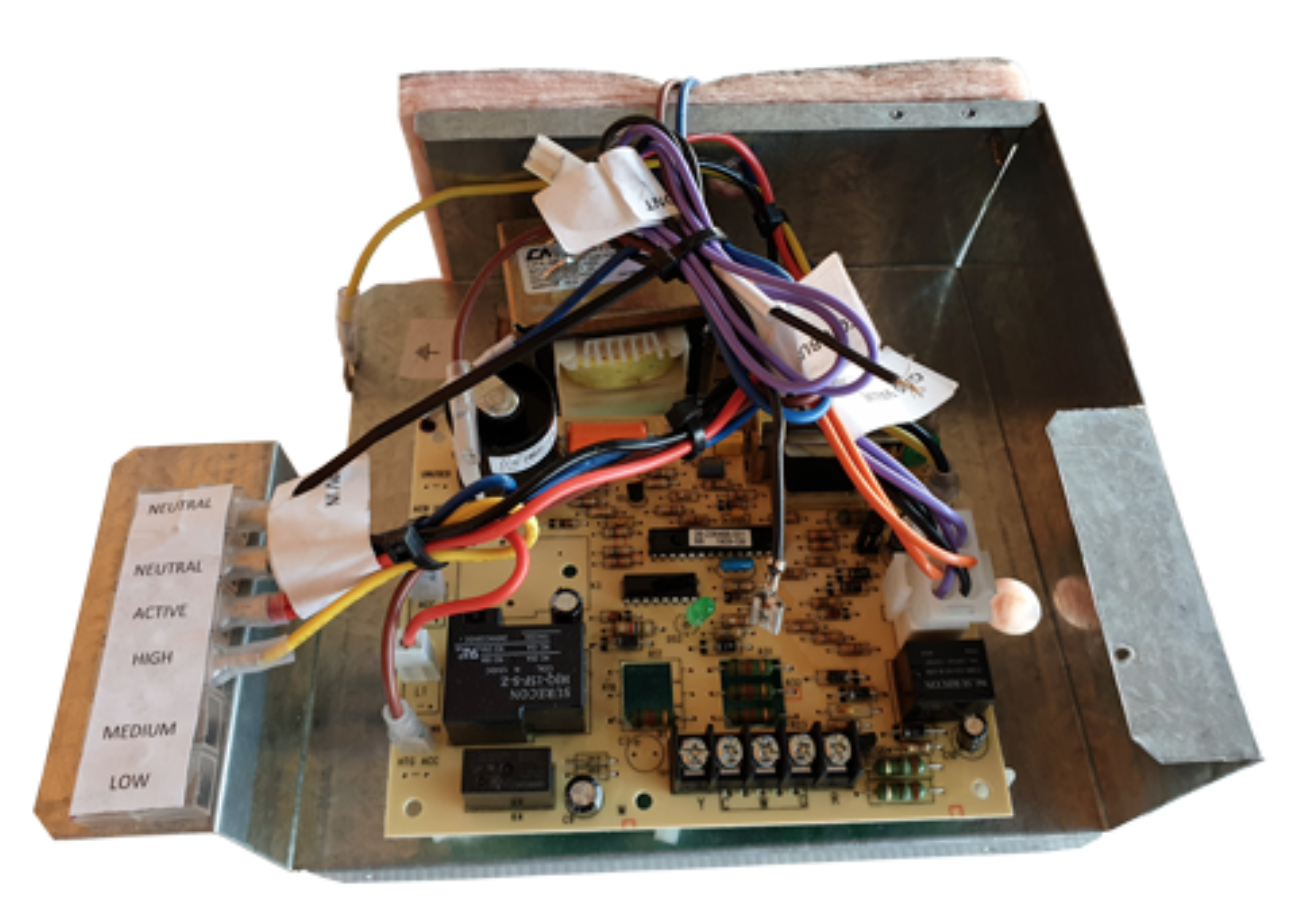

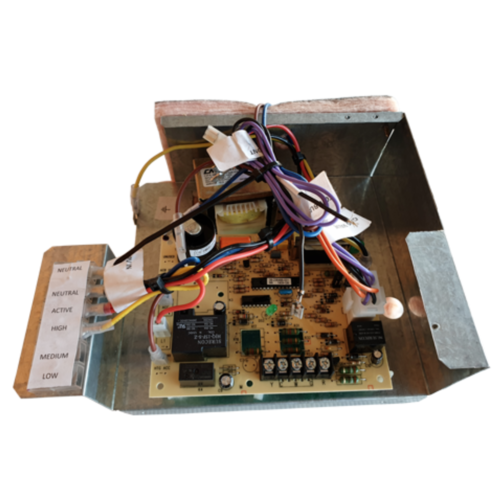

The Omega Ducted Gas Heater Circuit Board Control PCB IHE & EHE 100MJ-4 Star is a replacement control board for certain Omega ducted gas heaters. It is designed to regulate and control the operation of the gas heater, managing the various functions required for safe and efficient heating. Here is a detailed breakdown of the product:
Key Features:
-
Control PCB (Printed Circuit Board):
- The PCB is the central control board of the gas heater system. It controls multiple functions such as ignition, flame detection, and the regulation of the gas flow to the burner.
- It also manages the fan operation, ensuring that the heated air is distributed efficiently throughout the space.
-
Compatibility:
- The Omega Ducted Gas Heater Circuit Board is specifically designed for Omega gas heaters that fall within the IHE (Intermediate Heating Efficiency) and EHE (Enhanced Heating Efficiency) series.
- It is used in the 100MJ-4 Star models, which indicates a 100 megajoule (MJ) gas heater with a 4-star efficiency rating.
- This makes it ideal for homeowners or technicians looking to replace or repair the circuit board in these specific Omega ducted gas heaters.
-
Functions and Operation:
- Ignition Control: The PCB controls the ignition process by managing the spark generator and ensuring that the gas is ignited safely.
- Gas Valve Regulation: The PCB regulates the gas valve, controlling the flow of gas to the burner, ensuring efficient and safe combustion.
- Fan Control: The fan is controlled by the PCB to ensure optimal airflow and heat distribution throughout the space.
- Flame Detection: The PCB detects the presence of a flame to confirm that the gas is burning properly. If no flame is detected, it can shut off the gas supply to prevent any safety hazards.
- Error Code Display: Some PCB models can display error codes if there is an issue with the heater, making troubleshooting easier.
-
Durability and Design:
- The PCB is designed for reliability and durability under high-temperature conditions, which are typical in ducted gas heaters. It is built to withstand the operating environment and provide consistent performance.
-
Safety Features:
- Includes built-in safety mechanisms such as flame failure detection, which automatically shuts off the gas supply if a flame is not detected, preventing dangerous situations such as gas leakage.
- Also includes over-temperature protection and other safety features to protect the system and users.
-
Replacement Part:
- This circuit board is typically used as a replacement part when the original PCB has failed or is malfunctioning. It's important to ensure compatibility with your specific model of Omega ducted gas heater before purchasing.
Specifications:
- Model: Omega Ducted Gas Heater Circuit Board Control PCB
- Compatibility: Designed for IHE & EHE 100MJ-4 Star Omega Ducted Gas Heaters
- Functions: Ignition control, fan regulation, gas valve control, flame detection, and error code display.
- Safety: Includes features like flame detection and temperature protection.
- Application: Replacement part for malfunctioning or damaged circuit boards in compatible Omega ducted gas heaters.
Applications:
- Gas Heater Repair:
- If the control board in your Omega ducted gas heater is malfunctioning, this PCB is designed to replace the faulty part and restore the heater's functionality.
- Professional Service:
- Gas technicians often use this replacement PCB to service and repair Omega ducted gas heating systems, ensuring the system operates correctly and safely.
- Home Use:
- For homeowners with Omega ducted gas heaters, this PCB is essential if the original control board fails, helping restore heating capabilities in the home.
Considerations:
-
Installation:
- Replacing the PCB in a gas heater can be complex, and it’s crucial that it is done by a professional gas technician. Incorrect installation can lead to safety hazards like gas leaks or improper operation.
-
Compatibility:
- Ensure that this PCB is compatible with your specific Omega gas heater model. Double-check the model number of your heater and verify it matches the specifications for this control board.
-
Troubleshooting:
- Before replacing the PCB, ensure that the issue is indeed with the circuit board. Other components, such as the gas valve, thermocouple, or flame sensor, could also be contributing to the heater's malfunction. A professional diagnostic is recommended.
Conclusion:
The Omega Ducted Gas Heater Circuit Board Control PCB IHE & EHE 100MJ-4 Star is a vital replacement part for Omega ducted gas heaters, ensuring the safe and efficient operation of the heating system. It manages key functions such as ignition, gas flow regulation, fan control, and flame detection, making it essential for maintaining the heater's performance. Whether you are replacing a faulty PCB or performing maintenance on your system, this control board is designed for durability, reliability, and safety. Always ensure installation is performed by a qualified technician to maintain system integrity and safety.
