Product Description

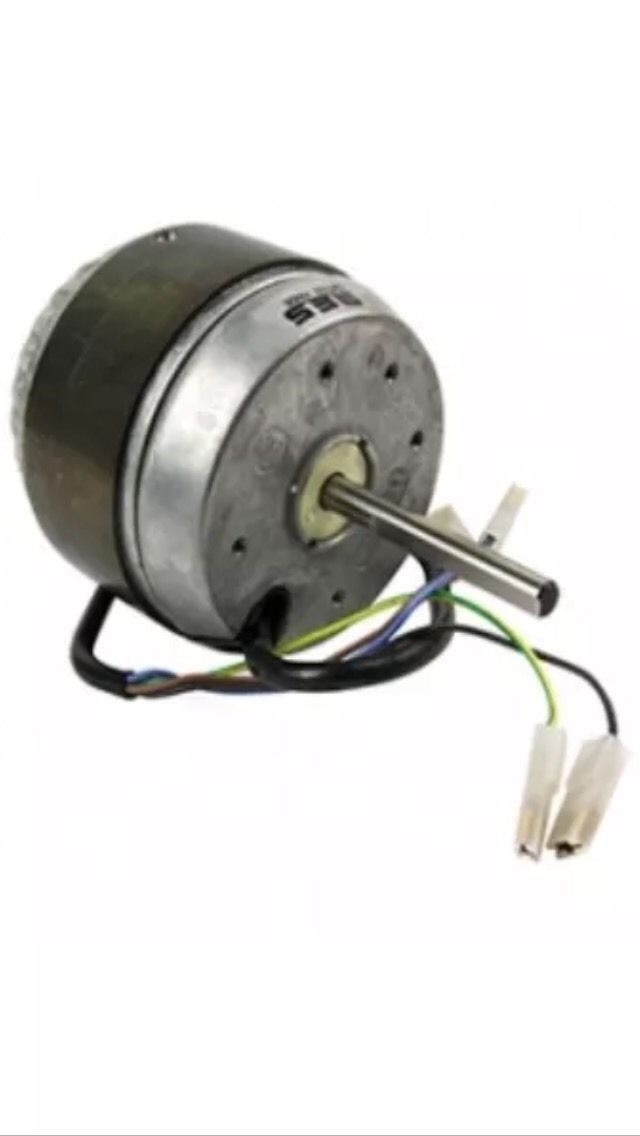

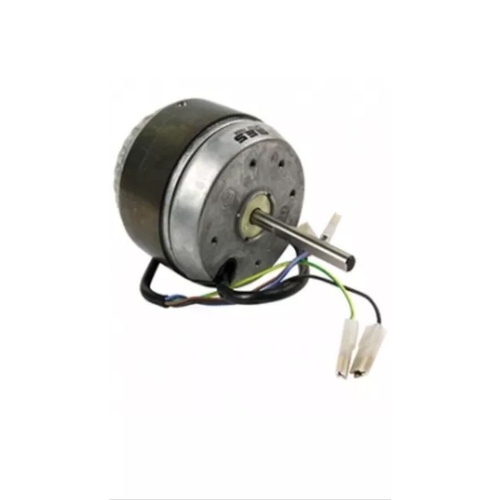

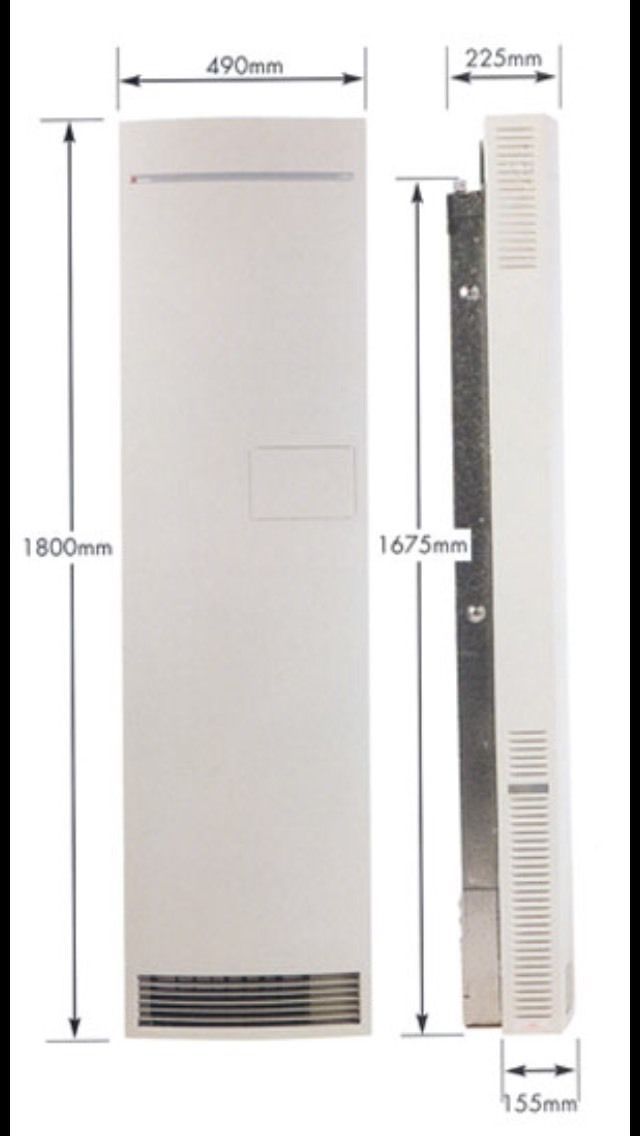

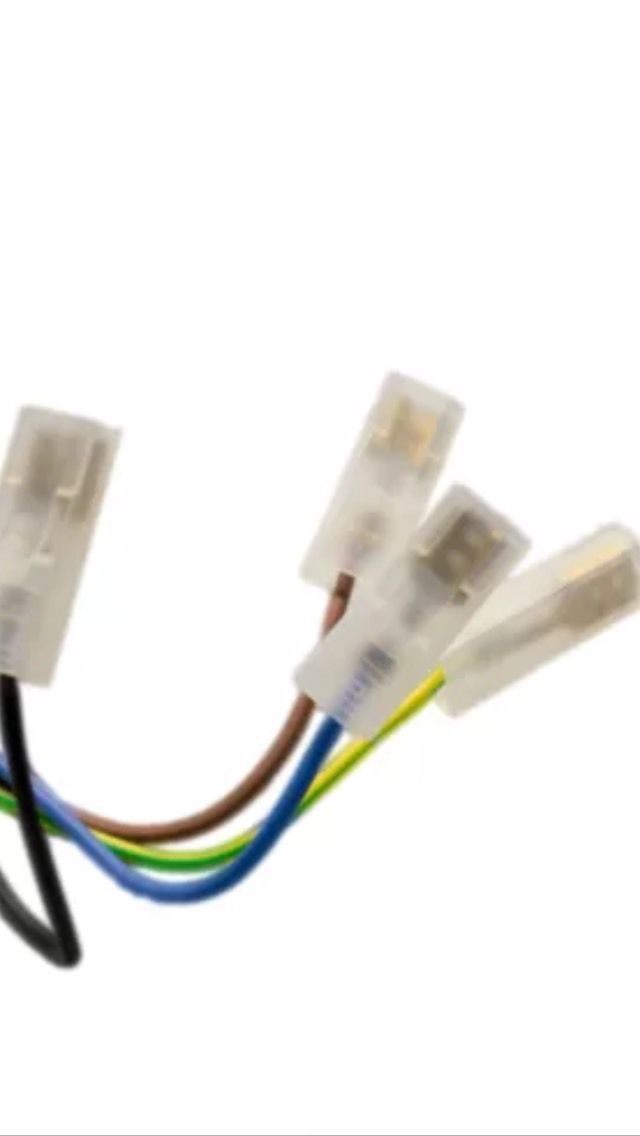

The Braemar Fan Motor (Part No. 612096) is designed for use in the Braemar WF2000, WF30, and WF40 wall furnace models. This fan motor is a critical component in the proper functioning of these wall furnaces, providing the necessary airflow for heat distribution and maintaining comfortable room temperatures.
Key Features and Function of the Braemar Fan Motor (Part No. 612096):
-
Compatible with Braemar Wall Furnaces:
- Specifically designed for Braemar wall furnace models, including the WF2000, WF30, and WF40. It ensures compatibility with these units, providing seamless operation when replacing a faulty motor.
-
Efficient Air Circulation:
- The fan motor circulates air through the furnace, pushing the heated air out into the room. This ensures that warm air is evenly distributed, contributing to the heater's ability to maintain a comfortable temperature across your living space.
-
Reliable Performance:
- The motor is engineered to provide reliable operation over long periods of time. It is designed to handle the demands of circulating air in wall furnaces, making it a durable and essential part of the system.
-
240V Operation:
- The fan motor typically operates at 240V, which is standard for many household gas appliances, ensuring the heater can be used in most residential settings without electrical concerns.
-
Durability:
- Made with durable materials, the fan motor is built to withstand the constant operation of a gas wall furnace, where consistent airflow is necessary to prevent overheating or inefficiency.
-
Variable Speed Control (If Applicable):
- Some models of Braemar fan motors are equipped with variable speed control, which allows the fan to adjust its speed based on the furnace's heating requirements. This ensures energy efficiency and better temperature control.
Symptoms of a Faulty Fan Motor:
-
No Airflow:
- If the motor is faulty, you may experience a lack of airflow or the heater failing to distribute warm air, which results in cold spots and ineffective heating.
-
Unusual Noises:
- A failing motor may emit grinding, buzzing, or rattling noises. These noises are often due to worn bearings, dust buildup, or motor malfunction.
-
Inconsistent Fan Speeds:
- If the motor isn't working correctly, the fan might fail to adjust to the necessary speeds, causing irregular airflow or the fan running at only one constant speed.
-
Overheating:
- A malfunctioning fan motor can cause the furnace to overheat as the heat exchanger may not be cooled efficiently, leading to possible system shutdowns or damage to other components.
-
Error Codes:
- Many modern Braemar wall furnaces are equipped with error codes that might indicate a fan motor failure. If the fan motor isn't operating properly, the system may display an error on the control panel.
How to Replace the Braemar Fan Motor (Part No. 612096):
-
Turn Off Power and Gas Supply:
- Ensure that the gas heater is turned off and that both the power and gas supply are disconnected before working on the furnace to avoid any potential safety risks.
-
Remove the Access Panel:
- Remove the access panel or cover to expose the fan motor. You may need a screwdriver or drill to remove screws or fasteners that secure the cover in place.
-
Disconnect the Old Fan Motor:
- Disconnect the wiring from the old fan motor. Take note of how the wiring is connected so that you can correctly wire the new motor.
- Remove any screws, bolts, or fasteners securing the motor in place.
-
Install the New Fan Motor:
- Place the new fan motor (Part No. 612096) into position. Secure it with the appropriate screws or fasteners.
- Reconnect the wiring to the new motor. Make sure each connection is secure and correctly aligned according to the manufacturer’s wiring diagram or instructions.
-
Reassemble the Furnace:
- Once the fan motor is installed and connected, replace the access panel or cover and secure it with the appropriate screws or fasteners.
-
Test the System:
- Turn the gas supply and power back on. Test the fan motor by running the furnace to check the fan's operation. Make sure the fan is spinning correctly, and verify that warm air is being circulated properly.
-
Check for Leaks or Malfunctions:
- Inspect the furnace for any gas leaks or electrical issues and make sure the unit is functioning as expected. Ensure that the motor is not making any unusual noises and is adjusting to the required speed settings.
Maintenance Tips:
-
Regular Cleaning:
- Clean the fan blades and surrounding areas regularly to prevent dust and dirt buildup, which can impede airflow and cause the motor to work harder.
-
Check for Debris:
- Inspect the motor for obstructions or debris that might prevent it from operating properly. Ensure that the fan blades are clear and can spin freely.
-
Lubricate the Bearings:
- If the motor has accessible bearings, consider lubricating them regularly to reduce friction and ensure smooth operation. Always follow manufacturer recommendations.
-
Monitor for Unusual Noises:
- If you notice any strange sounds coming from the motor, address the issue immediately. Unusual noises may indicate problems with the bearings or a buildup of debris, which can lead to further damage if left unchecked.
-
Check Wiring and Connections:
- Periodically inspect the wiring and electrical connections to ensure that there are no loose or damaged wires. Tighten any loose connections and replace any frayed or damaged wires to avoid electrical malfunctions.
Conclusion:
The Braemar Fan Motor (Part No. 612096) is an essential part of the Braemar WF2000, WF30, and WF40 wall furnaces. It is designed to ensure efficient airflow and proper heat distribution, helping maintain comfortable temperatures in your home. If you're experiencing poor airflow, unusual noises, or inconsistent fan speeds, replacing the motor may restore your heater's performance.
