Product Description

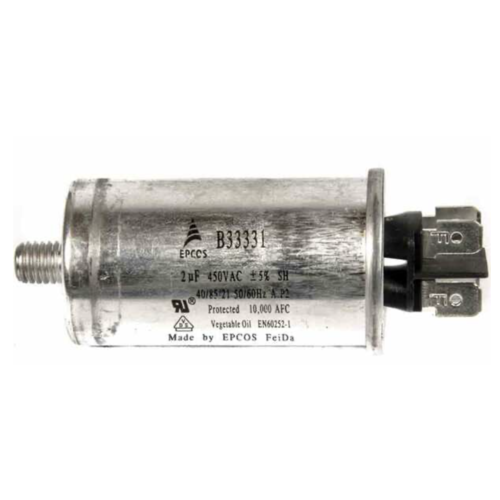

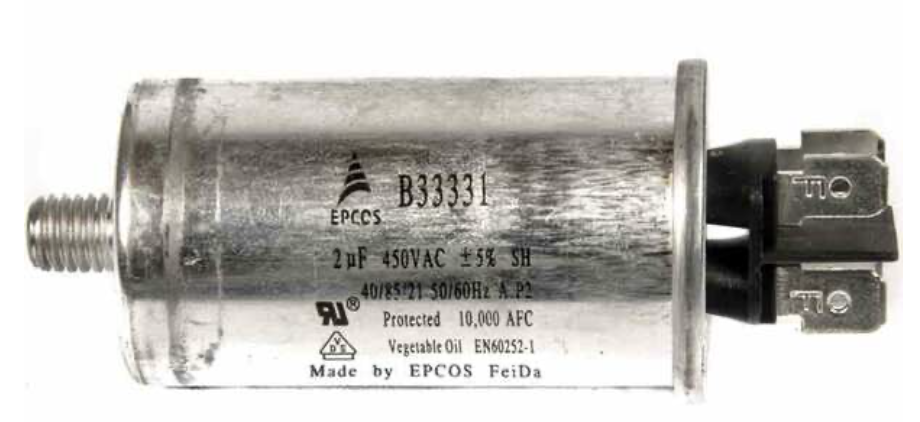

The Braemar Gas Heater Capacitor (Part No. 612089) is an important component designed for Braemar gas heaters, specifically for the WF2000 model. This capacitor is responsible for storing electrical energy and providing a boost to the fan motor during startup, helping it reach the required speed efficiently.
Key Features and Function of the Braemar Gas Heater Capacitor (Part No. 612089):
-
Capacitance Rating:
- This capacitor has a 2UF (microfarad) capacitance, which indicates the amount of electrical energy it can store and release. The 2UF rating is specifically suitable for the fan motor in the Braemar WF2000 gas heater.
-
Voltage Rating:
- The capacitor is rated for 250V, meaning it is designed to handle voltages up to 250 volts without the risk of failure, which is important for the safe operation of the heater.
-
Startup Aid:
- The primary function of this capacitor is to assist the fan motor during its startup phase. By providing a surge of energy, the capacitor helps the motor start more easily and run more efficiently.
-
Improved Motor Performance:
- By ensuring the fan motor gets the proper starting voltage, the capacitor enhances the motor’s performance and prevents strain. This leads to better airflow within the heater and more efficient operation.
-
Durability:
- Braemar capacitors, including this model, are built to be durable and reliable, providing long-lasting performance under the normal operating conditions of a gas heater.
Symptoms of a Faulty Capacitor (Part No. 612089):
-
Fan Motor Fails to Start:
- If the capacitor is faulty, the fan motor may struggle to start or fail to start altogether. The motor may hum or make a clicking sound without spinning up to speed.
-
Intermittent Fan Operation:
- A failing capacitor may cause the fan motor to operate erratically, with the fan sometimes working and sometimes not. This may result in inconsistent heating or improper airflow.
-
Motor Overheating:
- A malfunctioning capacitor can cause the fan motor to run under strain, which can lead to overheating and potential damage to the motor.
-
No Airflow:
- If the capacitor has failed and the fan motor cannot start or run efficiently, there will be no airflow, which means the heater won't properly circulate warm air throughout the space.
-
Unusual Noises:
- The fan motor may emit unusual humming or buzzing sounds if the capacitor is not providing the necessary electrical boost during startup.
How to Replace the Braemar Gas Heater Capacitor (Part No. 612089):
-
Turn Off Power and Gas Supply:
- Before working on the heater, make sure to turn off both the power supply and the gas supply to avoid any electrical or fire hazards.
-
Access the Capacitor:
- Open the access panel on your Braemar WF2000 gas heater. This will give you access to the capacitor and other internal components. You may need to remove screws or fasteners to take off the panel.
-
Disconnect the Old Capacitor:
- Carefully disconnect the wires from the faulty capacitor. Take note of the wiring configuration or use a photo to ensure the new capacitor is connected the same way.
-
Remove the Faulty Capacitor:
- The capacitor is likely secured with brackets or clips. Remove the capacitor by carefully pulling it out of its mounting position.
-
Install the New Capacitor:
- Place the new Braemar Gas Heater Capacitor (Part No. 612089) in the same position as the old one. Secure it with clips or brackets as needed to keep it firmly in place.
-
Reconnect the Wiring:
- Reconnect the wires to the new capacitor according to the original configuration. Double-check that each wire is securely connected to the correct terminal.
-
Reassemble the Heater:
- Once the new capacitor is installed and wired, replace the access panel and secure it with screws or fasteners.
-
Turn on the Heater and Test:
- Restore the power and gas supply and turn the heater on. Test the fan motor to ensure it starts properly and operates smoothly. Check for any unusual noises or issues with airflow.
-
Monitor for Any Problems:
- After replacing the capacitor, monitor the heater for a few hours to ensure everything is functioning properly. If you experience any further issues, consult the user manual for troubleshooting or seek professional help.
Maintenance Tips for the Braemar Gas Heater Capacitor:
-
Inspect Regularly:
- Periodically check the capacitor for any signs of wear or damage. If you notice any bulging, leaking, or discoloration, it may be time to replace the capacitor.
-
Clean the Area:
- Ensure that the area around the capacitor and fan motor is free from dust or debris, as this can affect performance and cause overheating.
-
Avoid Overloading:
- Avoid overloading the fan motor by ensuring the heater is running under appropriate conditions. This helps prevent strain on the capacitor and motor.
-
Check for Overheating:
- If the capacitor or fan motor seems to be overheating, check the ventilation around the heater to make sure it’s not obstructed.
Conclusion:
The Braemar Gas Heater Capacitor (Part No. 612089) plays a critical role in the smooth operation of your Braemar WF2000 gas heater by assisting the fan motor during startup and improving overall motor performance. If you notice fan motor issues such as failure to start, intermittent operation, or no airflow, a faulty capacitor may be to blame.
Replacing the capacitor with the new Part No. 612089 will help restore proper operation to the heater, ensuring that the fan motor runs efficiently, and warm air is circulated throughout the space.
