Product Description

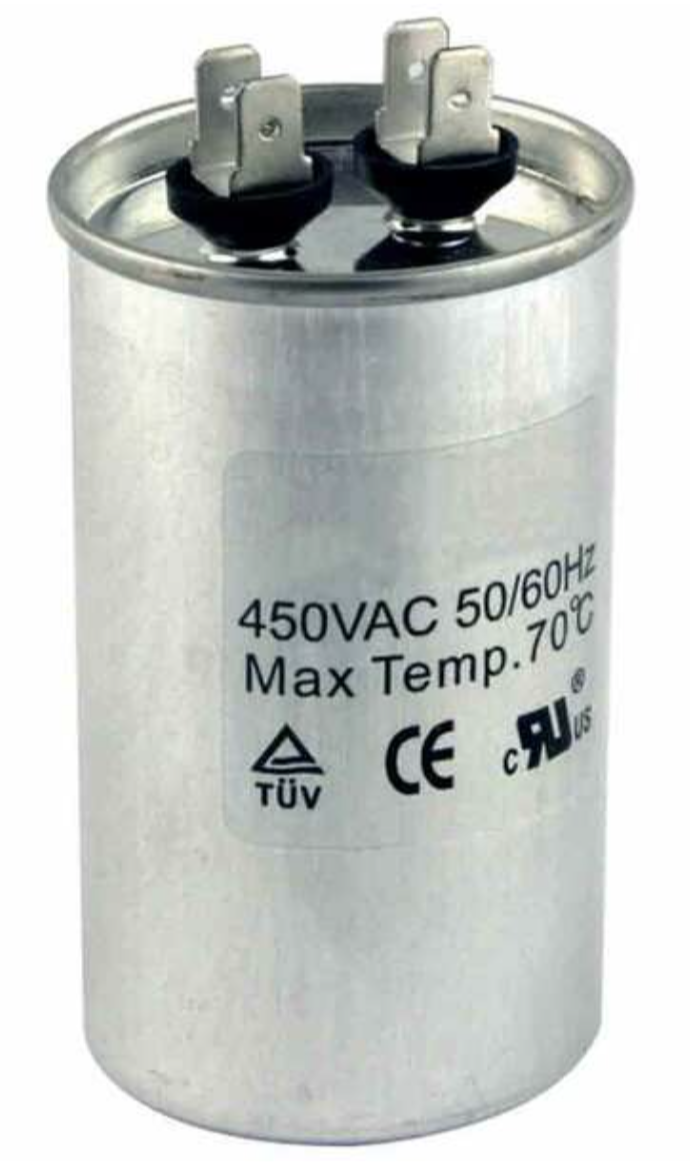

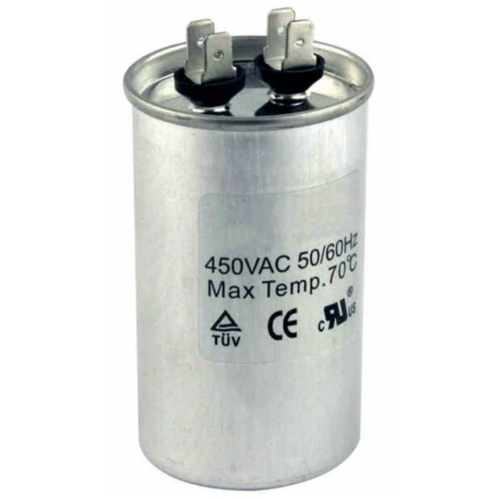

The Braemar Gas Heater Run Capacitor 450V 20 MFD is an important electrical component used in Braemar gas heaters. Capacitors like this one are typically involved in the operation of the motor, often associated with the fan motor or blower motor. The run capacitor helps the motor run efficiently by improving the motor's electrical efficiency, especially during continuous operation.
Key Features and Functions of the Braemar Gas Heater Run Capacitor 450V 20 MFD:
-
Motor Efficiency:
- The run capacitor is designed to improve the efficiency of AC motors (such as those powering the fan or blower) by supplying a phase shift to the motor's electrical current. This results in smoother and more efficient operation, reducing the strain on the motor.
-
450V and 20 MFD:
- The 450V rating indicates the maximum voltage the capacitor can handle without breaking down, which ensures it is built to withstand high electrical loads.
- The 20 MFD (microfarads) rating refers to the capacitance value, which is a measure of the capacitor's ability to store an electrical charge. A 20 MFD capacitor is a standard size for many motor applications, offering the right amount of electrical support for the motor in your Braemar gas heater.
-
Continuous Operation:
- This type of capacitor is used in applications where the motor runs continuously, such as in the heating system’s blower or fan. It ensures that the motor remains operational without overheating or excessive wear.
-
Long-Term Durability:
- The 450V 20 MFD run capacitor is designed for long-term use, withstanding high voltages and constant motor operation. This durability is essential in keeping the heater functioning reliably throughout its lifespan.
Symptoms of a Faulty Run Capacitor:
-
Motor Won't Start:
- If the run capacitor fails, the motor may not start or may have difficulty starting. This is because the capacitor is not providing the necessary phase shift to help the motor get going.
-
Intermittent Operation:
- A faulty capacitor may cause the motor to run intermittently or fail to maintain consistent operation. You might notice the fan or blower turning on and off unexpectedly.
-
Unusual Noises:
- A failing capacitor can cause the motor to struggle, which may result in unusual sounds such as humming, buzzing, or grinding noises from the motor.
-
Overheating:
- If the capacitor is no longer working properly, the motor may overheat. This is due to the motor drawing more current than usual, leading to excessive heat buildup.
-
Error Codes:
- Some Braemar gas heaters may display error codes if there is a problem with the capacitor or fan motor. These codes might indicate issues related to motor operation or a failed capacitor.
How to Replace the Braemar Gas Heater Run Capacitor 450V 20 MFD:
-
Turn Off Power:
- Ensure the gas supply is turned off, and disconnect the heater from the electrical power supply before starting any repair work to avoid electrical shocks or gas leaks.
-
Access the Heater's Internal Components:
- Open the access panel on the Braemar gas heater to locate the fan motor or blower motor. The run capacitor is usually located near the motor and can be easily identified by its cylindrical shape.
-
Disconnect the Old Capacitor:
- Take a note of the capacitor’s connections and disconnect the old capacitor from the motor and the control board. You may need to remove screws or clips that hold it in place.
-
Remove the Faulty Capacitor:
- Carefully remove the old capacitor from the mounting bracket or location. Be sure to handle it gently, as capacitors can be fragile.
-
Install the New Capacitor:
- Place the new 450V 20 MFD run capacitor in the same position as the old one. Make sure it is securely mounted and the connections are properly attached to the motor and the control board.
-
Reconnect the Capacitor:
- Connect the new run capacitor according to the wiring diagram or the connections from the previous capacitor. Ensure the leads are securely attached and the wiring is correct.
-
Reassemble and Test the Heater:
- Once the new capacitor is in place and all connections are secure, reassemble the heater by closing the access panel. Turn on the gas and power to the unit, and test the heater to ensure it operates correctly.
-
Monitor the Heater:
- Observe the operation of the heater. Ensure the fan motor is running smoothly, and check for any unusual sounds or issues with heating.
Maintenance Tips for the Braemar Gas Heater Run Capacitor:
-
Regular Inspections:
- Regularly inspect the run capacitor for signs of wear, such as bulging, discoloration, or leakage. If you notice any of these signs, it’s a good idea to replace the capacitor before it fails completely.
-
Motor Care:
- Maintain the fan motor or blower motor in good condition by cleaning any dust or debris that could cause the motor to overheat. A clean motor will extend the life of the run capacitor.
-
Avoid Overloading:
- Overloading the motor can shorten the lifespan of the capacitor. Ensure that the motor is not operating under excessive load, as this could lead to capacitor failure.
-
Keep the Heater Clean:
- Dust and dirt can accumulate around the motor and capacitor, which may interfere with proper operation. Regularly clean the internal components to ensure smooth operation.
Conclusion:
The Braemar Gas Heater Run Capacitor 450V 20 MFD plays a critical role in ensuring the efficient operation of the fan motor or blower motor in Braemar gas heaters. If you are experiencing motor issues such as failure to start, intermittent operation, or unusual sounds, a faulty capacitor could be the cause. Replacing the capacitor with the correct 450V 20 MFD model will restore your heater’s functionality and help maintain safe and effective operation.
By following the proper installation steps and maintaining the capacitor and motor, you can ensure that your Braemar gas heater continues to run efficiently for years to come.
