Product Description

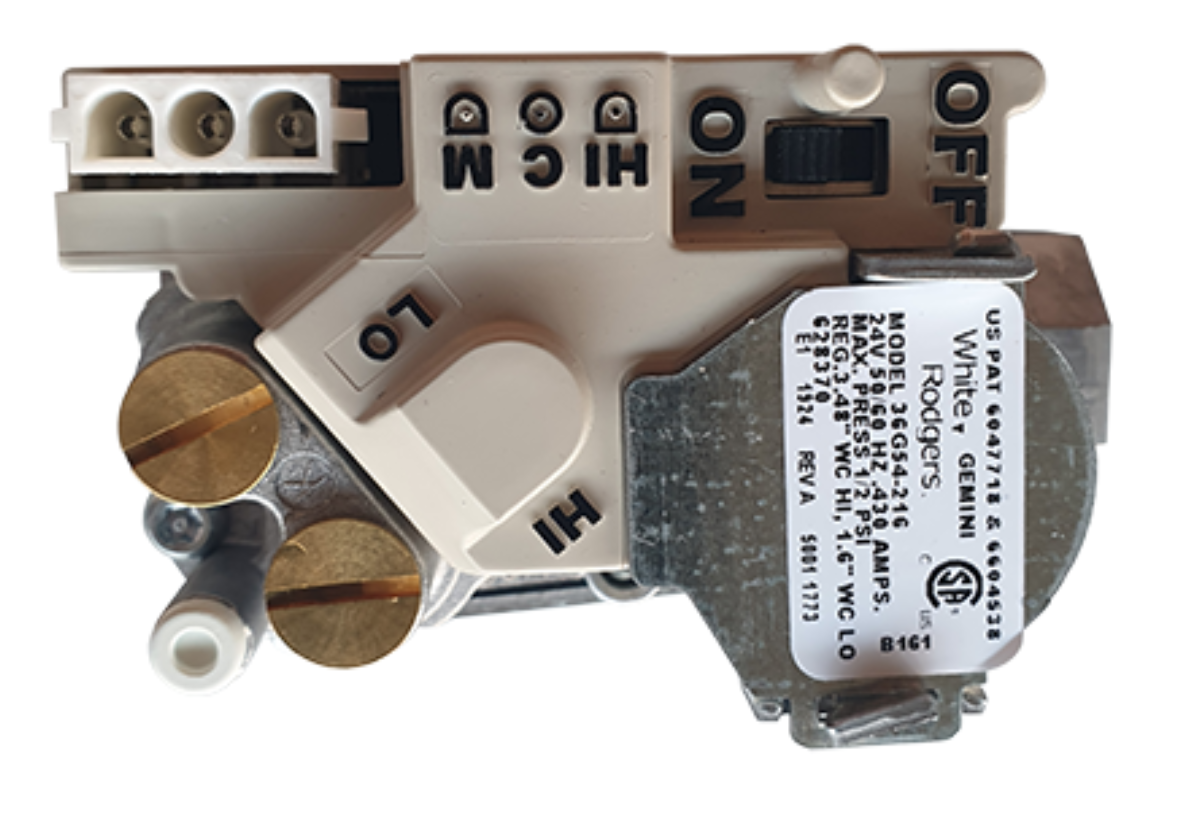

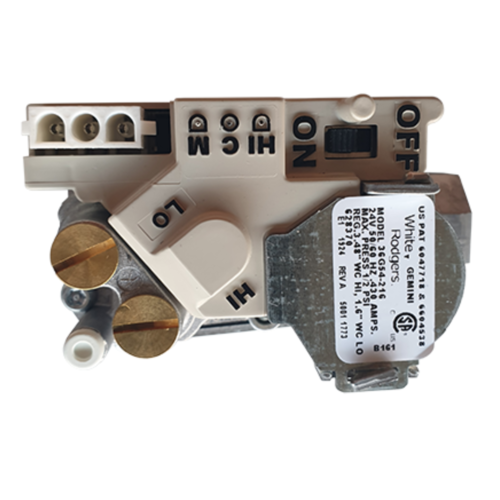

The Braemar Gas Heater White Rodgers Two-Stage Gemini Gas Control Valve NG 36G54-216 (Part No. 628370) is a critical component used in Braemar gas heaters. It is designed to control the flow of natural gas (NG) to the heater's burner, allowing the system to operate safely and efficiently.
Key Features of the Braemar Gas Heater White Rodgers Two-Stage Gemini Gas Control Valve NG 36G54-216:
-
Two-Stage Gas Control:
- The two-stage design of the gas control valve allows the heater to operate at two different levels, providing enhanced control over the gas flow. The first stage controls the pilot light, and the second stage regulates the main burner gas flow.
- This two-stage operation allows for more efficient combustion and better temperature control within the heater, ensuring it performs optimally under various heating demands.
-
Compatibility with Natural Gas:
- The 36G54-216 model is specifically designed to be used with natural gas (NG) systems, meaning it is built to handle the pressures and characteristics associated with natural gas.
-
Safety Features:
- The gas control valve is equipped with several safety mechanisms, including a thermocouple or flame sensor connection that ensures gas is only released when a flame is present. If no flame is detected, the gas supply is automatically shut off, preventing gas leaks or unsafe conditions.
-
Pressure Regulation:
- The gas control valve is also responsible for regulating the gas pressure to ensure that the Braemar gas heater receives the appropriate amount of gas at all times, optimizing efficiency and preventing damage to the system.
-
Durability:
- White Rodgers is a reputable brand known for manufacturing durable and reliable components. The 36G54-216 Gemini valve is built to withstand continuous operation and provide long-lasting service in gas heaters.
Symptoms of a Faulty Gas Control Valve:
A malfunctioning gas control valve can lead to a number of operational issues. Common symptoms of a faulty Braemar gas control valve include:
-
No Heating:
- If the valve is not regulating the gas flow properly, the heater may fail to produce heat, even if the system is powered on and the gas supply is active.
-
Gas Leaks:
- A damaged or malfunctioning valve may result in gas leaks, which can be dangerous. If you suspect a gas leak, it is important to shut off the gas supply immediately and seek professional assistance.
-
Erratic Heating:
- If the valve is not properly controlling the gas flow, the heater may operate erratically, causing the temperature to fluctuate or the burner to cycle on and off unexpectedly.
-
Error Codes or Fault Indicators:
- Many Braemar gas heaters display error codes when a gas control valve is malfunctioning. This can include issues related to ignition, gas pressure, or gas flow.
-
Failure to Ignite:
- If the valve is not opening or closing properly, the heater may fail to ignite because the burner is not receiving the required amount of gas.
How to Replace the Braemar Gas Heater White Rodgers Two-Stage Gemini Gas Control Valve NG 36G54-216:
-
Turn Off Gas and Power:
- Before performing any work, ensure the gas supply is turned off, and the heater is disconnected from the power source to avoid any risk of electrical shock or gas leaks.
-
Locate the Gas Control Valve:
- The gas control valve is typically located near the burner assembly or gas inlet. You may need to remove the front access panel or casing to access the valve.
-
Disconnect the Existing Gas Control Valve:
- Carefully disconnect the gas lines and any electrical connections attached to the old gas control valve. Take note of how the valve is connected for proper installation of the new one.
-
Remove the Faulty Valve:
- Once all connections are disconnected, carefully remove the faulty gas control valve from its mounting position.
-
Install the New Gas Control Valve:
- Place the new White Rodgers Two-Stage Gemini Gas Control Valve NG 36G54-216 in the same location as the old valve. Ensure it is securely mounted and aligned with the gas lines.
-
Reconnect Gas Lines and Electrical Components:
- Reconnect the gas supply lines and any electrical connections to the new gas control valve, following the original configuration.
-
Test the System:
- Once the valve is installed, reconnect the power and turn on the gas supply. Test the heater by setting it to operate and ensure it ignites properly. You should also check for any signs of gas leakage and monitor the system for proper operation.
Maintenance Tips for the Braemar Gas Heater Gas Control Valve:
-
Regular Inspections:
- Perform regular inspections of the gas control valve to check for signs of wear, damage, or buildup of dirt and debris. Cleaning the valve periodically can help prevent malfunctions.
-
Check for Gas Leaks:
- Ensure that all connections to the gas control valve are tightly secured and there are no signs of gas leaks. If you smell gas or hear hissing sounds near the valve, shut off the gas supply immediately and contact a qualified technician.
-
Monitor Heater Performance:
- Keep an eye on the performance of the gas heater. If you notice irregular heating, cycling issues, or error codes, it may indicate an issue with the gas control valve.
-
Professional Servicing:
- If you are experiencing issues with the gas control valve, it’s best to have the system inspected and repaired by a qualified technician. Gas-related components are sensitive and require professional handling.
Conclusion:
The Braemar Gas Heater White Rodgers Two-Stage Gemini Gas Control Valve NG 36G54-216 (Part No. 628370) is a crucial component for controlling the flow of natural gas in Braemar gas heaters, ensuring proper ignition, efficient heating, and safe operation. If you are experiencing problems like no heat, gas leaks, or erratic operation, the gas control valve might be faulty and require replacement. Replacing the valve with the correct 36G54-216 model will restore your heater's functionality and safety.
