Product Description

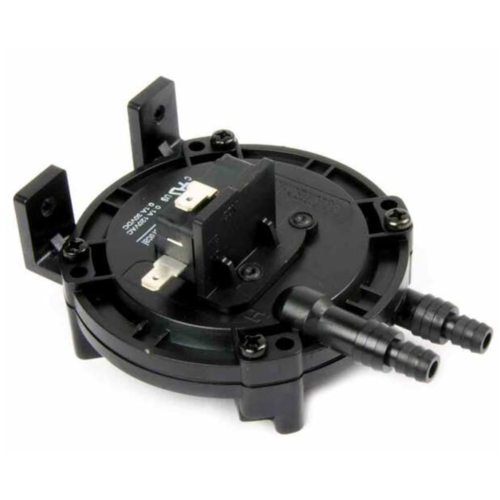

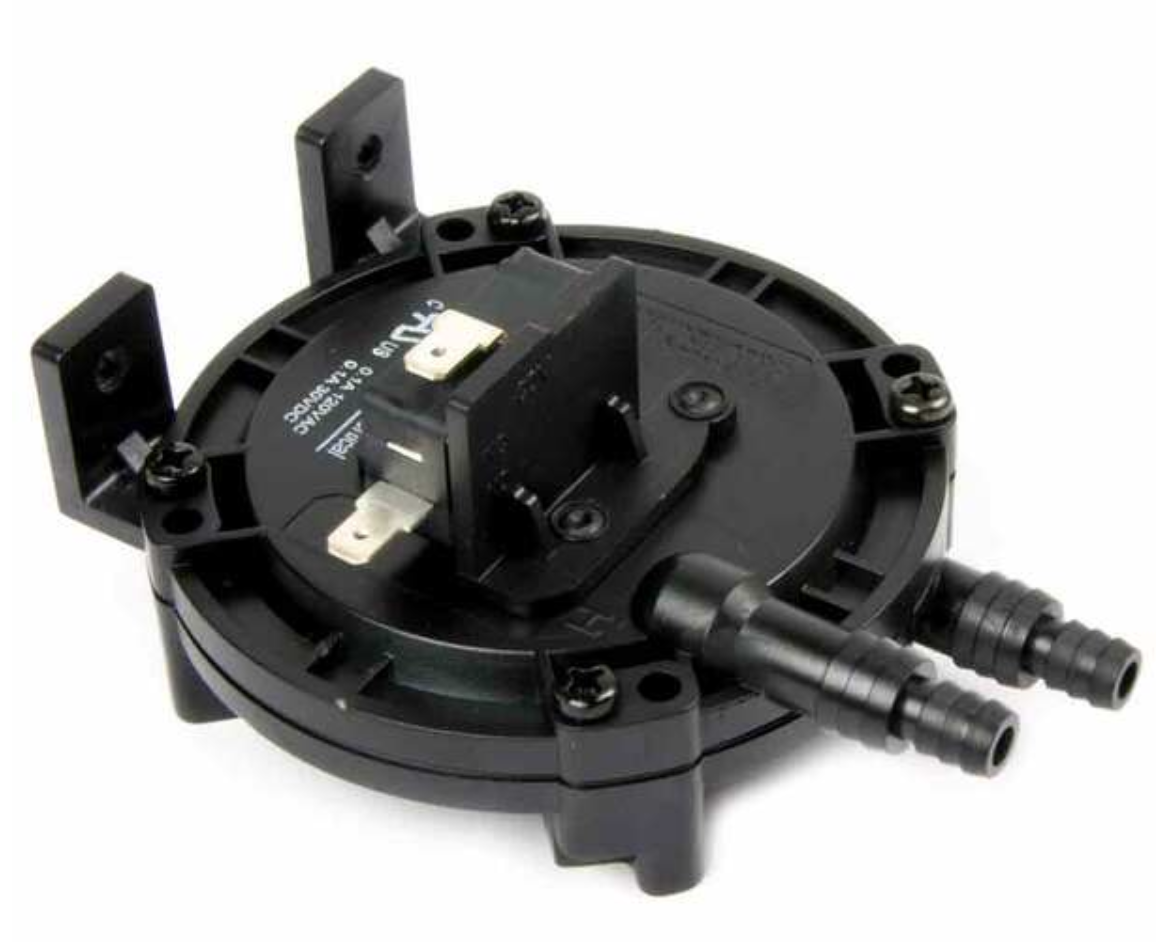

The Braemar Pressure Switch for Gas Heaters 100pa (Part No. 630397) is an important safety and operational component for Braemar gas heaters. It is designed to monitor the pressure within the system to ensure safe operation and proper airflow.
Key Features of the Braemar Pressure Switch for Gas Heaters (100pa):
-
Function:
- The pressure switch is designed to monitor the pressure within the gas heater’s system, ensuring that it remains within safe operating levels.
- It plays a crucial role in ensuring the correct flow of air and gas through the system, which is essential for combustion and overall safety.
- If the pressure deviates from the desired range, the pressure switch will activate, typically cutting off the gas supply to the heater to prevent unsafe operation, such as backdraft or incomplete combustion.
-
Pressure Rating:
- The 100pa rating refers to the pressure the switch is calibrated to monitor. This is typically the pressure at which the switch will activate or deactivate to maintain optimal operation.
-
Safety Mechanism:
- The pressure switch ensures that the gas heater is functioning properly by preventing the system from running if the pressure is too high or too low. This safety feature protects against potential hazards like improper combustion or gas leaks.
-
Compatibility:
- This pressure switch is specifically designed for Braemar gas heaters. It is essential for ensuring the system operates efficiently and safely. If your Braemar gas heater is not operating correctly, it’s possible that the pressure switch may need to be replaced.
-
Durable Design:
- Typically, the switch is made of durable materials designed to withstand the heat and conditions within a gas heater.
Benefits of the Braemar Pressure Switch:
-
Safety:
- The pressure switch plays a vital role in maintaining safety by ensuring that the heater only operates when the pressure is within the acceptable range, reducing the risk of gas leaks, unsafe combustion, or heater malfunction.
-
Preventing Overheating or Underperformance:
- It ensures that the gas heater does not overheat or underperform by maintaining correct pressure levels, improving the energy efficiency of the heater and extending its lifespan.
-
Easy Replacement:
- If the pressure switch fails, it can often be replaced relatively easily with a new one (like the Braemar Pressure Switch 630397). Replacing a faulty switch ensures continued safe and efficient operation.
How to Replace the Braemar Pressure Switch:
-
Turn Off the Gas Supply and Power:
- Always turn off the gas supply and disconnect the power to the heater before performing any work on gas components.
-
Locate the Pressure Switch:
- The pressure switch is typically located near the fan or combustion area of the gas heater. You may need to remove some access panels or components to reach it.
-
Disconnect the Wiring and Hoses:
- Once you locate the switch, disconnect the wiring and pressure hoses connected to the old switch. Make a note of how everything is connected for reinstallation.
-
Remove the Old Pressure Switch:
- Remove the old pressure switch by unscrewing it from its mounting position. Depending on the model, this might involve some screws or clips.
-
Install the New Pressure Switch:
- Position the new Braemar Pressure Switch (Part No. 630397) in place, and secure it using the screws or clips.
-
Reconnect the Wiring and Hoses:
- Reattach the wiring and pressure hoses to the new switch, ensuring that all connections are tight and secure.
-
Test the Heater:
- After replacing the pressure switch, turn on the gas and power to the heater and test the system to ensure it is operating correctly. The heater should only activate when the pressure is within safe levels.
Troubleshooting:
-
Heater Not Turning On:
- If the gas heater fails to turn on, it might be due to a faulty pressure switch. Check if the pressure is outside the acceptable range or if the switch is malfunctioning.
-
Error Codes:
- Some modern Braemar gas heaters may display error codes if the pressure switch is faulty. Refer to the heater’s manual for troubleshooting specific error codes.
-
Check for Blockages:
- If the pressure switch is not activating correctly, there may be a blockage in the airflow system. Ensure that the air intake and exhaust are free from obstructions.
Conclusion:
The Braemar Pressure Switch for Gas Heaters 100pa (Part No. 630397) is a critical safety and operational component in Braemar gas heaters. It helps monitor the pressure within the system to ensure that the heater operates safely and efficiently. If the pressure switch is faulty, it may lead to improper operation or safety concerns, so replacing it promptly ensures that your Braemar gas heater continues to function correctly and safely.
