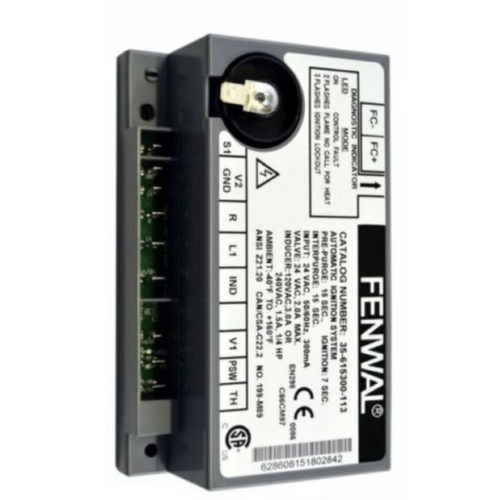

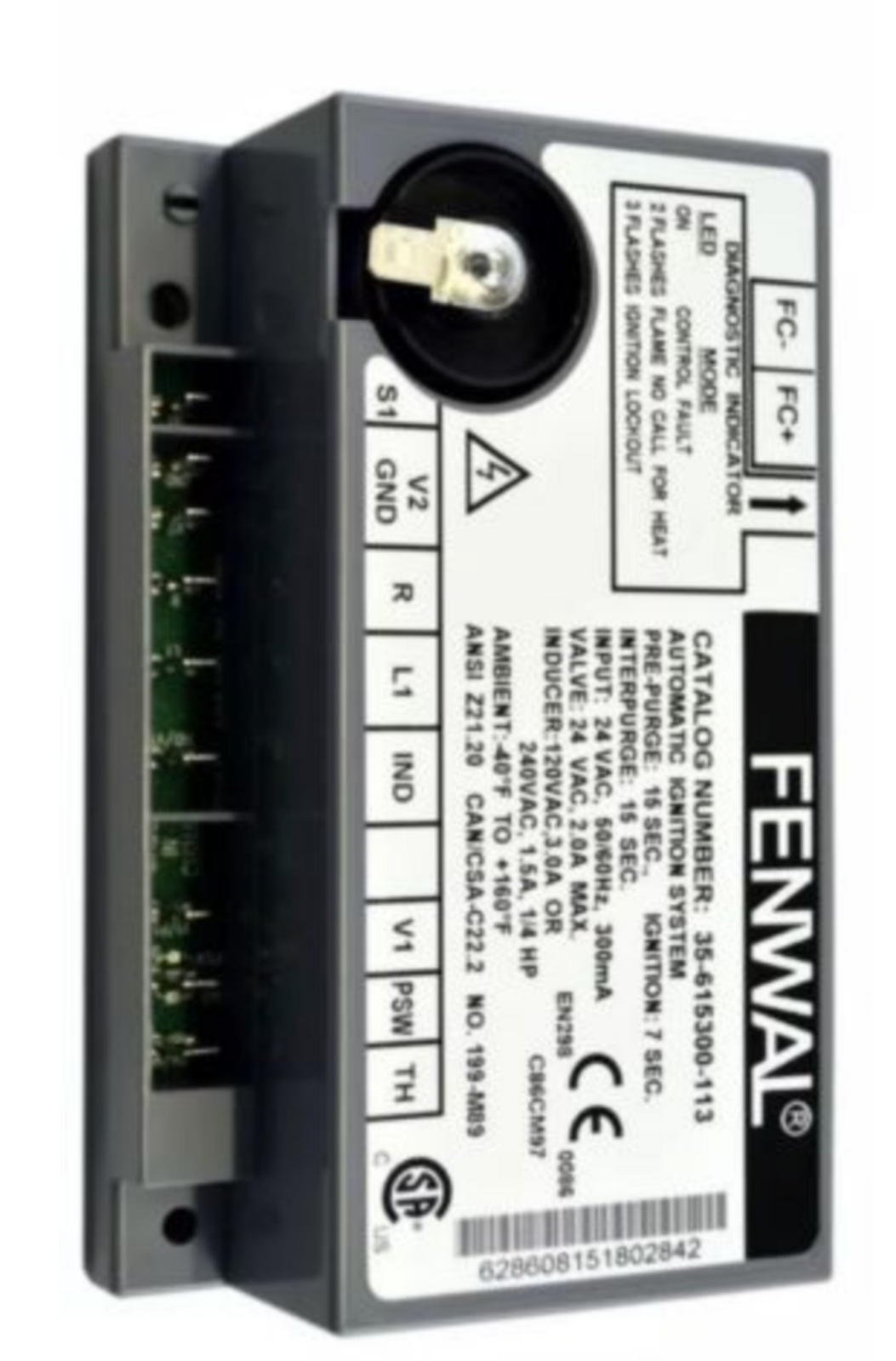

The Braemar TE4 Star Ignition Unit Fenwal 35-615300-113 is an important component used in Braemar TE4 Star Gas Ducted Heaters. It plays a key role in the ignition process by providing electronic ignition, ensuring the gas burner is safely and efficiently ignited without the need for a continuously burning pilot light. This makes the system more energy-efficient and safer.
The Fenwal 35-615300-113 Ignition Unit is designed for use in gas ducted heating systems, such as Braemar TE4 Star Gas Ducted Heaters. It is a reliable and high-quality ignition module that uses electronic ignition technology to initiate the combustion process in the gas burner. The unit is essential for starting the heating process, maintaining efficient gas usage, and ensuring safe operation.
Electronic Ignition:
The Fenwal 35-615300-113 ignition unit generates a high-voltage spark to ignite the gas in the burner. This spark ignition eliminates the need for a constantly burning pilot light, which reduces energy consumption and improves the system’s overall efficiency.
The ignition only occurs when necessary, and there is no pilot light consuming gas when the system is not in use, contributing to energy savings.
Flame Detection and Safety:
The ignition unit includes a flame detection system, ensuring that the gas is only supplied if a stable flame is detected after ignition. If the flame fails to ignite or goes out, the unit automatically shuts off the gas flow to prevent unsafe conditions like unburned gas buildup.
Flame failure protection is one of the key safety features, ensuring that the system operates only when the flame is properly detected.
Durability and Reliability:
The Fenwal 35-615300-113 Ignition Unit is built to withstand the demanding conditions of a gas heating system. It is highly durable and can perform reliably for many years, even in high-temperature environments, ensuring long-term operation of your Braemar TE4 Star heater.
Part Number 628608:
The Part Number 628608 is associated with the Fenwal 35-615300-113 Ignition Unit, which is specifically designed for Braemar TE4 Star Gas Ducted Heaters. This part number is useful when sourcing a replacement or ordering a new ignition unit.
Overheating and Gas Shutoff Features:
The unit is equipped with built-in overheating protection and gas shut-off features. If the unit detects an unsafe temperature or a malfunction, it will stop the gas flow to prevent potential damage or dangerous situations.
Thermostat Signals Heating Demand:
When the thermostat detects that heating is required, it sends a signal to the Fenwal 35-615300-113 Ignition Unit to begin the ignition sequence.
Gas Flow:
The ignition unit opens the gas valve, allowing the gas to flow to the burner.
Spark Generation:
The ignition unit generates a high-voltage spark that ignites the gas, starting the combustion process and initiating the heating cycle.
Flame Monitoring:
Once the burner is ignited, the unit continuously monitors the flame to ensure that it remains stable. If the flame goes out or fails to ignite, the unit will automatically shut off the gas supply to prevent any safety risks.
Safety Monitoring:
The ignition unit ensures that the heater operates within safe limits by continuously checking the flame during operation. If any issues are detected, the gas flow is shut off to prevent unsafe operation.
The Fenwal 35-615300-113 Ignition Unit is designed specifically for Braemar TE4 Star Gas Ducted Heaters, which are typically used in residential or commercial heating systems. These heaters provide efficient centralized heating by circulating warm air through ducts.
The ignition unit ensures that the heater operates safely and efficiently, making it essential for maintaining reliable performance.
If you’re encountering issues with your Braemar TE4 Star Gas Ducted Heater, the Fenwal 35-615300-113 Ignition Unit could be the cause. Common problems include:
Failure to Ignite: If the ignition unit isn't generating the necessary spark, the heater will fail to start and no heat will be produced.
Flame Detection Problems: If the ignition unit cannot detect the flame after the burner has ignited, it will shut off the gas supply to prevent any safety issues.
Gas Flow Issues: If there are issues with the ignition unit or gas valve, the heater may fail to receive the necessary gas supply to operate correctly.
If you need to replace the Fenwal 35-615300-113 Ignition Unit, here’s a basic guide on how to do it:
Turn Off Power and Gas:
Ensure the heater is powered off, and turn off the gas supply to avoid any risks while working on the system.
Locate the Ignition Unit:
The Fenwal 35-615300-113 Ignition Unit is typically found near the burner assembly and gas valve. Refer to the Braemar TE4 Star Heater manual for detailed placement instructions.
Disconnect Wiring:
Carefully disconnect the wiring from the old ignition unit, taking note of the wiring configuration so that you can reconnect the new unit properly.
Remove the Old Ignition Unit:
Remove the old ignition unit from its mounting. Depending on the design, this may require unscrewing or unclipping the unit.
Install the New Ignition Unit:
Install the new Fenwal 35-615300-113 Ignition Unit in the same position as the old one, securing it properly.
Reconnect Wiring:
Reconnect the electrical wiring to the new ignition unit, ensuring all connections are secure and correctly configured.
Test the Heater:
Once everything is in place, turn the power and gas back on, and test the system to ensure the heater ignites properly and operates as expected.
The Braemar TE4 Star Ignition Unit Fenwal 35-615300-113 is an essential component of the Braemar TE4 Star Gas Ducted Heaters. It ensures the system operates efficiently by providing electronic ignition for the gas burner. This unit improves energy efficiency, enhances safety with flame detection and gas shut-off features, and contributes to the overall reliable operation of the heating system.
SKU | 19981 |
Brand | Braemar |
