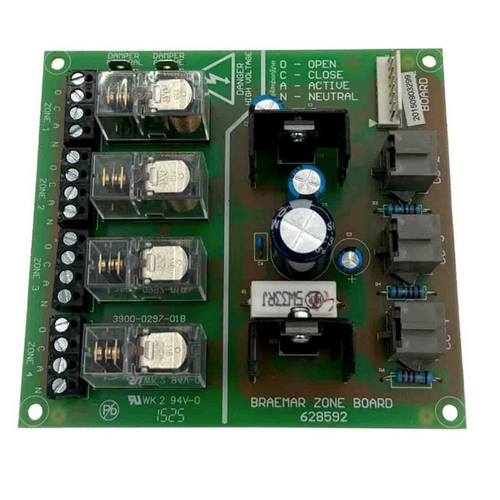

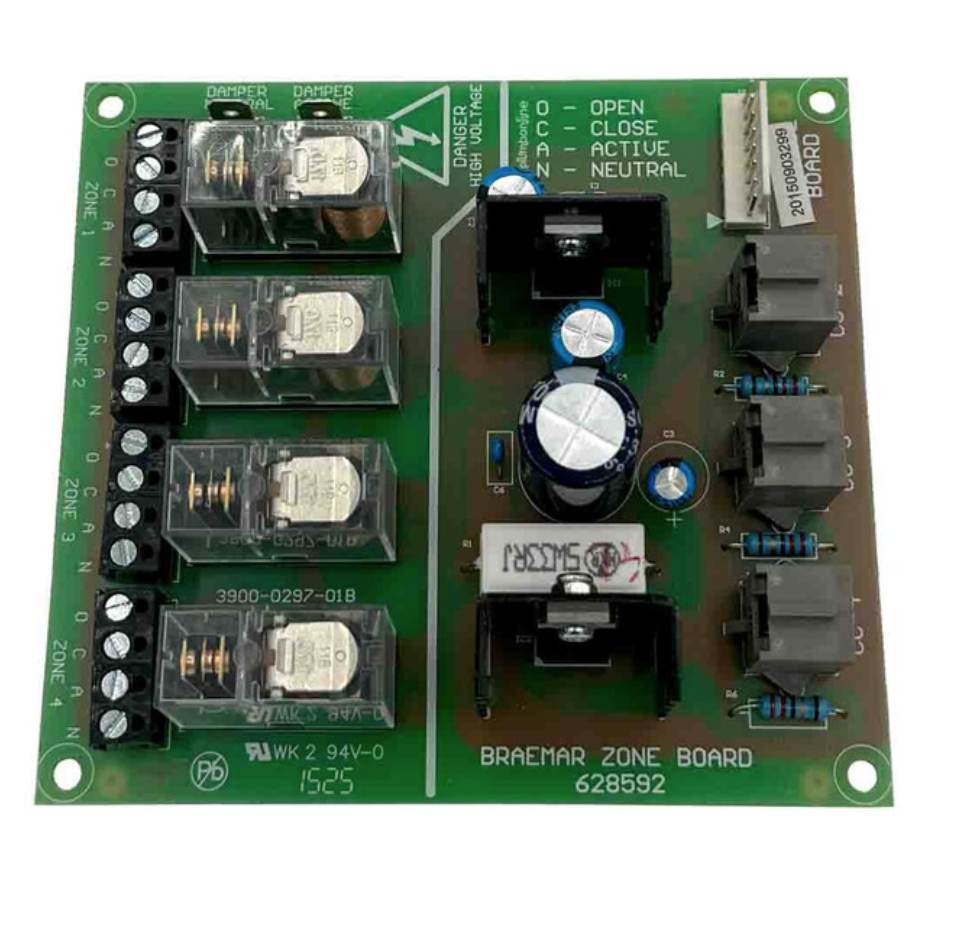

Braemar TH PCB Circuit Board BSC 2006 Zone Control Ducted Heaters PN. 628592

Description
Specifications

Product Description

The Braemar TH PCB Circuit Board BSC 2006 Zone Control Ducted Heaters with part number 628592 is a critical component in controlling and managing the operation of Braemar ducted heating systems that utilize zone control. Here’s a breakdown of what this part is, its functionality, and its role in the system:

Key Components and Functions:

PCB Circuit Board (Printed Circuit Board):
- The PCB is the main control unit for the ducted heater. It houses all the electronic circuits that regulate the heater’s operation. It manages various functions like ignition, temperature control, fan operation, and zone control.
BSC 2006:
- The BSC 2006 is a reference to the specific model or type of circuit board used in the system. This board is designed to work with certain Braemar heating systems, ensuring compatibility with the unit's features and capabilities.
Zone Control:
- Zone control is a feature that allows the user to independently control the temperature in different areas (or zones) of the home. The PCB is responsible for managing the operation of motorized dampers or dampers controlled by the system, which direct airflow to specific zones.
- The BSC 2006 PCB works with zone sensors and thermostats to ensure that each zone in the home is heated to the desired temperature.

Functions:

Zone Management: The primary function of this PCB is to control the zoning system. It communicates with zone thermostats and motorized dampers to open or close ducts, allowing specific zones to receive more or less heated air depending on the user's preferences.
Temperature Control: The PCB processes inputs from temperature sensors in each zone to maintain the desired temperature. It adjusts the fan speed and gas flow as needed to maintain consistent temperatures in each individual zone.
Ignition and Operation Control: Like other PCB circuit boards, this one manages the ignition process and ensures that the heater operates correctly. It sends signals to the igniter and flame sensor to ensure proper operation and safety.
Fan and Motor Control: It controls the operation of the fan motor, adjusting fan speeds to ensure that the right amount of airflow is directed into the zones based on heating demand.
Safety Monitoring: The PCB also monitors safety parameters, such as detecting flame failure or overheating. If any faults are detected, the board will shut down the system to prevent damage or unsafe conditions.

Importance:

The Braemar TH PCB Circuit Board BSC 2006 is essential for efficient operation of the ducted heating system, especially in homes with multiple zones. It ensures that each zone can be controlled independently, optimizing energy usage by heating only the areas that need it.
The board also ensures that the system operates safely and efficiently by controlling all the necessary components and systems, from ignition to temperature regulation to fan control.

Usage:

This specific PCB is designed for use in Braemar TH ducted heaters that feature zone control functionality. If your system has multiple zones, this board is responsible for making sure the correct amount of heat is distributed where it’s needed.
If the PCB malfunctions, you may experience issues such as improper heating, zones not being controlled, or the system failing to start altogether. In these cases, replacing the 628592 PCB Circuit Board is often the solution.

Maintenance:

The PCB is a delicate and complex component, and as such, replacement or repairs should be done by a qualified technician with expertise in HVAC systems.
It’s important to check the entire system (including wiring, sensors, and zone dampers) when replacing or diagnosing issues related to the PCB to ensure proper operation after installation.

If you’re experiencing problems with zone control, temperature regulation, or general operation in a Braemar TH ducted heater, the 628592 PCB Circuit Board may need attention. Always follow proper safety protocols when handling or replacing electronic components.
