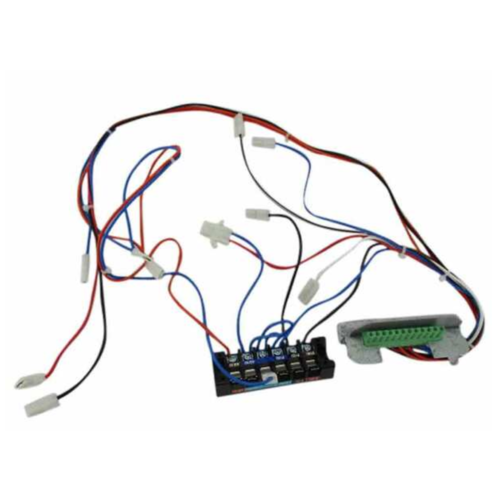

The Brivis Evaporative Cooler Main Wiring Loom for Contour Models is an essential component in Brivis Contour series evaporative cooling systems. The wiring loom (or wiring harness) is responsible for connecting various electrical components within the cooler, ensuring proper communication and functionality between parts such as the control panel, motors, sensors, and other electrical elements.
Function: Acts as the central nervous system of the evaporative cooler, connecting and transmitting electrical signals between components.
Compatibility: Specifically designed for Brivis Contour models. Verify compatibility with your unit by checking the model number or consulting the manufacturer's documentation.
Components Included: The wiring loom typically includes connectors for the control panel, fan motor, damper motor, pump, sensors, and other electrical parts.
Turn Off Power: Before starting any work, ensure the power to the evaporative cooler is turned off to avoid electrical hazards.
Label Connections: If possible, label or take photos of the existing wiring connections before disconnecting them to ensure proper reinstallation.
Remove the Old Wiring Loom: Carefully disconnect and remove the old wiring loom, noting how it is routed and connected.
Install the New Wiring Loom: Position the new wiring loom correctly, following the same routing as the old one. Reconnect all electrical components as per the labels or photos.
Test the System: Restore power and test the cooler to ensure all components are functioning properly.
If your evaporative cooler is experiencing electrical issues, such as components not working, intermittent operation, or error codes, the main wiring loom may need inspection or replacement. Common issues include:
Frayed or damaged wires
Loose or corroded connectors
Electrical shorts or open circuits
If you're unsure about the installation or troubleshooting, consult the user manual or contact a professional technician for assistance.
If you need further details or help with your specific model, feel free to ask!
SKU | 16114 |
Brand | Brivis |
