Product Description

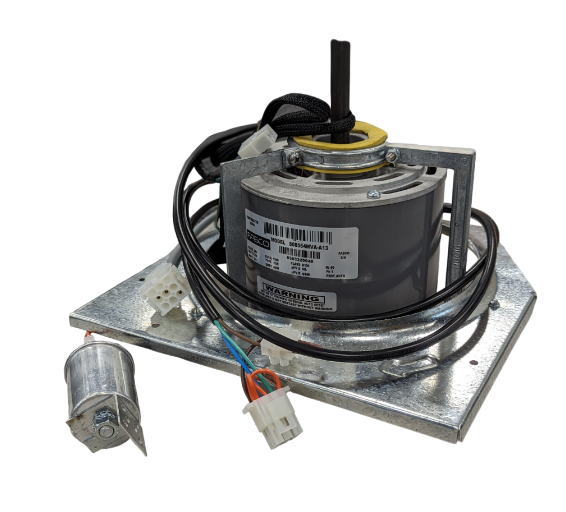

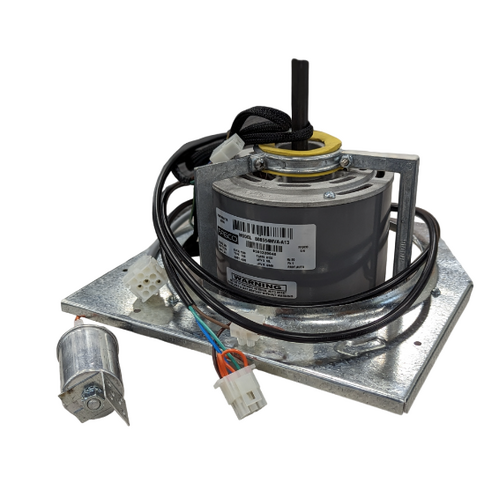

The Brivis MPS HE20E / XA (V2) Gas Ducted Heater Blower Fan Motor Plate & Capacitor 315 Watt PN. B015289 is a crucial part of the Brivis MPS HE20E / XA (V2) gas ducted heating system. This component is responsible for driving the blower fan that circulates warm air throughout the ductwork, ensuring that your space is heated efficiently.
Key Features and Functions of the Blower Fan Motor Plate & Capacitor:
-
Blower Fan Motor Plate:
- The blower fan motor plate is the support structure that holds the blower fan motor in place. It ensures that the motor is properly aligned and secured, allowing it to function optimally without vibration or strain.
- The motor plate is designed to be durable and withstand the heat and operational wear and tear associated with gas heating systems.
-
Blower Fan Motor:
- The blower fan motor is the electric motor that powers the fan blades, which move air across the heat exchanger and into the ducts. This is a key component for the effective circulation of heated air throughout the home.
- With a 315-watt motor, the blower fan is able to provide sufficient airflow to heat spaces efficiently, ensuring even distribution of warmth.
-
Capacitor:
- The capacitor is an essential electrical component that helps start the motor and maintain its performance. It stores electrical energy and releases it when needed to give the motor the extra boost required to start or keep running at the correct speed.
- If the capacitor fails, the motor may have trouble starting, or it may not run at full capacity, leading to inadequate airflow or a failure to heat properly.
-
Compatibility:
- This part is specifically designed for Brivis MPS HE20E / XA (V2) gas ducted heaters, ensuring compatibility and proper operation.
- The PN. B015289 part number ensures that this motor plate and capacitor combination fits and works with your specific system, providing reliable performance and energy efficiency.
-
Signs of a Faulty Blower Fan Motor Plate & Capacitor:
- No Airflow: If the motor or capacitor is faulty, the blower fan may not operate, which will lead to no airflow or very weak airflow in your heating system.
- Inconsistent Heating: A faulty blower fan motor can cause inconsistent heating as the system may struggle to circulate air effectively.
- Noise: If the motor or fan plate is worn out or damaged, it may cause abnormal noises, such as squealing, grinding, or humming, which indicates mechanical issues.
- Blower Fan Not Starting: A malfunctioning capacitor may prevent the motor from starting, causing the fan to not run at all, which directly affects the heater’s operation.
-
Replacement Considerations:
- Correct Part Number (PN. B015289): It is important to use the exact replacement part for your Brivis MPS HE20E / XA (V2) heater to ensure that it works correctly. PN. B015289 is the part number for this blower fan motor plate and capacitor assembly.
- Professional Installation: Replacing the blower fan motor plate and capacitor requires expertise. It is highly recommended to have a licensed HVAC technician carry out the replacement to ensure the system is reassembled properly and safely.
-
Installation Process:
- Turn Off Power and Gas: Before starting any work on the heater, ensure that the power is turned off, and the gas supply is shut off. This is necessary for safety.
- Access the Blower Fan Motor Plate: Open the front or side panel of the heater to access the blower fan motor and associated parts.
- Disconnect the Old Components: Carefully disconnect the faulty motor, capacitor, and motor plate. Take note of the connections and how the parts are mounted.
- Install the New Blower Fan Motor Plate & Capacitor: Mount the new Blower Fan Motor Plate & Capacitor securely, ensuring that the motor is properly aligned.
- Reconnect the Wiring: Reconnect the electrical wires to the new motor and capacitor, ensuring proper connections.
- Test the Heater: After installation, restore power and gas, then test the heater to confirm that the blower fan is operating correctly and the heating system is functioning as expected.
-
Maintenance Tips:
- Regular Inspections: Regularly inspect the blower fan motor and capacitor to ensure they are functioning properly. This will help catch any potential issues before they cause a complete failure.
- Cleaning: Clean the fan blades and motor regularly to remove dust and debris. This prevents buildup that can cause the motor to overheat or function less efficiently.
- Annual Servicing: Have your Brivis MPS HE20E / XA (V2) system serviced annually to check the condition of the blower fan motor and capacitor, along with other components, to ensure long-term, efficient operation.
Conclusion:
The Brivis MPS HE20E / XA (V2) Gas Ducted Heater Blower Fan Motor Plate & Capacitor 315 Watt PN. B015289 is essential for the proper operation of your heating system, driving the blower fan that circulates heated air. If you're experiencing problems such as no airflow, inconsistent heating, or unusual noises, it may be time to replace the motor plate and capacitor assembly. Always use the correct replacement part PN. B015289, and consider professional installation to ensure safety and proper functionality.
