BRIVIS SPARK PILOT BURNER - Q3452B Series

Description
Specifications

Product Description

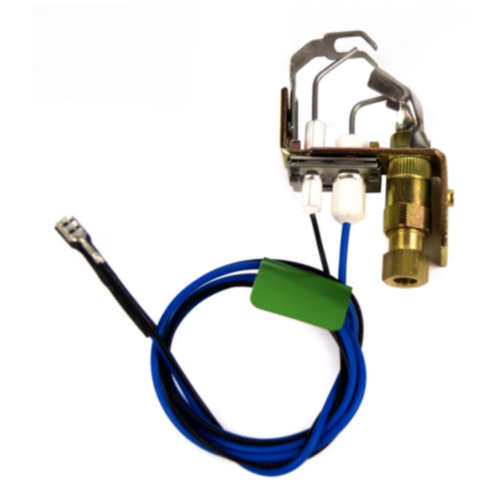

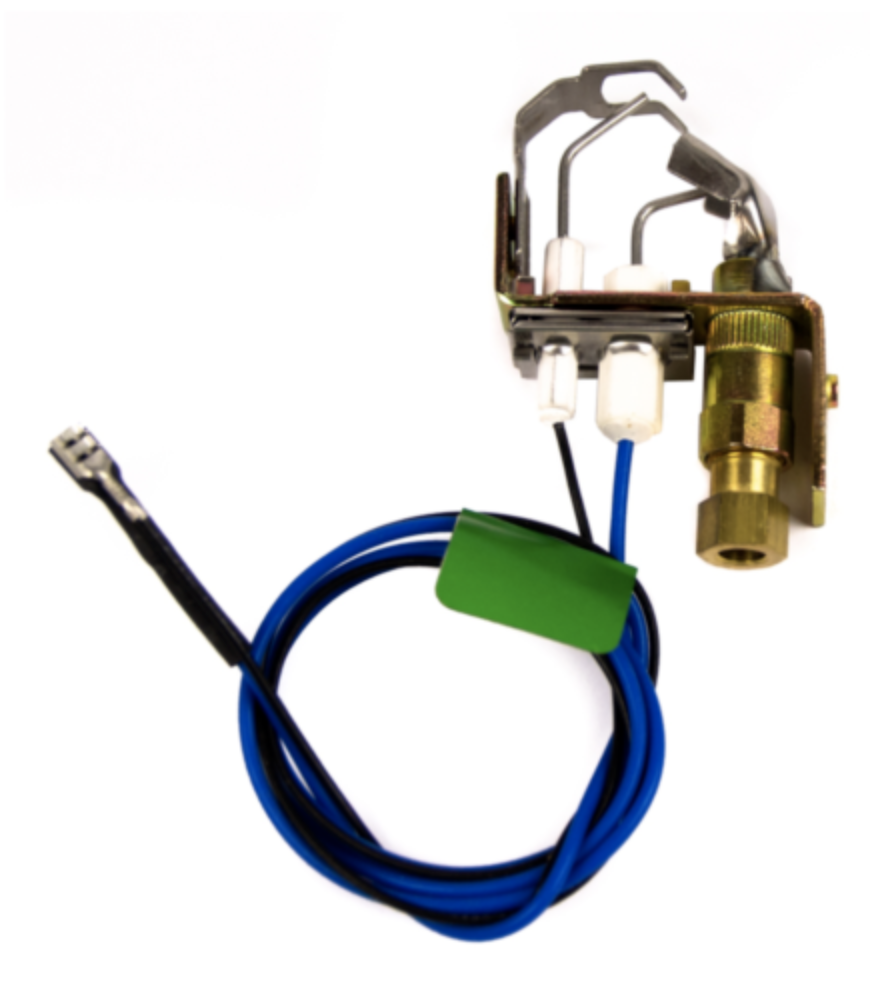

The Brivis Spark Pilot Burner (Q3452B Series, Part No. B016425) is a critical ignition component designed for Brivis gas heating systems. This spark pilot burner ensures reliable ignition of the gas heater by generating a spark to light the pilot flame, which in turn ignites the main burner. It is a key part of the heater’s safety and operational efficiency.

Key Features:

Part Number: B016425
Series Compatibility: Q3452B Series Brivis gas heaters.
Function: Provides spark ignition for the pilot flame, ensuring safe and consistent heater startup.
Material: Durable construction to withstand high temperatures and continuous use.
Safety Compliance: Meets industry standards for gas ignition systems.

Installation Tips:

Turn Off Gas and Power: Always shut off the gas supply and disconnect power to the heater before starting work.
Locate the Pilot Burner: The spark pilot burner is typically located near the main burner assembly.
Remove the Old Unit: Carefully disconnect the wiring and gas line from the old pilot burner.
Install the New Burner: Attach the new spark pilot burner (B016425) securely, ensuring proper alignment and reconnecting all wiring/gas lines.
Test for Leaks: Use a gas leak detector or soapy water to check connections before restoring power and gas.
Test Ignition: Turn on the system and verify the pilot flame ignites correctly.

Troubleshooting:

Failure to Ignite: Check for spark generation, gas supply issues, or obstructions in the pilot assembly.
Inconsistent Flame: Clean the pilot orifice or inspect for gas pressure irregularities.
Error Codes: If the heater displays ignition-related errors, inspect the spark pilot burner and wiring connections.
