Product Description

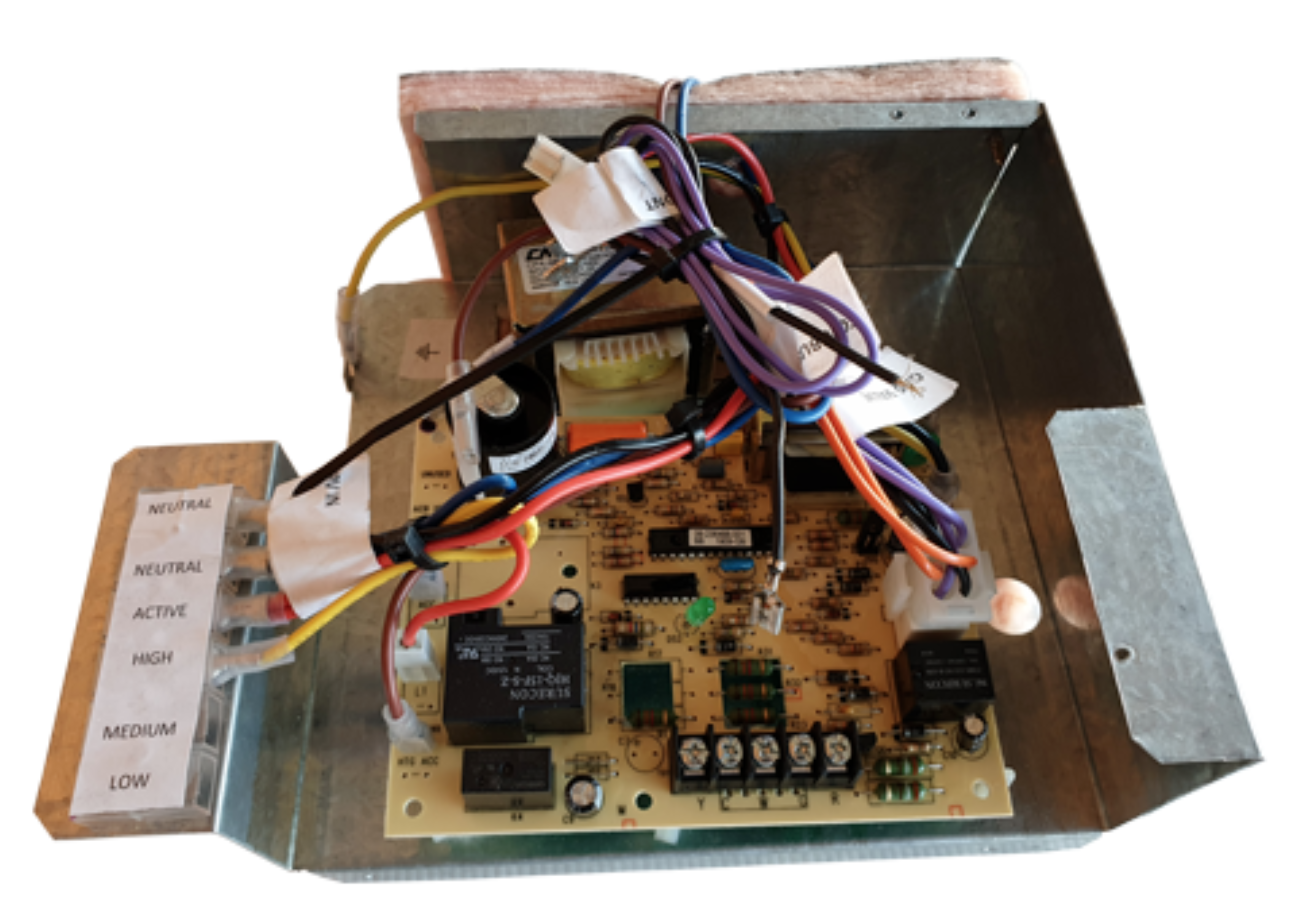

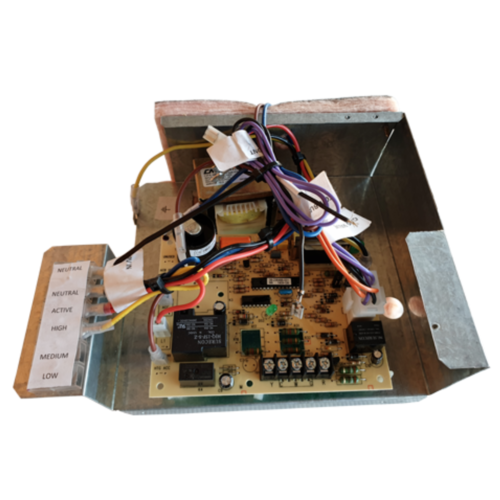

The Omega Ducted Gas Heater Circuit Board Control PCB IHE & EHE 120MJ-4 Star is a replacement printed circuit board (PCB) specifically designed for Omega ducted gas heaters with 120MJ-4 star efficiency. It plays a crucial role in controlling and managing the operations of the gas heater, such as gas ignition, burner regulation, fan control, and flame detection, to ensure the heater runs safely and efficiently.
Key Features:
-
Control PCB:
- The PCB is the central component that governs the functioning of the gas heater. It controls multiple aspects of the system, including gas flow, ignition, temperature regulation, and fan operation.
- It manages the sequence of operations, ensuring the heater starts and runs smoothly without any safety concerns.
-
Compatibility:
- This PCB is designed specifically for Omega ducted gas heaters in the IHE & EHE 120MJ-4 Star series.
- It is ideal for 120 megajoule (MJ) systems with a 4-star efficiency rating. This ensures that the gas heater operates efficiently while maximizing energy usage.
-
Functions and Operations:
- Ignition Control: The PCB controls the ignition process, sending the signal to the spark generator and ensuring the gas is safely ignited.
- Gas Valve Regulation: The PCB controls the gas valve, ensuring the proper flow of gas to the burner for efficient combustion.
- Fan Control: It regulates the fan, managing airflow to distribute the heated air throughout the living space efficiently.
- Flame Detection: It constantly monitors the flame to ensure safe operation. If the flame is not detected, the PCB will shut off the gas to prevent any safety risks.
- Safety Functions: The PCB includes various safety mechanisms, such as flame failure detection, over-temperature protection, and system diagnostics, to ensure safe operation.
- Error Code Display: Some models of this PCB may display error codes if there are issues with the system, which can assist in troubleshooting and repairs.
-
Durability and Reliability:
- The PCB is designed to withstand the high temperatures and stresses encountered in a ducted gas heater system. It is built for reliability and durability, ensuring long-term performance.
-
Replacement Part:
- This PCB serves as a direct replacement for a faulty or damaged circuit board in the Omega IHE & EHE 120MJ-4 Star gas heaters.
- Replacing a faulty PCB can restore proper functionality to the heating system.
Specifications:
- Model: Omega Ducted Gas Heater Circuit Board Control PCB IHE & EHE 120MJ-4 Star
- Compatibility: Specifically designed for Omega IHE & EHE 120MJ-4 Star gas heaters.
- Functions: Ignition control, gas flow regulation, fan operation, flame detection, error code display, and safety functions.
- Application: Replacement part for malfunctioning or damaged circuit boards in Omega gas heaters.
Applications:
-
Gas Heater Repair:
- This PCB is commonly used for repairing or replacing faulty control boards in Omega 120MJ-4 Star ducted gas heaters, restoring the functionality and safety of the system.
-
Professional Service:
- HVAC professionals and gas technicians will use this control board to repair and service Omega ducted gas heaters, ensuring that all functions of the heater are working properly.
-
Residential & Commercial Use:
- Ideal for homeowners and businesses using Omega ducted gas heating systems, where reliable and efficient heating is needed.
Considerations:
-
Installation:
- Replacing the PCB in a gas heater can be complex and should be performed by a qualified technician. Gas heaters involve high-pressure systems, and improper installation can pose safety risks.
-
Diagnosis:
- Before replacing the PCB, ensure that the issue is indeed with the circuit board. Other components, such as gas valves, flame sensors, or thermistors, may also contribute to the problem. A professional technician can help diagnose the issue.
-
Error Codes:
- Many PCB models have the capability to display error codes that can guide you in troubleshooting. Familiarize yourself with the specific error codes related to your heater model to aid in repair and maintenance.
-
Warranty:
- Ensure that the replacement PCB comes with a warranty or guarantee to ensure that it is covered in case of manufacturing defects or issues after installation.
Conclusion:
The Omega Ducted Gas Heater Circuit Board Control PCB IHE & EHE 120MJ-4 Star is an essential replacement part for Omega 120MJ-4 Star ducted gas heaters. It controls critical functions such as ignition, gas flow, flame detection, and fan operation. If your Omega gas heater has a malfunctioning PCB, replacing it with this unit will restore the heater’s functionality and ensure safe, efficient operation.
Make sure to have the PCB installed by a professional, as handling gas systems requires expertise to avoid safety hazards. This PCB will help maintain the reliable performance of your Omega ducted gas heater, ensuring warmth and comfort for your space.
