Product Description

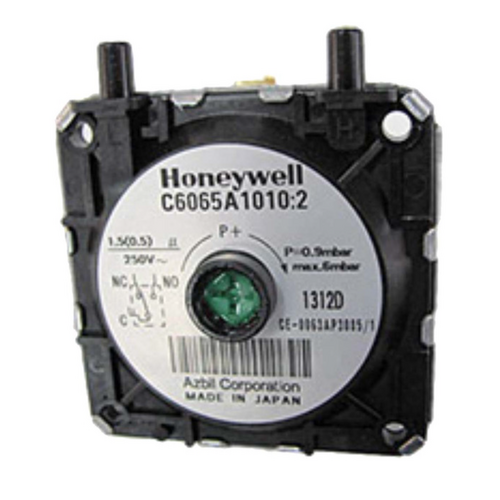

The Rheem Gas Heavy Duty Commercial Pressure Switch Flue & Air Duct PN. 053014 is an essential component used in commercial gas heating systems, designed to monitor and regulate air pressure within the flue and air ducts of a gas appliance. This pressure switch ensures the safe and efficient operation of the heating system by detecting airflow or pressure changes, which could indicate a malfunction or unsafe condition.
Key Features of the Rheem Gas Heavy Duty Commercial Pressure Switch Flue & Air Duct PN. 053014:
-
Pressure Monitoring:
- The pressure switch is designed to monitor the air pressure within the flue and air duct of a gas heating system. It ensures that the system has the correct airflow, which is critical for safe and efficient combustion.
-
Safety Function:
- If the air pressure falls outside the required range, the pressure switch will signal the system to shut down to prevent unsafe conditions like poor combustion, carbon monoxide buildup, or flue blockages.
- This safety mechanism protects both the heating system and the occupants by preventing dangerous gas leaks and ensuring optimal performance.
-
Heavy Duty Design:
- The heavy-duty construction of the pressure switch makes it suitable for use in commercial heating systems, which typically operate in more demanding environments with higher loads and longer run times compared to residential units.
- It is built to withstand the stresses of commercial usage, ensuring durability and longevity.
-
Compatibility:
- The PN. 053014 pressure switch is specifically designed for use with Rheem gas heating systems, particularly those used in commercial applications. Before replacing or installing this component, it’s essential to ensure it is compatible with your specific Rheem model to avoid malfunction or damage.
-
Installation and Maintenance:
- The pressure switch is typically installed within the flue and air duct assembly, where it is connected to the system’s control board and other safety features.
- Regular maintenance of the pressure switch involves checking it for dirt, wear, or damage that could interfere with its ability to monitor pressure correctly. A faulty pressure switch may cause the system to shut down unnecessarily or fail to shut down when required.
-
Troubleshooting:
- If the pressure switch is faulty or fails to sense correct pressure, it can lead to system shutdowns or malfunctions. Common symptoms of a failing pressure switch include:
- Frequent shutdowns of the heating system.
- Poor combustion or inefficient operation.
- No ignition or failure to start the heater.
- In such cases, replacing the pressure switch is necessary to restore proper functionality.
Applications of the Pressure Switch:
-
Commercial Gas Heaters:
- This pressure switch is ideal for heavy-duty commercial gas heaters that require consistent monitoring of the air pressure in the flue and air duct systems. These heaters are typically used in large buildings, factories, and commercial spaces.
-
Flue Gas Monitoring:
- It plays an important role in ensuring that the flue gases are properly vented out of the heating system, which helps maintain the efficiency of the heater and prevents the risk of dangerous exhaust gases from accumulating.
-
Air Duct System:
- In addition to flue gases, the pressure switch also monitors the air duct to ensure there is adequate airflow for combustion, further enhancing the heater’s efficiency and safety.
Installation Instructions:
-
Power Off the System:
- Before installing or replacing the pressure switch, make sure the heating system is powered off, and disconnect it from the electrical supply to avoid electric shock or damage.
-
Locate the Pressure Switch:
- The pressure switch is typically located near the flue or air duct system in your heater. It is generally connected to the control board and other components that monitor system performance.
-
Remove the Old Pressure Switch:
- Disconnect any wiring or connections from the old pressure switch and remove it from its mounting location.
-
Install the New Pressure Switch:
- Position the new Rheem Gas Heavy Duty Commercial Pressure Switch Flue & Air Duct PN. 053014 in the correct location and ensure that it is securely mounted.
- Reconnect the wiring to the new pressure switch, making sure each connection is tight and properly connected to avoid any electrical issues.
-
Test the System:
- Once the new switch is installed, power on the system and test the heater to ensure it is functioning correctly.
- Verify that the pressure switch is properly monitoring airflow and flue pressure, and that the system is operating safely.
Conclusion:
The Rheem Gas Heavy Duty Commercial Pressure Switch Flue & Air Duct PN. 053014 is an essential safety and performance component for commercial gas heating systems. By ensuring correct air pressure in the flue and air ducts, this component prevents unsafe conditions, improves combustion efficiency, and contributes to the overall safety of the heating system. Regular maintenance and timely replacement of faulty pressure switches are necessary to maintain optimal system performance and safety.
