Product Description

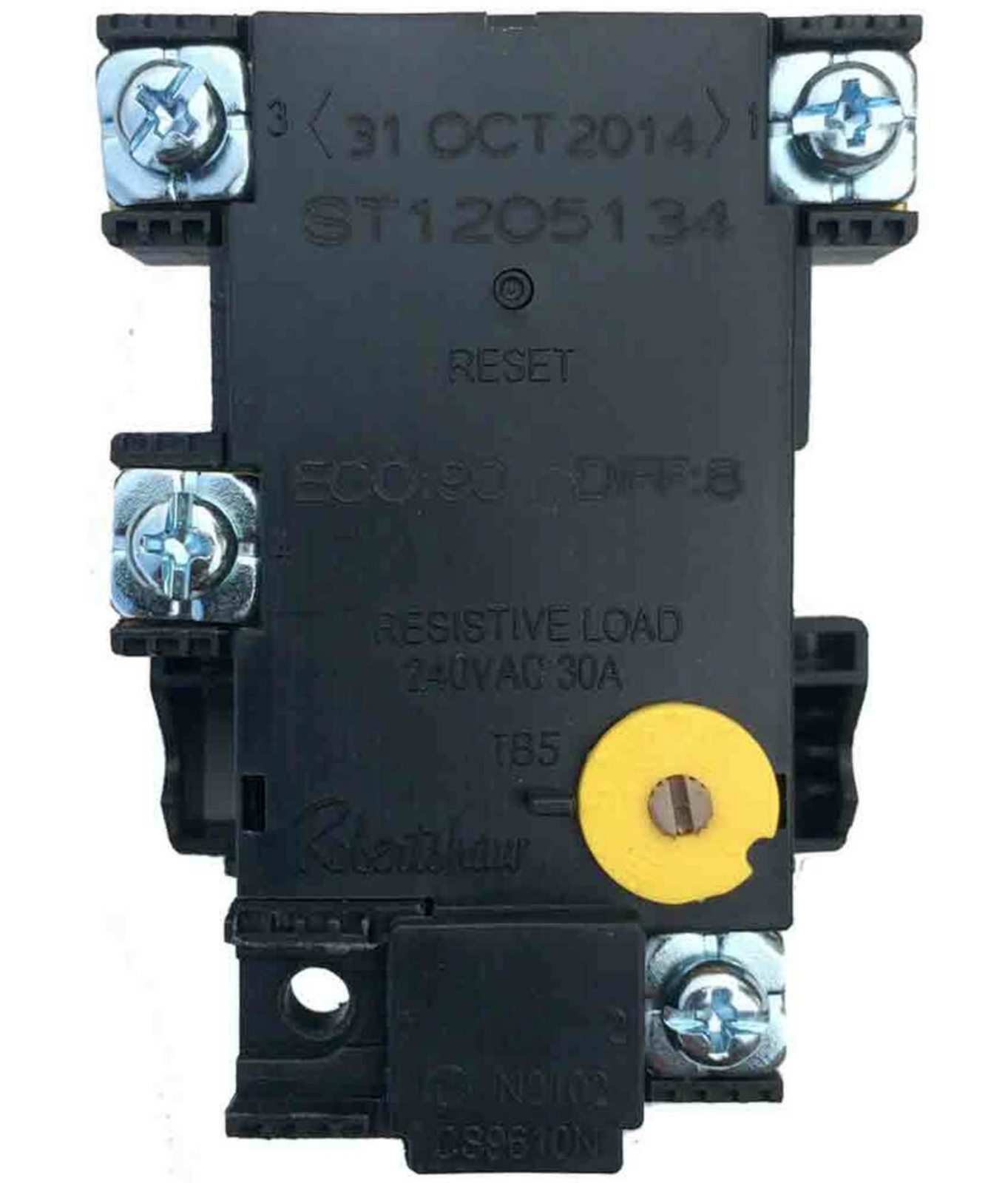

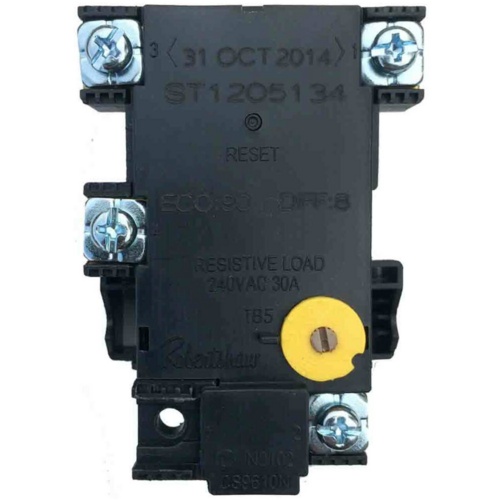

The Robertshaw ST 12-93K Surface Mount Hot Water Thermostat is a high-quality thermostat designed for use in various hot water systems, providing precise temperature control. It is commonly used in water heaters, boilers, and other similar appliances that require reliable temperature regulation.
Key Features of the Robertshaw ST 12-93K Surface Mount Hot Water Thermostat:
-
Surface Mount Design:
- The ST 12-93K is a surface-mount thermostat, meaning it is designed to be mounted on the surface of the appliance rather than embedded. This allows for easy installation and maintenance, as it can be accessed without needing to disassemble the unit.
-
Accurate Temperature Control:
- The thermostat is engineered to maintain precise temperature control for your hot water system. It helps to regulate the water temperature, ensuring your system operates at optimal levels for comfort and efficiency.
-
Durability and Reliability:
- The Robertshaw ST 12-93K is built for long-lasting performance. Made with high-quality materials, it is designed to endure high heat and pressure conditions commonly found in hot water systems.
-
Adjustable Settings:
- The thermostat features adjustable temperature settings, giving you the flexibility to choose your desired water temperature, which is crucial for energy efficiency and comfort.
-
Wide Application:
- The ST 12-93K thermostat is versatile and can be used in a variety of water heating systems, including tankless water heaters, storage water heaters, and boiler systems. It is suitable for both residential and commercial applications.
-
Safety Features:
- The thermostat is designed to ensure safe operation of your hot water system. It helps prevent overheating and potential damage to your heater by maintaining a safe temperature range.
-
Surface-Mount Installation:
- The thermostat is mounted on the surface, making installation simple. Its mounting design allows it to be positioned for optimal temperature sensing and performance.
How the Robertshaw ST 12-93K Works:
-
Temperature Sensing:
- The thermostat continuously senses the temperature of the water in the system. When the water reaches the desired temperature set by the user, the thermostat signals the heating element or burner to shut off.
-
Activation and Deactivation:
- When the water temperature drops below the set point, the thermostat activates the heating element or burner to bring the water temperature back up. This cycle continues as the thermostat ensures the system maintains the desired temperature.
-
Safety Shutdown:
- The thermostat also features safety mechanisms to prevent overheating. If the temperature exceeds a preset limit, the thermostat will trigger a shutdown or cut off the heating element, ensuring that the system does not overheat and cause damage or safety issues.
Applications:
Installation:
-
Turn Off Power:
- Before starting the installation, make sure to turn off power to the water heater or system to avoid electrical hazards.
-
Mounting the Thermostat:
- The ST 12-93K thermostat is designed for surface mounting. Use the mounting screws provided to secure the thermostat to the surface of the appliance in the appropriate location for optimal temperature sensing.
-
Wiring:
- Connect the thermostat according to the wiring diagram provided with the unit. The thermostat typically has three connection points: one for the heating element or burner, one for the power source, and one for the control signal.
-
Adjust Temperature Settings:
- Once installed, set the desired temperature using the thermostat's control dial. Make sure to set the temperature to a safe level for the system to prevent overheating.
-
Test Operation:
- After installation, restore power to the system and test the thermostat’s operation. Verify that the system heats the water to the desired temperature and that the thermostat turns off the heating element once the temperature is reached.
-
Check for Leaks:
- Ensure that all connections are secure and that there are no leaks in the system. Check the thermostat for proper operation and adjust the settings if necessary.
Benefits:
- Reliable Performance: The Robertshaw ST 12-93K ensures that your hot water system operates safely and efficiently, maintaining a consistent water temperature for user comfort.
- Easy Installation: The surface mount design makes the thermostat quick and easy to install or replace.
- Safety: The thermostat's safety features, including overheat protection, help prevent system damage and potential hazards.
- Energy Efficiency: By regulating the water temperature, the thermostat helps maintain energy efficiency in your heating system, reducing unnecessary energy consumption.
