Product Description

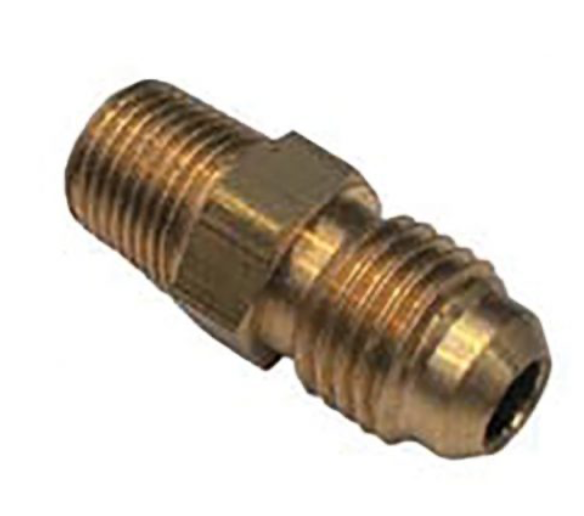

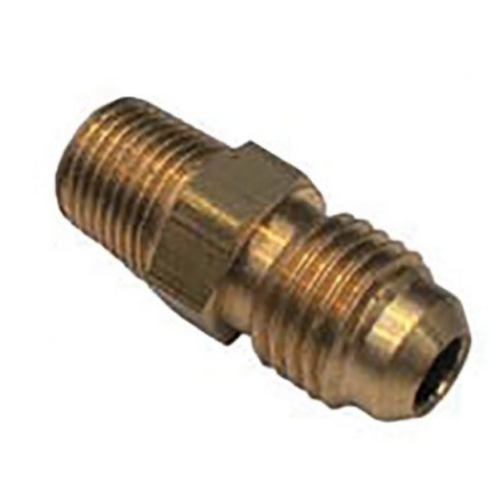

The SAE 45 Degree Flare Brass Fitting, Male Union 5/16 Tube, 1/8 BSPT is commonly used in Caravan RV gas systems due to its secure, reliable connection for gas lines and other fluid or air transfer applications. These fittings are critical for creating leak-proof connections in high-pressure environments, such as LPG (Liquefied Petroleum Gas) systems commonly found in Caravans and RVs.
Key Features:
-
SAE 45 Degree Flare:
- This fitting features a 45-degree flare on one side, which is commonly used in gas lines and high-pressure fluid systems. The flare fitting ensures a secure and tight seal when connected to 5/16-inch tubing, which is typically used for gas lines in caravans and RVs. This helps to prevent leaks, ensuring safe operation in your RV or caravan.
-
Male Union Design:
- The male union part of the fitting allows easy connection to other components, such as valves, hoses, or pipes, with 1/8 BSPT female threads. This is an ideal setup for caravan and RV gas systems, where ease of assembly and maintenance are important.
-
5/16 Tube Size:
- The 5/16-inch size is a standard for many gas lines and fluid systems in caravans, RVs, and other mobile setups. It allows for easy integration with flexible hoses and other fittings used in the gas system.
-
1/8 BSPT Thread:
- The fitting features 1/8 BSPT (British Standard Pipe Tapered) threads on the male end. These tapered threads provide a tight, leak-free connection in gas systems when paired with female BSPT threads. BSPT threads are commonly used in gas and plumbing systems across many regions, making this fitting versatile and reliable.
-
Brass Construction:
- Brass is known for its durability, corrosion resistance, and ability to withstand high pressures, making it an excellent material for fittings used in gas systems, where reliability and safety are critical.
-
Versatile Use in Caravan/RV Gas Systems:
- This fitting is designed specifically for use in caravan and RV gas lines, which often require a combination of high-pressure connections and secure fittings for both LPG and natural gas systems. This makes it perfect for connecting gas hoses, regulators, valves, and other essential components in your mobile home’s gas setup.
Benefits of Using This Fitting in Caravan/RV Gas Systems:
-
Leak-Free, Secure Connections:
- The 45-degree flare connection is perfect for creating secure, high-pressure seals, which are crucial in gas systems where leaks could be hazardous.
-
Corrosion-Resistant:
- Made from brass, the fitting is corrosion-resistant and capable of enduring exposure to moisture, humidity, and other harsh elements in outdoor and mobile environments, ensuring long-lasting performance.
-
Durability Under High Pressure:
- Whether it’s for your propane system or natural gas, the fitting is designed to withstand high-pressure applications, ensuring reliable performance throughout your journey.
-
Easy Installation and Maintenance:
- The male union design allows for quick and easy connection, with the ability to disconnect for maintenance or repairs. This feature is especially useful in the mobile lifestyle of RV and caravan owners, who may need to make adjustments while on the move.
-
Compatibility with Other Fittings:
- The 1/8 BSPT thread ensures compatibility with other standard gas system components commonly used in caravans and RVs, such as regulators, valves, and adapters.
Common Applications in Caravan/RV Systems:
-
LPG Gas Supply:
- This fitting is ideal for connecting LPG gas cylinders to the gas supply system in caravans and RVs. It helps ensure a safe and secure connection between gas tanks, lines, and appliances like stoves, heaters, and water heaters.
-
Gas Regulators:
- In caravans and RVs, a gas regulator controls the pressure of the gas from the cylinder to the appliances. The SAE 45-degree flare brass fitting with 1/8 BSPT threads is used to connect the regulator to the gas pipe or tubing securely.
-
Gas Appliances:
- The fitting is used to connect the gas piping to the appliances in a caravan or RV, such as gas stoves, heaters, and hot water systems, ensuring a reliable and safe gas flow.
-
Maintenance and Repair:
- The male union feature allows for easy disconnection of parts for maintenance, repairs, or upgrades in the gas system.
Installation Tips:
-
Prepare the Tube:
- Ensure the 5/16-inch tube is properly flared to a 45-degree angle before inserting it into the fitting. A clean, smooth flare is crucial for a tight, leak-free connection.
-
Tighten the BSPT Connection:
- Thread the 1/8 BSPT male end of the fitting into the corresponding female BSPT fitting or gas regulator, using a wrench to secure it tightly. Make sure to not over-tighten, as this can cause damage to the threads or lead to a poor seal.
-
Check for Leaks:
- After installation, check for gas leaks using a leak detection solution or bubble test. Any sign of bubbles means there is a leak, and the fitting needs to be re-tightened or replaced.
-
Regular Maintenance:
- Periodically check your gas system for leaks or wear and tear, especially when using fittings in an RV or caravan, where the system is subject to constant movement and vibration.
