Product Description

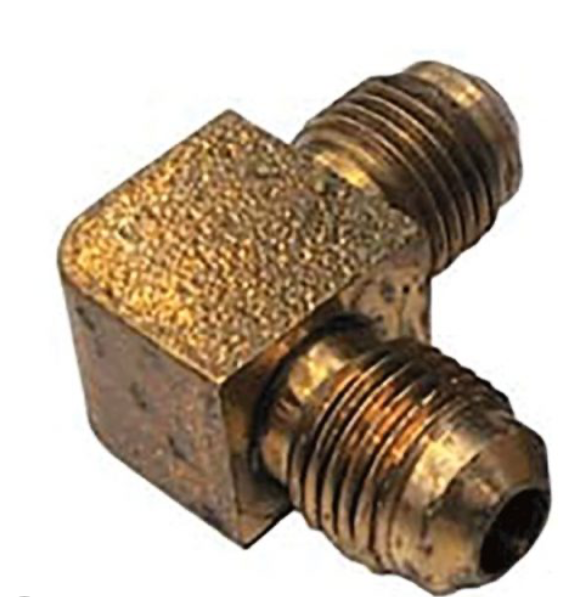

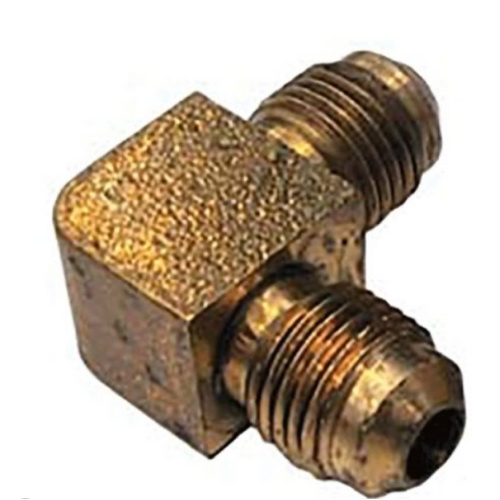

he SAE Male x SAE Male Double Elbow 5/16″ x 5/16″ is a specialized fitting used in Caravan and RV gas systems. It is designed to allow you to connect two components, both with SAE male flare threads, at a 90-degree angle, facilitating changes in the direction of gas lines or connections within the system.
Key Features:
-
SAE Male Flare x SAE Male Flare Threads:
- Both ends of the fitting have 5/16″ SAE male flare threads, making it ideal for connecting two gas hoses, regulators, or other components that use SAE male flare fittings. SAE male flare threads are commonly used in gas systems for their ability to create tight, secure seals.
- The flare type ensures a leak-free connection when installed correctly.
-
90-Degree Double Elbow:
- The fitting has a 90-degree elbow design, allowing you to change the direction of the gas line by 90 degrees. This is especially useful in tight spaces, like inside a Caravan or RV, where you need to route the gas line around other components or obstacles.
-
Material:
- This fitting is typically made of brass or steel, which are durable and corrosion-resistant materials. Brass is especially preferred in gas fittings due to its resistance to rust and corrosion, ensuring long-lasting performance, especially in outdoor conditions.
-
Leak-Free Connection:
- The SAE flare threads create a tight seal when properly installed, preventing gas leaks. This is critical for LPG systems, where leaks can lead to safety hazards.
-
Size:
- The 5/16″ SAE male flare threads on both ends of the fitting make it compatible with 5/16″ SAE flare gas hoses or components, allowing for a seamless connection between different parts of your gas system.
Benefits of Using the SAE Male x SAE Male Double Elbow 5/16″ x 5/16″ in Caravan/RV Gas Systems:
-
Leak Prevention:
- The SAE male flare threads ensure a secure, leak-free connection, which is essential for safety in LPG-powered systems. The tight seal prevents any gas leaks, reducing the risk of dangerous situations.
-
Space-Saving Design:
- The 90-degree elbow allows you to make sharp turns in the gas line, helping you save space and route gas lines more efficiently in tight or confined spaces often found in Caravans or RVs.
-
Durability:
- Made from brass or steel, this fitting is highly durable and resistant to corrosion, ensuring that it performs well even in harsh outdoor environments or under constant use in your Caravan or RV.
-
Easy Installation:
- The SAE flare threads are easy to connect and tighten, and the 90-degree angle makes it easier to route the gas lines to the necessary positions, avoiding sharp bends or kinks.
-
Versatility:
- This fitting can be used to connect various components in LPG systems where SAE male flare threads are standard. Its elbow design is ideal for systems where a change in direction is necessary.
Common Uses in Caravan/RV Gas Systems:
-
Routing Gas Lines:
- The 90-degree elbow design allows for efficient routing of gas lines within tight spaces, allowing you to change the direction of the line without bending or kinking the hose, which could restrict gas flow or cause safety issues.
-
Connecting Components:
- This fitting can be used to connect gas hoses, regulators, or other components in LPG-powered systems where SAE male flare threads are used.
-
Repair or Replacement:
- If you need to replace or repair a section of gas line, this fitting can be used to connect two parts at a right angle, ensuring the system continues to function properly.
-
Appliance and Gas Line Connections:
- This fitting is helpful when connecting LPG appliances or other gas-powered equipment that requires SAE male flare connections at an angle.
Installation Tips:
-
Inspect Threads:
- Before installation, ensure the SAE male flare threads on both ends of the fitting and the corresponding components (hoses or regulators) are free of dirt or debris. Contaminants can prevent the fitting from sealing properly.
-
Hand Tighten First:
- Begin by hand-tightening the fitting to avoid cross-threading and to ensure the threads are properly aligned.
-
Use a Wrench:
- Once the fitting is hand-tightened, use a wrench to securely tighten the connection. Be careful not to over-tighten, as this can damage the threads or crack the fitting.
-
Check for Leaks:
- After installation, check for gas leaks using a leak detection solution (such as soapy water). If bubbles form, it indicates a leak, and the fitting should be tightened further.
-
Regular Maintenance:
- Periodically inspect the gas system for leaks, especially after traveling or movement that could affect the connection.
