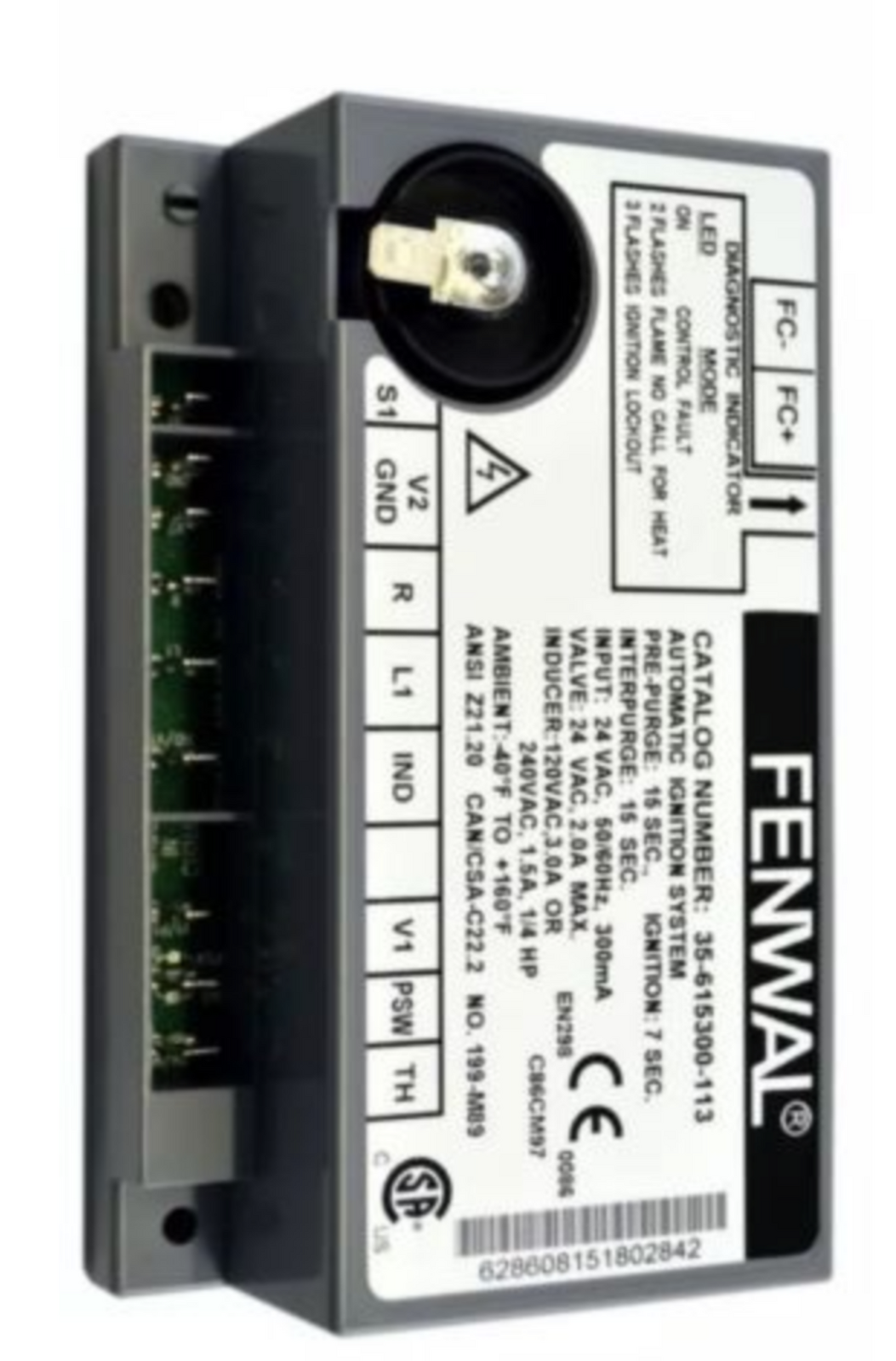

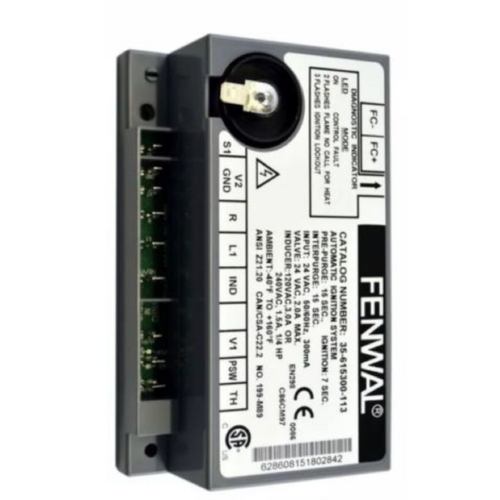

Braemar TG3 Star Ignition Unit Fenwal 35-615300-113 for Gas Ducted Heaters PN. 628608
SKU: 19974
$269.00
The Braemar TG3 Star Ignition Unit Fenwal 35-615300-113 is an integral part of the ignition system in Braemar TG3 Star Gas Ducted Heaters. This unit is responsible for providing the electronic ignition required to safely ignite the gas burner, enabling the heater to produce heat for your space.
The Fenwal 35-615300-113 Ignition Unit is a highly reliable and efficient ignition control designed to work specifically with Braemar TG3 Star Gas Ducted Heaters. This unit uses electronic ignition technology to initiate the combustion process by producing a high-voltage spark that ignites the gas supplied to the burner.
Electronic Ignition:
The Fenwal 35-615300-113 unit uses electronic ignition, which eliminates the need for a constantly burning pilot light. This not only increases energy efficiency but also ensures more reliable performance, as the spark is generated only when required.
The high-voltage spark ignites the gas burner when the heater needs to start its operation, which is controlled by the thermostat.
Compatibility:
This ignition unit is designed for the Braemar TG3 Star Gas Ducted Heaters. It works seamlessly with these models to provide the safe and efficient ignition needed for reliable heating.
The Part Number 628608 is associated with the unit, typically used for ordering a replacement part for the Braemar TG3 Star series heaters.
Flame Detection:
After the ignition occurs, the unit ensures the flame stays lit by continuously monitoring it. If the flame fails to ignite or is extinguished prematurely, the Fenwal 35-615300-113 unit will shut off the gas supply to prevent any risks associated with unburnt gas accumulation.
This flame detection system enhances safety and ensures that the heating system operates as intended.
Safety Features:
The ignition unit is equipped with multiple safety features, including:
Flame failure protection: Automatically shuts off the gas supply if the flame is not detected or is lost.
Overheat protection: Prevents overheating by ensuring the system operates within safe temperature limits.
Gas cut-off: In case of ignition failure or flame loss, the gas flow is stopped to ensure no unburned gas is released into the environment.
Durable and Reliable:
The Fenwal 35-615300-113 ignition unit is designed to be durable and compact, capable of enduring high heat and the demanding conditions inside a gas-fired heating system.
It ensures reliable long-term operation, providing consistent ignition for the heater throughout its lifespan.
Signal from Thermostat:
When the thermostat signals that heating is required, the ignition unit starts its sequence.
Gas Flow:
The unit opens the gas valve, allowing gas to flow into the burner area.
Spark Generation:
The ignition unit generates a high-voltage spark, which ignites the gas in the burner, starting the combustion process that generates heat.
Flame Detection:
After ignition, the unit continuously monitors the flame to ensure that it remains stable. If the flame goes out or fails to ignite, the system will automatically stop the gas flow to avoid dangerous situations.
Ongoing Safety Monitoring:
The ignition unit maintains constant monitoring to ensure the flame is present throughout the heating cycle, keeping the gas flow secure.
The Fenwal 35-615300-113 Ignition Unit is used in Braemar TG3 Star Gas Ducted Heaters, which are commonly installed in residential and commercial buildings for central heating. The unit plays a critical role in ensuring that the gas burner ignites safely and reliably, allowing the system to provide consistent and efficient heating through the ducts.
If your Braemar TG3 Star Heater is experiencing issues like failure to ignite, inconsistent heating, or gas flow problems, it’s possible that the Fenwal 35-615300-113 Ignition Unit may need replacement. Some of the common issues include:
Ignition failure: If the ignition unit does not generate a spark or the spark is weak, the heater will not ignite.
Flame detection failure: If the unit does not detect the flame after ignition, it will shut off the gas supply for safety reasons.
Intermittent heating: A faulty ignition unit may cause the heater to turn on and off erratically.
If you are experiencing ignition or heating problems, replacing the Fenwal 35-615300-113 Ignition Unit may resolve the issue. Here’s how you can replace the ignition unit:
Turn off the power to the heater and ensure that the gas supply is completely turned off.
Locate the ignition unit inside the heater, typically near the gas valve and burner assembly.
Disconnect the electrical wiring from the old unit, being careful to note the configuration of the wires for reinstallation.
Remove the old ignition unit and install the new Fenwal 35-615300-113 Ignition Unit in its place.
Reconnect the wiring and ensure everything is securely connected.
Test the system: Once the unit is installed, power on the heater to verify that the ignition is working properly and the heater operates safely.
The Braemar TG3 Star Ignition Unit Fenwal 35-615300-113 is a vital component that ensures the safe and efficient operation of gas ducted heaters. By providing the spark needed for ignition and continuously monitoring the flame for safety, this unit plays a crucial role in maintaining reliable heating performance.
| SKU | 19974 |
| Brand | Braemar |
