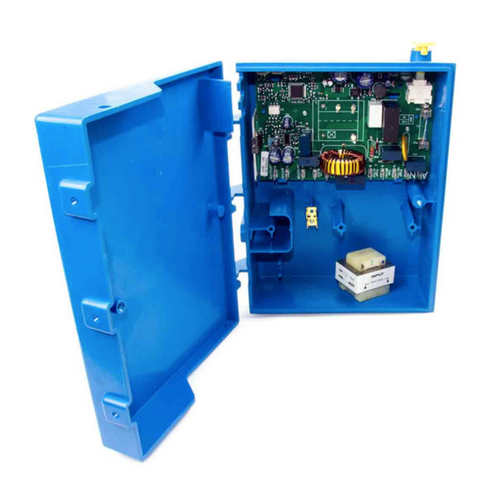

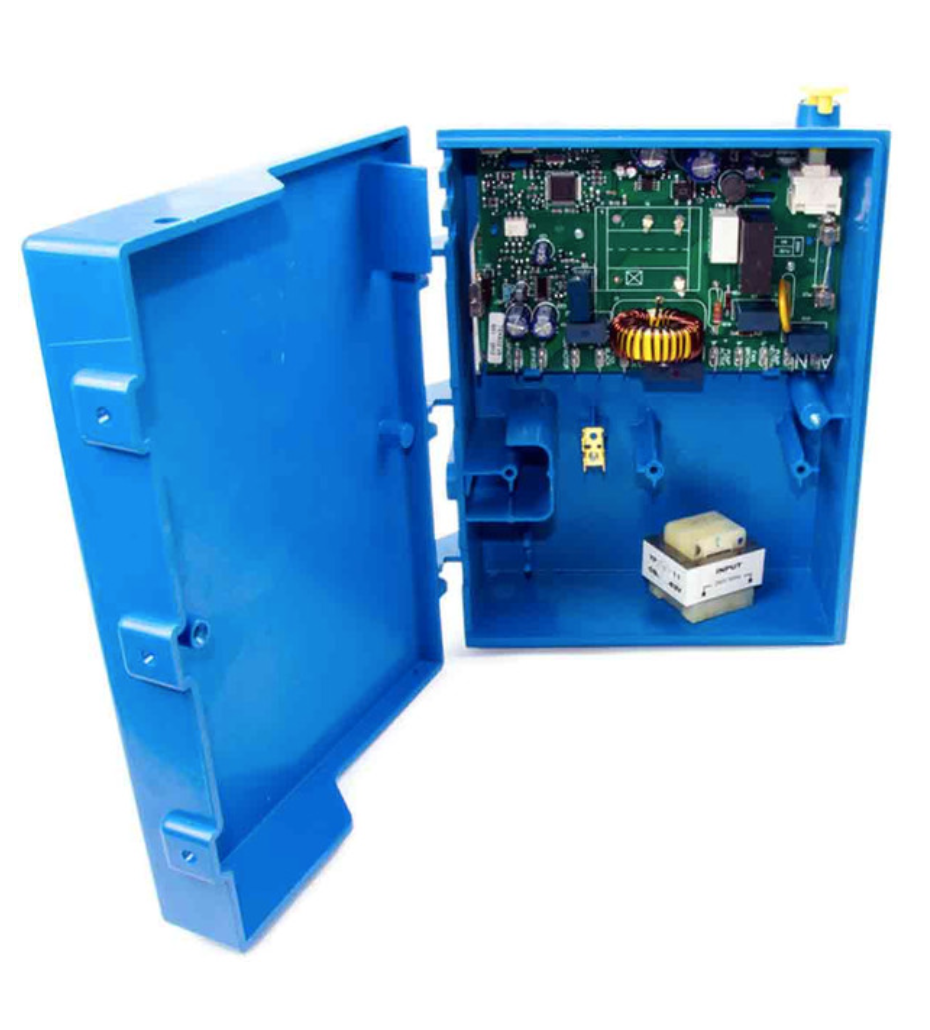

Bonaire & Climate Tech Evaporative Cooler TEK600 & TEK632 Control Board 6051610SP

Description
Specifications

Product Description

The Bonaire & Climate Tech Evaporative Cooler Control Board TEK600 & TEK632 with part number 6051610SP is a crucial component for managing the electrical functions of the TEK600 and TEK632 models of evaporative coolers from Bonaire and Climate Tech. These coolers are commonly used to provide energy-efficient cooling in homes and commercial spaces by utilizing the process of evaporation.

Key Features of the Control Board (Part Number 6051610SP):

Control Board (PCB):
- The control board (also known as the PCB or Printed Circuit Board) is the heart of the evaporative cooler's electronic system.
- It serves as the central hub for managing the cooler's various functions, including fan speed, pump control, and the coordination between sensors and switches.
Model Compatibility:
- This control board is designed specifically for Bonaire TEK600 and TEK632 evaporative coolers. These models are widely used in evaporative cooling systems, and the board ensures that all electrical components work together harmoniously.
Fan Speed and Pump Control:
- The control board regulates the operation of the fan motor (which circulates air) and the pump (which supplies water to the cooling pads for evaporation).
- It can manage multiple fan speeds and adjust the operation of the pump to ensure optimal cooling performance based on the user’s settings or external environmental factors.
Temperature and Humidity Sensors:
- The control board typically integrates with temperature and humidity sensors to optimize the cooler's performance. It helps ensure that the system operates efficiently based on the indoor and outdoor conditions, maintaining an ideal cooling environment.
Safety and Operational Monitoring:
- The PCB monitors various safety functions, such as ensuring the pump operates correctly (to prevent the cooling pads from drying out), and checking that the fan runs smoothly.
- It can also handle shut-down or error messages if the system detects issues like low water levels, pump failure, or fan malfunctions.

Functions:

Cooling Regulation:
- The control board receives input from temperature and humidity sensors, adjusting the fan speed and water pump to optimize cooling.
Power Distribution:
- It sends power to various components, such as the fan motor and the water pump, ensuring that the evaporative cooler operates smoothly and efficiently.
Safety Monitoring:
- The board can shut down the cooler if it detects faults, such as low water levels, malfunctioning fan, or other critical issues, preventing damage to the system or unsafe operation.
Fan and Pump Synchronization:
- The control board ensures that the fan and pump work in sync. For example, it ensures that the water pump is turned on before the fan starts, preventing dry operation of the cooling pads.

Importance:

Central Control: As the central unit managing the cooler's operations, a faulty control board can lead to issues such as the fan or pump not functioning, improper cooling, or failure to start the cooler at all.
Efficiency: The control board is designed to maximize the efficiency of the evaporative cooler, ensuring that the system operates effectively and consumes minimal power.
Troubleshooting: If the cooler is not responding to settings, failing to cool, or showing error messages, the control board might need to be inspected or replaced.

Usage:

The 6051610SP Control Board is typically used when the existing control board in a Bonaire TEK600 or TEK632 unit fails or when the system experiences electrical issues like unresponsive buttons, improper fan or pump operation, or system errors that prevent it from cooling effectively.
Signs that the control board may need to be replaced include:
- Cooler failure to start or shut down.
- Irregular fan operation, such as the fan running at a constant speed or not responding to changes in settings.
- Pump failure or malfunctioning water pump.
- Error codes or flashing lights on the control panel that cannot be reset.

Installation:

Replacing the control board requires turning off the power to the evaporative cooler, removing the access panel, and disconnecting the old control board.
The new control board is then installed, and all connections must be made correctly, including those to the fan motor, water pump, sensors, and control switches.
Important: If you're not familiar with working with electrical components or HVAC systems, it's advisable to have a professional technician replace the control board to ensure proper installation and safe operation.

Conclusion:

The Bonaire & Climate Tech Evaporative Cooler Control Board 6051610SP is an essential part for the TEK600 and TEK632 models. It controls the various functions of the evaporative cooler, ensuring that it operates efficiently, safely, and reliably. If you're experiencing issues like failure to start, improper cooling, or system errors, replacing the control board may resolve the problem. Always ensure compatibility and consider professional assistance if necessary.
