Product Description

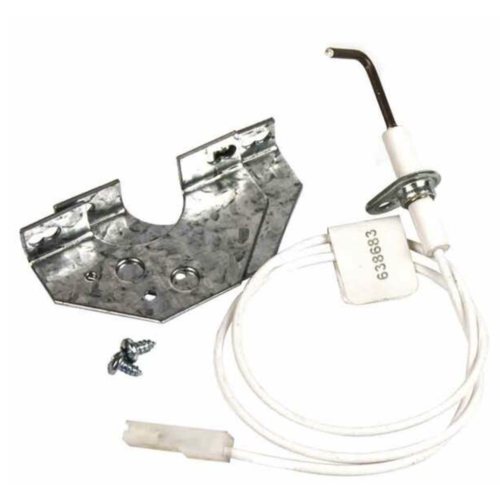

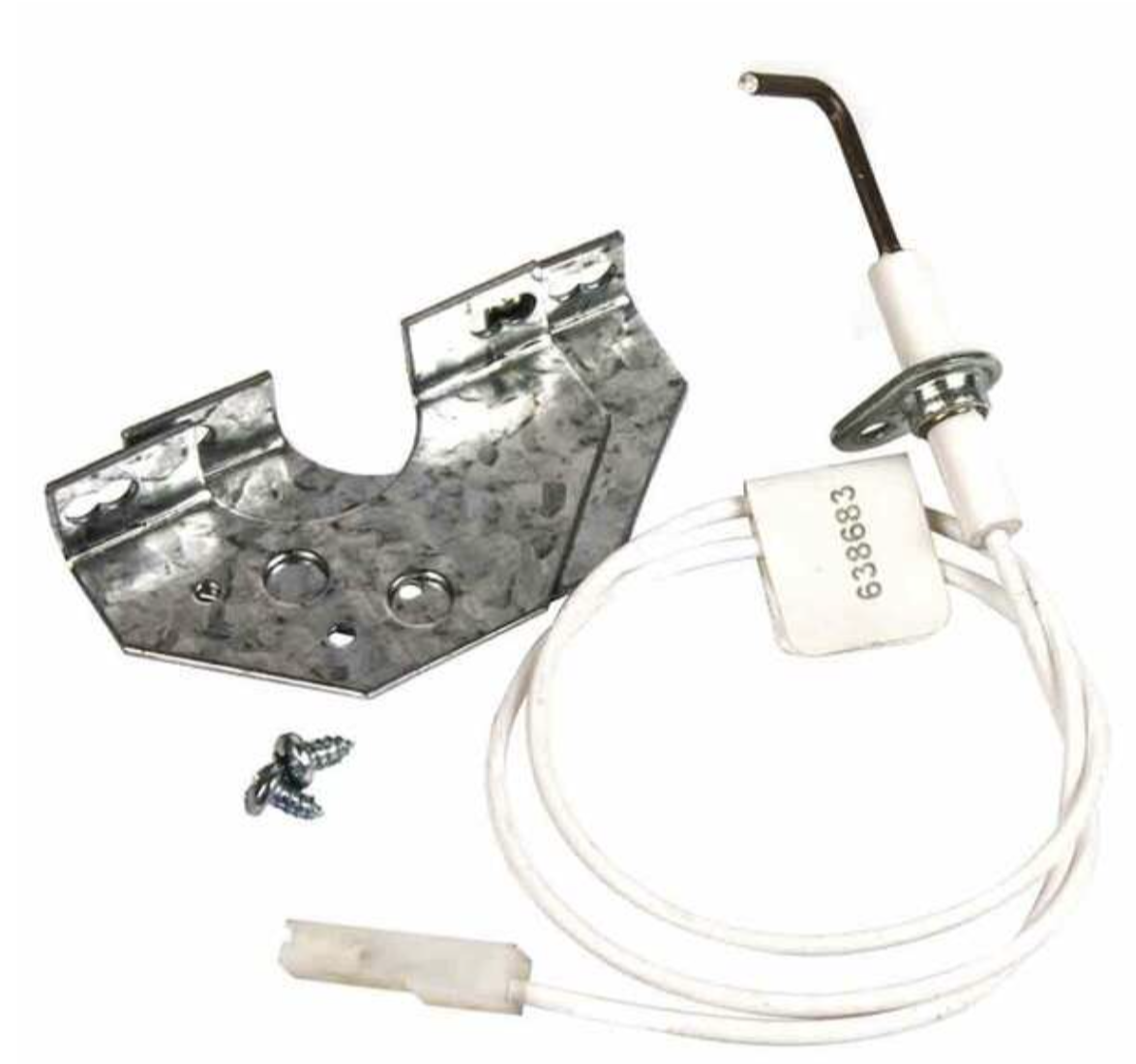

The Braemar Ignition Spark & Sensor Kit for Gas Heaters is an essential replacement kit for various Braemar gas heaters, ensuring safe ignition and proper flame sensing. This kit includes key components responsible for the ignition process and detecting the flame after ignition.
Key Components of the Braemar Ignition Spark & Sensor Kit:
-
Ignition Spark Electrode:
- The ignition electrode generates a spark that ignites the gas in the burner assembly when the heater is turned on. It is responsible for creating the initial spark needed to start the heating process.
- It works in conjunction with the gas valve to ignite the fuel once the gas is released into the burner.
-
Flame Sensor:
- The flame sensor is a critical safety feature that ensures the gas heater operates only when a flame is present. It detects the flame and sends a signal to the gas control system to confirm that combustion is occurring safely.
- If no flame is detected, the sensor will automatically shut off the gas supply to prevent the release of unburned gas, which could be hazardous.
-
Electrode Leads and Connectors:
- The kit may include leads and connectors to properly wire and connect the ignition electrode and flame sensor to the gas control system.
Importance of the Ignition Spark & Sensor Kit:
- Safety: The flame sensor is a vital component in ensuring safe operation of the heater. It prevents gas from flowing if no flame is detected, avoiding dangerous gas leaks.
- Efficiency: The ignition spark electrode ensures proper ignition, preventing wasted gas and ensuring the heater fires up every time without fail.
- Reliable Operation: A faulty spark electrode or flame sensor can cause erratic operation or complete failure to ignite. Replacing these components ensures consistent and reliable heating.
Symptoms of Faulty Components:
- No Ignition: If the ignition spark electrode is faulty, the heater may fail to ignite, leaving the system inoperable.
- Erratic Operation: A malfunctioning flame sensor may cause the heater to shut down unexpectedly or cycle on and off, even though the flame is present.
- Error Codes: Many Braemar heaters will display error codes when there is an issue with the ignition or flame sensing components, helping to diagnose the problem.
- Gas Leak: A faulty flame sensor could fail to detect the flame, leading to a dangerous gas leak if the gas supply is not automatically cut off.
How to Replace the Braemar Ignition Spark & Sensor Kit:
-
Turn Off Power and Gas Supply:
- Before starting, make sure to turn off the gas supply and disconnect the power to the heater. This is crucial to ensure safety during the replacement process.
-
Remove the Heater's Access Panel:
- Most Braemar gas heaters will have a front or side panel that needs to be removed to access the burner and ignition components. You may need a screwdriver or wrench, depending on the model.
-
Locate the Ignition Components:
- Find the ignition electrode and flame sensor near the burner assembly. These are typically mounted close to where the gas is ignited.
-
Disconnect the Old Components:
- Carefully disconnect the leads and any electrical connections attached to the faulty ignition spark electrode and flame sensor.
- Note the positioning of the components and the wiring configuration for accurate reinstallation.
-
Install the New Spark & Sensor Kit:
- Install the new spark electrode and flame sensor in the same positions as the old components. Ensure they are securely attached and aligned properly.
-
Reconnect the Electrical Leads and Gas Lines:
- Reconnect the wires and leads to the appropriate terminals on the gas control system. Be sure the connections are secure and in the correct order.
-
Reassemble the Heater:
- Once everything is connected, close the access panel and secure it in place.
-
Test the Heater:
- Reconnect the gas supply and power to the heater. Test the unit to ensure proper ignition and functioning of the flame sensing system.
- Watch for any error codes or issues, and verify that the heater is operating smoothly.
Maintenance Tips:
- Regular Cleaning: Clean the ignition electrodes and flame sensors periodically to remove dust, carbon buildup, or other debris that can cause malfunctions.
- Inspect for Damage: Check for any cracks, corrosion, or wear in the spark electrode and flame sensor. If these parts show signs of damage, it’s important to replace them immediately to avoid heater malfunction.
- Monitor Heater Performance: Ensure the flame sensor is consistently detecting the flame and that the heater is operating efficiently. If you notice inconsistent heating or frequent shutdowns, the sensor or electrode may need replacement.
Conclusion:
The Braemar Ignition Spark & Sensor Kit is an essential replacement part for maintaining the ignition and flame sensing system in your Braemar gas heater. Replacing these components ensures safe, efficient, and reliable operation of the heater. If you’re experiencing issues like failure to ignite, erratic heating, or error codes, this kit could be the solution. Always follow safety guidelines when replacing gas components and consider having a professional technician perform the installation if you’re not comfortable with the process.
