Product Description

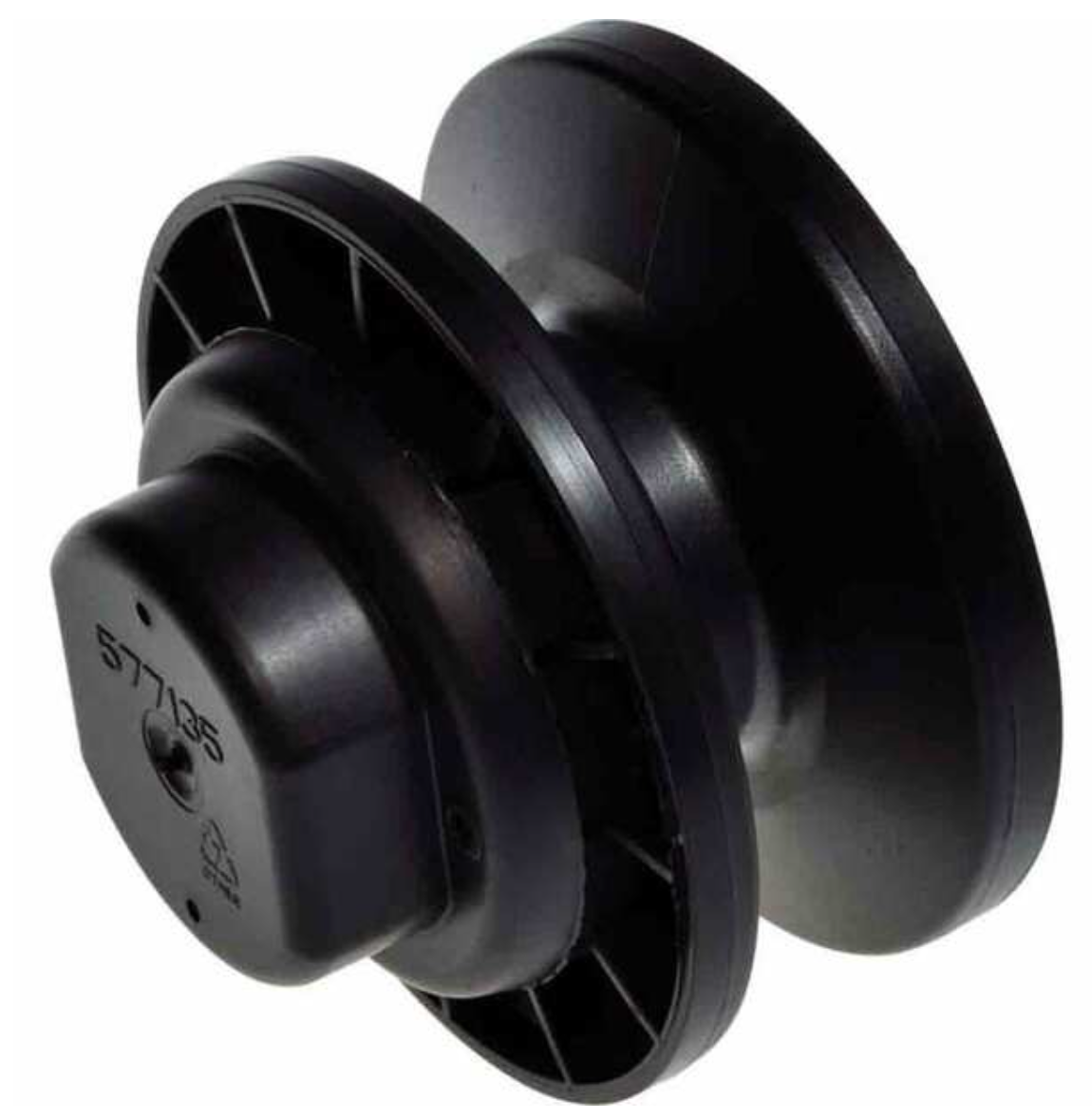

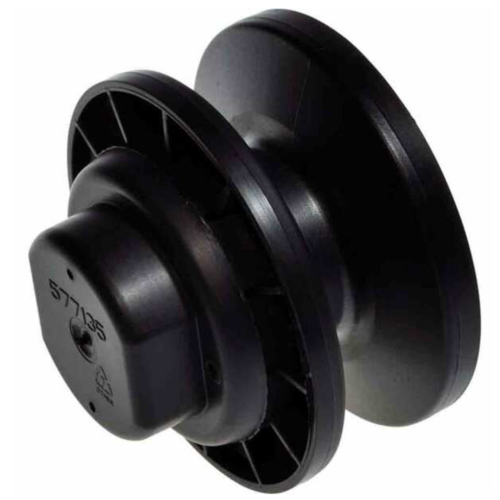

The Braemar Evaporative Cooler Adjustable Belt Drive Motor Pulley 90mm is a key component used in Braemar evaporative cooling systems. This part helps in the operation of the belt-driven motor, which powers the fan and helps circulate cool air throughout the space. The motor pulley is typically located in the motor assembly, and its function is crucial for ensuring that the belt operates smoothly and efficiently.
Key Features and Function of the Braemar Evaporative Cooler Adjustable Belt Drive Motor Pulley 90mm:
-
Belt-Driven Motor System:
- The motor pulley is part of the belt drive system. It works by connecting the motor shaft to the fan blades via a belt. The motor pulley transfers the motor's rotational energy to the fan, which circulates air through the evaporative cooler and into the living space.
-
Adjustable Design:
- The adjustable pulley allows for precise control over the belt tension and motor speed. By adjusting the pulley, you can optimize the system's performance, ensuring the motor runs efficiently and prevents excessive wear on the belt. The ability to adjust the pulley also helps in fine-tuning the airflow and cooling capacity of the system.
-
90mm Diameter:
- The 90mm size refers to the diameter of the pulley, which plays a role in the belt speed and the fan's operating speed. A larger or smaller pulley can influence how quickly the fan turns, which in turn affects the cooling performance. This pulley is designed to match the specifications for Braemar evaporative coolers.
-
Material:
- The pulley is usually made from durable materials, such as aluminum or high-quality plastic, to withstand the rotational forces and potential wear from constant use.
-
Efficient Cooling Performance:
- When functioning properly, the pulley ensures that the motor operates at the correct speed and that the fan blades spin at an appropriate speed to maximize airflow and cooling.
Symptoms of a Faulty Pulley:
-
Inadequate Airflow:
- If the motor pulley is damaged, misaligned, or the belt is too loose/tight, the fan may not spin at the correct speed, resulting in reduced airflow and less efficient cooling.
-
Excessive Noise:
- A worn-out or misaligned pulley can cause friction between the motor and the belt, resulting in unusual noises such as squealing, grinding, or rattling.
-
Belt Slippage:
- If the pulley is too loose or the adjustment mechanism is faulty, the belt might slip off the motor or lose traction, causing the fan to stop working or function poorly.
-
Motor Overheating:
- A misaligned or worn pulley can cause the motor to work harder than necessary, leading to overheating and potentially damaging the motor.
How to Replace the Braemar Evaporative Cooler Adjustable Belt Drive Motor Pulley 90mm:
-
Turn Off Power and Disconnect:
- Always ensure that the power to the evaporative cooler is turned off before performing any maintenance or repairs. Disconnect the power supply to avoid any electrical hazards.
-
Access the Motor Pulley:
- You may need to remove the access panels or casing around the motor assembly to access the pulley. The pulley is typically located on the side of the motor, where the belt connects.
-
Loosen the Pulley Adjustment:
- Use the appropriate tools to loosen the adjustment bolts or set screws that hold the pulley in place. These bolts allow you to slide the pulley for adjustments in tension or to remove it.
-
Remove the Old Pulley:
- Carefully remove the old pulley by loosening any remaining fasteners and sliding it off the motor shaft. Be cautious when handling the pulley to avoid damaging any surrounding components.
-
Install the New Pulley:
- Position the new Braemar Evaporative Cooler Adjustable Belt Drive Motor Pulley 90mm onto the motor shaft. Ensure it is properly aligned and seated. Adjust the pulley for the desired tension and motor speed settings.
-
Reattach the Belt:
- After the new pulley is installed, reattach the belt and ensure that it is tight enough for proper operation but not overly tight to cause excessive wear.
-
Test the System:
- Once the pulley is installed, reconnect the power and turn on the evaporative cooler. Observe the motor and belt system to ensure everything is functioning correctly, with no unusual noise, slippage, or issues with airflow.
Maintenance Tips:
-
Check Belt Tension Regularly:
- It’s a good idea to check the belt tension and pulley alignment periodically to ensure that they remain in good condition and operate efficiently.
-
Lubricate Moving Parts:
- Keep the motor pulley and surrounding parts well-lubricated to reduce friction and wear. Use the appropriate lubricant recommended by the manufacturer.
-
Inspect for Wear and Tear:
- If the motor pulley or the belt shows signs of wear, such as cracks, fraying, or distortion, replace them promptly to avoid further damage to the system.
Conclusion:
The Braemar Evaporative Cooler Adjustable Belt Drive Motor Pulley 90mm is essential for the efficient operation of the cooler's belt-driven motor. It ensures that the fan operates at the correct speed for maximum airflow and cooling efficiency. If your evaporative cooler is experiencing issues such as reduced airflow, excessive noise, or malfunctioning belts, the motor pulley could be the cause and should be inspected or replaced as necessary.
