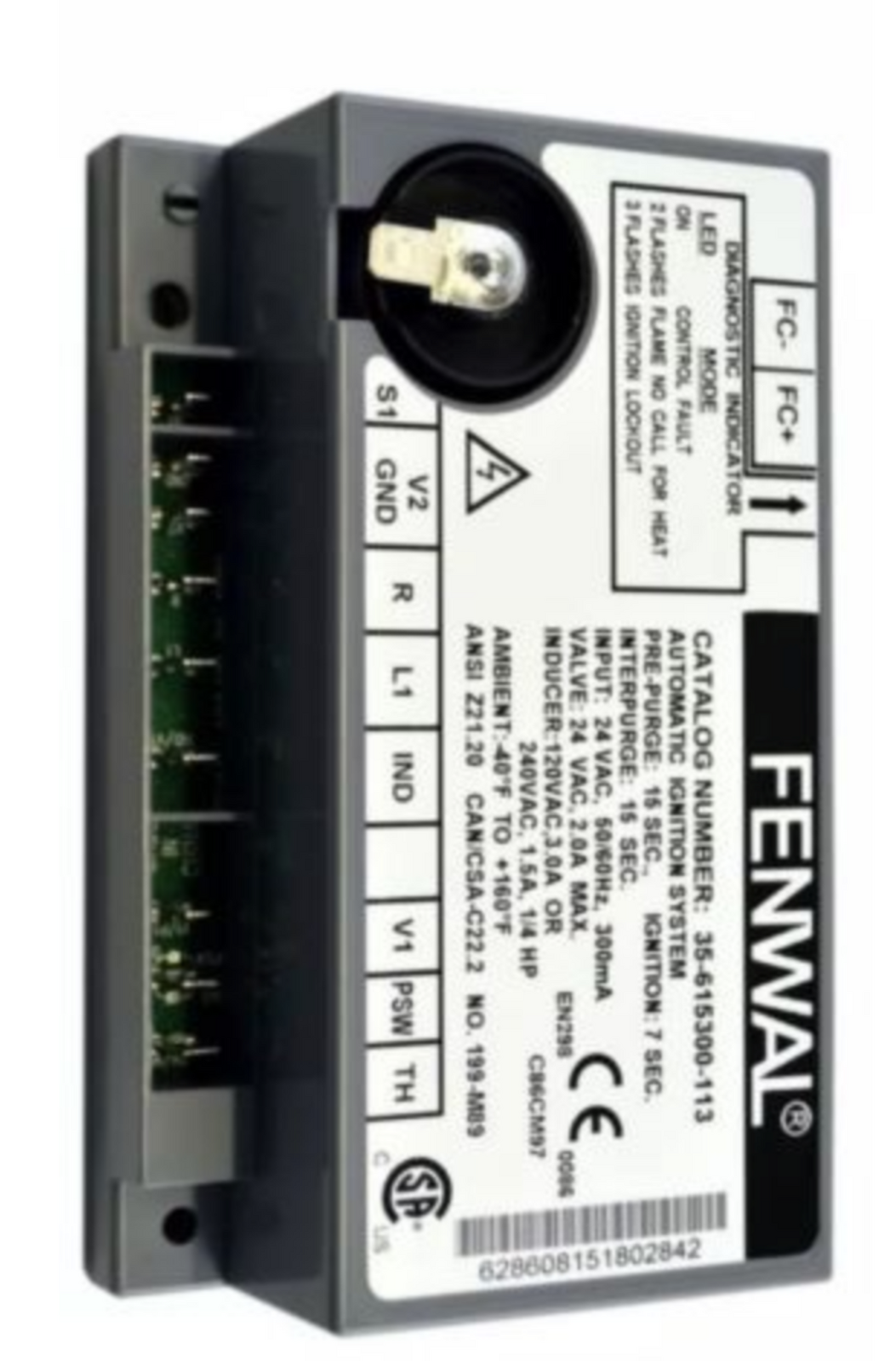

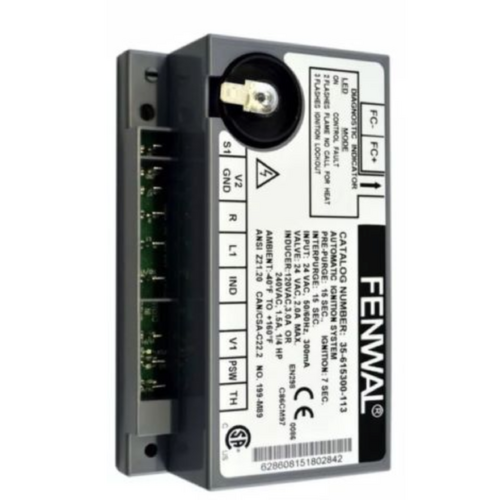

The Braemar TSS6 Star Ignition Unit Fenwal 35-615300-113 is an essential component for Braemar TSS6 Star Gas Ducted Heaters. This ignition unit is designed to safely and efficiently ignite the gas burner, which is a crucial function for the overall operation of the heater. Using electronic ignition, it eliminates the need for a continuously burning pilot light, making the system more energy-efficient and safer to operate.
The Fenwal 35-615300-113 Ignition Unit is a high-performance ignition module used in gas ducted heating systems like the Braemar TSS6 Star models. It provides the necessary spark for ignition and includes several safety features to ensure the proper operation of the heating system.
Electronic Ignition:
The Fenwal 35-615300-113 ignition unit generates a high-voltage spark to ignite the gas in the burner. This process eliminates the need for a pilot light, making the heating system more energy-efficient and eco-friendly.
The ignition occurs only when required, reducing unnecessary gas consumption and contributing to the overall efficiency of the system.
Flame Detection and Safety:
The ignition unit includes flame detection technology that continuously monitors the flame after ignition. If the flame fails to ignite or is extinguished, the unit will shut off the gas flow to prevent the buildup of unburned gas, thus improving safety.
Flame failure protection ensures that the gas is only supplied to the burner if a stable flame is present.
Durability and Reliability:
Designed with durable materials, the ignition unit is capable of withstanding the harsh conditions found in gas-powered heating systems, including high temperatures and frequent operation.
The Fenwal 35-615300-113 Ignition Unit is built to last, providing long-term reliability and reducing the need for frequent replacements.
Part Number 628608:
The Part Number 628608 refers to the Fenwal 35-615300-113 Ignition Unit, which is used specifically in Braemar TSS6 Star Gas Ducted Heaters. This part number is useful for sourcing the correct replacement unit.
Overheating and Protection Mechanisms:
The unit includes built-in overheating protection and gas shut-off mechanisms. If there is a malfunction or overheating occurs, the unit will shut off power or gas flow to avoid potential damage or safety hazards.
Thermostat Signals:
When the thermostat signals that heating is needed, the Fenwal 35-615300-113 ignition unit is activated, initiating the ignition process.
Gas Flow:
The ignition unit opens the gas valve to allow gas to flow into the burner.
Spark Generation:
The ignition unit generates a high-voltage spark, which ignites the gas in the burner, initiating the combustion process and starting the heating cycle.
Flame Detection:
Once the gas is ignited, the unit continuously monitors the flame to ensure it remains stable. If the flame is lost or fails to ignite, the unit will stop the gas flow to prevent dangerous situations.
Safety Monitoring:
The Fenwal 35-615300-113 Ignition Unit ensures that the system operates within safe limits by continuously monitoring the flame throughout the heater’s operation. If any irregularities are detected, the gas supply will be turned off to ensure safety.
The Fenwal 35-615300-113 Ignition Unit is designed specifically for Braemar TSS6 Star Gas Ducted Heaters. These heaters are typically used in residential and commercial heating applications, where they provide efficient centralized heating by circulating warm air through ducts.
The ignition unit plays a key role in ensuring the system ignites the gas properly, starts the heating process, and operates safely during its entire cycle.
If you're experiencing issues with your Braemar TSS6 Star Gas Ducted Heater, the Fenwal 35-615300-113 Ignition Unit might be at fault. Common problems include:
Failure to Ignite: If the ignition unit is not producing the necessary spark, the heater will fail to start.
Flame Detection Failure: If the ignition unit cannot detect the flame after the ignition, it will automatically cut off the gas flow as a safety feature.
Gas Flow Issues: If the ignition unit or associated components like the gas valve fail, the system may not be able to operate properly, resulting in no heat.
If you need to replace the Fenwal 35-615300-113 Ignition Unit, follow these general steps:
Turn Off Power and Gas:
Ensure that the gas supply is turned off, and the heater is powered off to avoid any potential hazards while working on the system.
Locate the Ignition Unit:
The Fenwal 35-615300-113 Ignition Unit is typically located near the burner assembly and gas valve. Refer to the Braemar TSS6 Star Heater manual for precise location instructions.
Disconnect Wiring:
Carefully disconnect the electrical wiring from the old ignition unit. Make note of the wiring configuration so you can reconnect the new unit properly.
Remove the Old Ignition Unit:
Remove the old ignition unit and prepare the installation of the new Fenwal 35-615300-113 unit.
Install the New Ignition Unit:
Position the new ignition unit and secure it in place. Reconnect the electrical wiring according to the notes or wiring diagram.
Reconnect the Gas Supply:
After installing the new unit, ensure that the gas supply is securely connected.
Test the Heater:
Once everything is reassembled, turn the power and gas supply back on. Test the heater to ensure that the ignition unit functions properly and the heater is operating safely.
The Braemar TSS6 Star Ignition Unit Fenwal 35-615300-113 is a critical component for Braemar TSS6 Star Gas Ducted Heaters, ensuring the system operates efficiently and safely. By providing electronic ignition, it eliminates the need for a continuously burning pilot light, improves energy efficiency, and enhances safety through flame detection and gas shut-off mechanisms. If you encounter issues such as failure to ignite or flame detection problems, replacing this unit may resolve the issue and restore proper operation of the heater.
SKU | 19979 |
Brand | Braemar |
