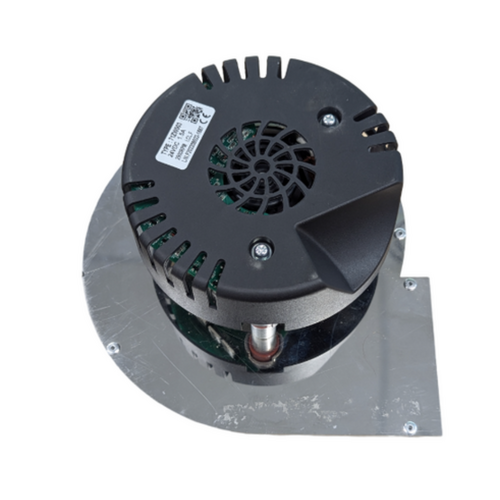

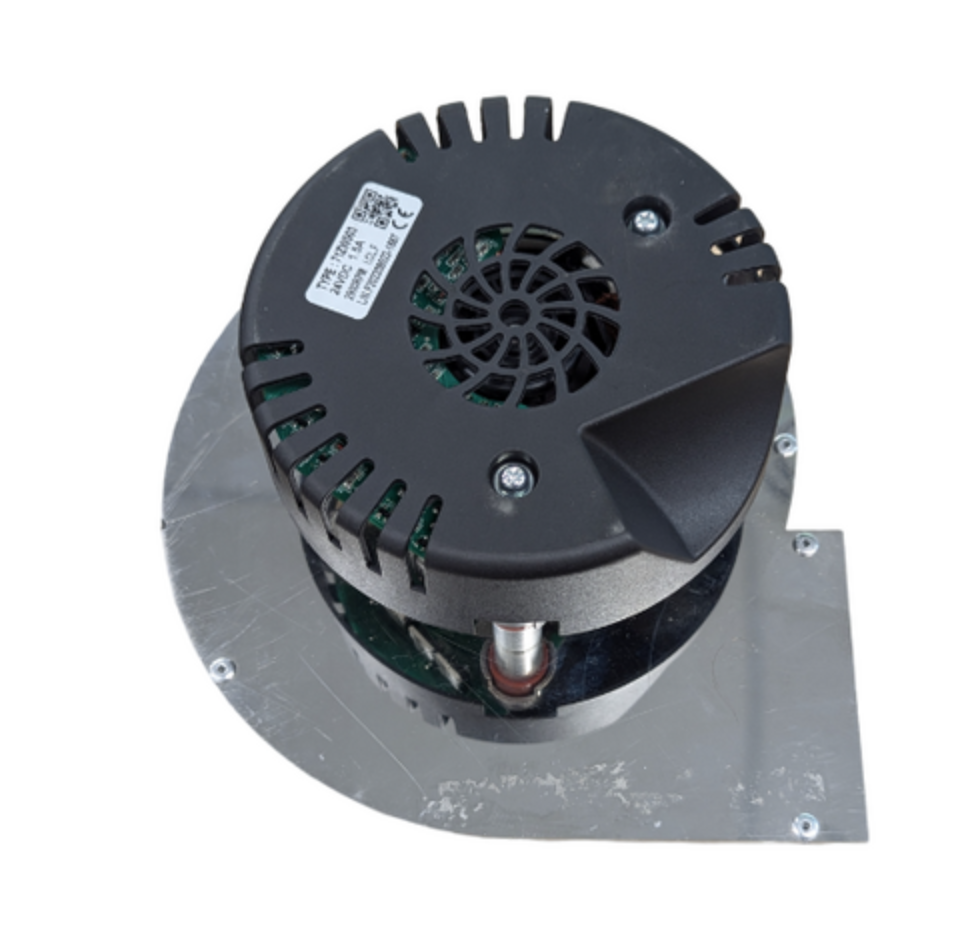

Braemar THM 632 & X Combustion Fan Assembly Small Ducted Gas Heater PN. 641638
SKU: 19961
$399.00
The Braemar THM 632 & X Combustion Fan Assembly for Small Ducted Gas Heaters (part number PN. 641638) is an essential component that ensures the heater operates efficiently and safely. Here’s a detailed overview of this assembly, its key functions, and important maintenance tips:
Combustion Air Supply: The combustion fan assembly plays a crucial role in supplying the combustion air to the burner in the Braemar THM 632 & X small ducted gas heater. Proper airflow is necessary for the gas to burn effectively, ensuring that the heater generates the right amount of heat efficiently.
Exhaust Gas Ventilation: In addition to providing combustion air, the fan also helps expel the exhaust gases from the heater after combustion. This is critical for preventing harmful gases, such as carbon monoxide, from accumulating in the system, ensuring safe operation of the unit.
Motorized Fan Operation: The fan is powered by an electric motor, which drives the blades to circulate air through the combustion chamber and exhaust gases out of the system. The motor is designed for energy efficiency and minimal noise while maintaining consistent performance.
Durable Construction: The fan assembly is built to withstand the high temperatures of the combustion process. It is made from heat-resistant materials to ensure durability and long-term operation without deterioration from heat exposure.
Compact and Integrated Design: This combustion fan assembly is specifically designed for the Braemar THM 632 & X models. Its compact size ensures that it fits seamlessly within the small ducted gas heater, allowing for efficient operation without taking up too much space inside the unit.
Energy Efficiency: The fan helps optimize the heater's combustion process, leading to more efficient fuel usage and better heat output. By ensuring the correct amount of combustion air and proper venting of exhaust gases, the fan assembly helps reduce energy waste and keep heating costs down.
Safety Functionality: The fan assembly plays a critical role in maintaining the safety of the heating system. It helps ensure that the heater burns the gas completely and expels harmful gases safely, reducing the risk of carbon monoxide buildup and fire hazards.
The combustion fan assembly works in coordination with the burner system of the Braemar THM 632 & X gas heater. Here’s how it functions:
Air Intake for Combustion: The fan draws air into the combustion chamber, mixing it with the gas for the burning process. The proper air-to-gas ratio ensures efficient combustion, maximizing heat output and minimizing energy consumption.
Expulsion of Exhaust Gases: After the gas burns, the fan helps to expel the exhaust gases through the venting system. These gases must be safely removed from the system to prevent harmful buildup and ensure the heater operates within safe parameters.
Maintaining Proper Airflow: The fan ensures a steady and controlled airflow to the burner. This constant airflow is necessary to maintain the correct combustion conditions for efficient and safe heater operation.
Proper maintenance of the combustion fan assembly is vital for ensuring that the Braemar THM 632 & X heater continues to function efficiently. Here are some tips for maintenance and troubleshooting:
Regular Inspection: Regularly inspect the fan assembly for any signs of wear or damage. Look for cracks in the fan blades or any buildup of dust, dirt, or debris that could impair airflow.
Cleaning: The fan blades and motor can accumulate dust and dirt, reducing airflow and efficiency. Clean the fan assembly gently with a soft cloth or brush. Ensure the fan is free of debris, especially around the motor and blades, before turning the heater back on.
Check the Motor: The motor that powers the fan should run quietly and smoothly. If you notice any unusual sounds or if the fan is not spinning at the correct speed, the motor may require servicing or replacement. Listen for any grinding or rattling sounds, which can indicate that the motor is malfunctioning or the fan blades are unbalanced.
Inspect for Blockages: Ensure that the combustion air intake and exhaust vents are clear of blockages. Any obstruction can cause poor combustion, reduced efficiency, or even unsafe operating conditions. Clean any debris from the air intake or exhaust system.
Lubrication: The motor may need lubrication after prolonged use. Check the user manual for specific instructions regarding lubrication requirements for the motor. Proper lubrication ensures smooth operation and reduces wear on the motor.
Replace if Necessary: If the fan assembly is damaged or malfunctioning, it should be replaced promptly. Ensure that the replacement part is the correct one for the Braemar THM 632 & X model by using the specified PN. 641638.
If the combustion fan assembly (PN. 641638) needs to be replaced, follow these general steps:
Turn Off Power and Gas Supply: Always disconnect the power and gas supply to the heater before working on it to prevent accidents.
Access the Combustion Fan: Consult the Braemar THM 632 & X user manual to locate the combustion fan assembly. You may need to remove panels or covers to access the fan.
Disconnect Electrical and Gas Connections: Disconnect the electrical wiring and any gas connections attached to the fan assembly. Make a note of where each wire and connection goes to ensure proper reinstallation.
Remove the Old Fan Assembly: Remove the fasteners securing the old fan assembly in place. Carefully take out the old unit, making sure not to damage surrounding components.
Install the New Fan Assembly: Place the new combustion fan assembly (PN. 641638) into position and secure it with screws or fasteners. Reconnect any electrical and gas connections as needed.
Test the Heater: After installation, turn the power and gas back on and test the heater to make sure the combustion fan operates correctly. Ensure that the fan is circulating air properly and that the heater is producing heat efficiently.
The Braemar THM 632 & X Combustion Fan Assembly (PN. 641638) is crucial for ensuring the safe, efficient operation of the small ducted gas heater. It ensures that combustion air is provided and exhaust gases are safely vented, allowing the system to function optimally and safely. Regular maintenance and timely replacement of the fan assembly are key to keeping your heating system running at its best.
| SKU | 19961 |
| Brand | Braemar |
