Product Description

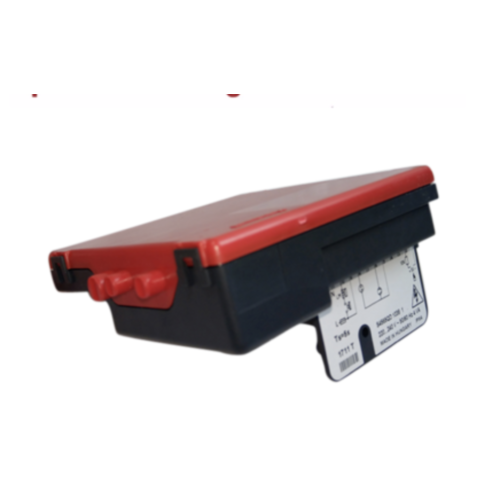

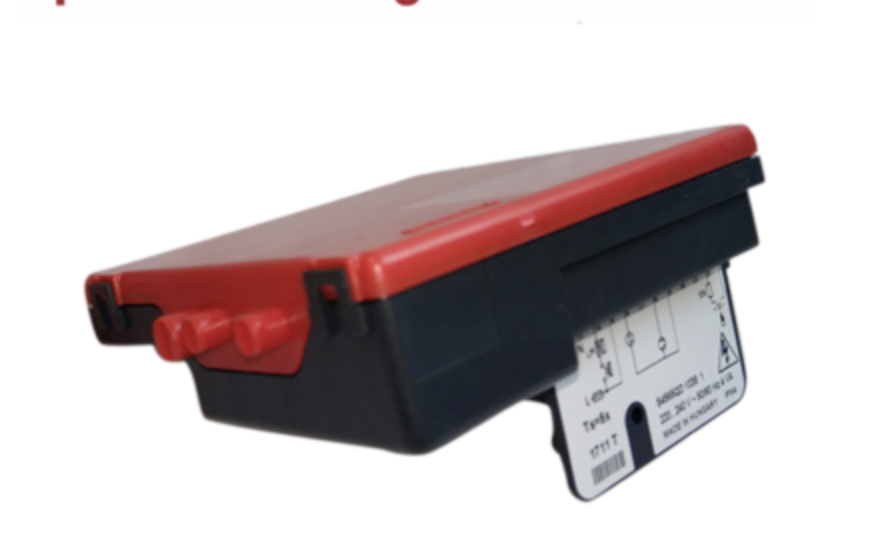

The Braemar TB Ignition Pack (610580) is a critical component used in Braemar TB series ducted gas heaters. It is responsible for managing the ignition and flame-sensing process, ensuring that the gas heater ignites safely and operates efficiently. This part plays a vital role in controlling the heating system's operation, making it essential for the proper functioning of the heater.
Key Features of the Braemar TB Ignition Pack (610580):
-
Ignition Control:
- The ignition pack manages the ignition sequence for the heater, ensuring that the gas is ignited in a controlled and safe manner. It sends signals to start the ignition process and monitors the flame once the system is operating.
-
Flame Detection:
- A crucial feature of the Braemar TB Ignition Pack (610580) is its flame-sensing ability. After ignition, the pack monitors the flame to ensure it is stable. If the flame is lost, the system will shut off automatically to prevent unsafe gas buildup.
-
Safety Features:
- This ignition pack is designed with safety in mind. It prevents the system from operating if the flame is not detected, ensuring that there are no risks of gas leaks or unsafe ignition.
-
Compatibility:
- The Braemar TB Ignition Pack (610580) is specifically designed for use with Braemar TB series gas heaters, providing optimal performance and compatibility with these units.
-
Durability:
- As a part of the Honeywell ignition system, the 610580 ignition pack is known for its reliability and long lifespan. It is built to withstand high temperatures and pressure, ensuring that it continues to function efficiently over time.
-
Replacement:
- If the ignition pack fails, it is generally easy to replace. The part is designed to be a direct replacement for the old ignition pack, so installation and setup are straightforward.
Installation of the Braemar TB Ignition Pack (610580):
-
Turn Off Power:
- Before beginning any work, ensure that the gas supply and electricity to the heater are completely turned off to avoid electrical hazards or accidental gas leaks.
-
Remove the Old Ignition Pack:
- Locate the old ignition pack inside the unit (usually near the burner assembly) and disconnect any wires or screws securing it in place. You may need to remove the heater's panel to access the ignition pack.
-
Install the New Ignition Pack:
- Insert the new ignition pack in place, ensuring that the connectors align correctly. Secure it in place with the appropriate screws, and connect the wiring terminals to their respective connectors.
-
Reconnect Power and Gas:
- Once the new ignition pack is installed, reconnect the power supply and gas line to the heater.
-
Test the Heater:
- Turn the system back on and test the operation of the heater. Ensure that the ignition process starts correctly and that the system properly detects the flame. The heater should go through the ignition process and start heating without issues.
Troubleshooting:
-
Ignition Failure:
- If the heater does not ignite, check that the wiring and connections are correctly installed. Also, inspect the ignition electrode for any buildup of dirt or debris that could prevent it from sparking properly.
-
Flame Detection Issues:
- If the system ignites but does not detect the flame, inspect the flame sensor for dirt or damage. Clean the sensor if necessary or replace it if it's faulty.
-
Error Codes:
- If the heater displays error codes, refer to the Braemar user manual for specific troubleshooting steps. Error codes often indicate a problem with the ignition or flame-sensing system.
Conclusion:
The Braemar TB Ignition Pack (610580) is an essential component that ensures the safe and efficient operation of your Braemar TB series ducted gas heater. It controls the ignition process, monitors the flame, and incorporates safety features to prevent issues like gas buildup or flame loss. Replacing a faulty ignition pack is usually straightforward, and doing so will restore the heater's operation to its optimal level.
