Product Description

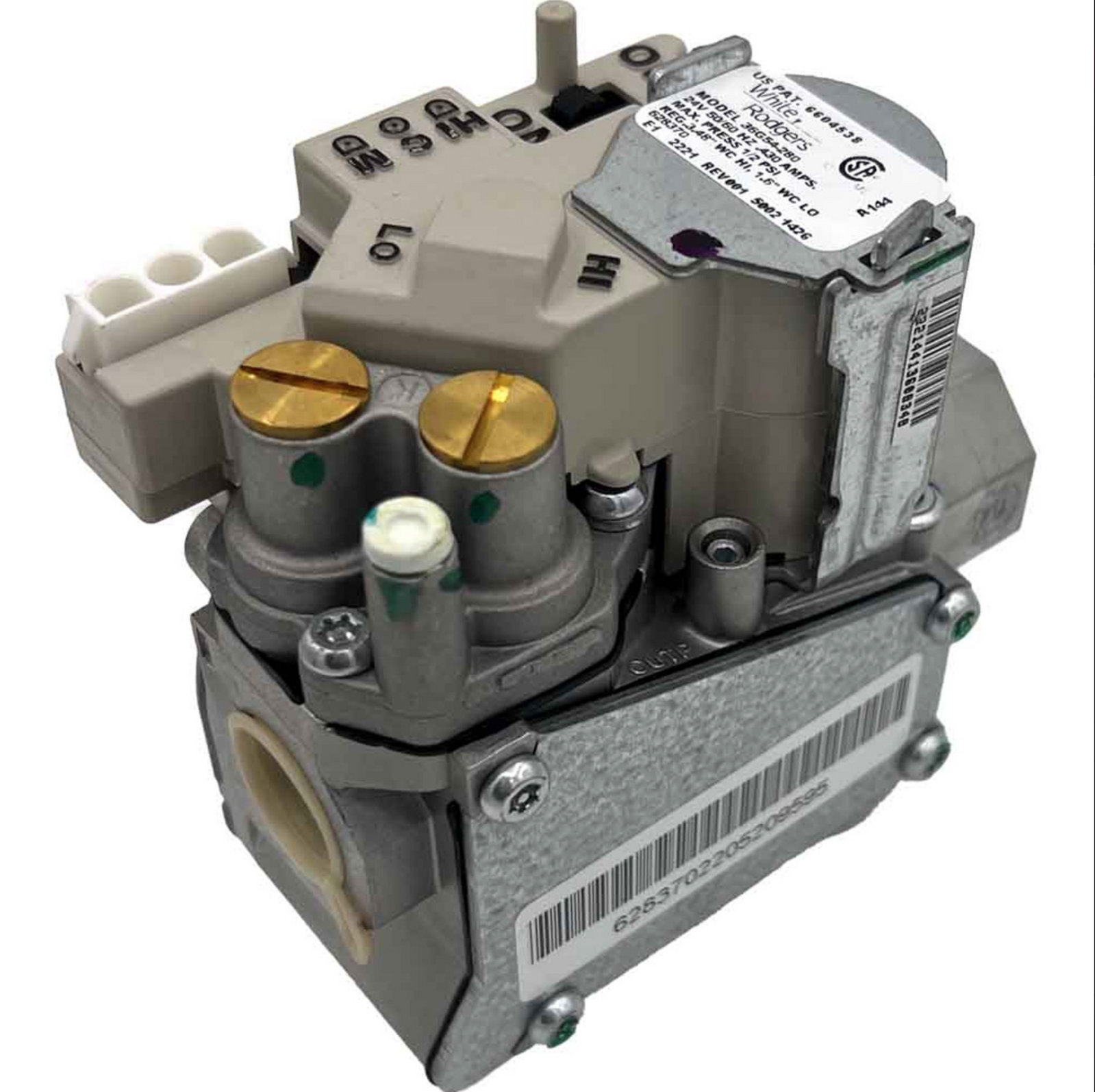

The Braemar WF 25 Wall Furnace Heater Gemini White Rodgers Gas Valve WR Stage 2 24V (Part Number: 628370) is a crucial component for the Braemar WF 25 Wall Furnace Heater that controls the flow of gas to the unit, ensuring safe and efficient operation. This gas valve is designed for two-stage operation, allowing the heater to operate in different stages based on the demand for heating. It is compatible with the Gemini and other Braemar WF 25 models, and it operates with 24V power.
Key Features of the Braemar WF 25 Wall Furnace Heater Gemini White Rodgers Gas Valve WR Stage 2 24V (Part Number: 628370):
-
Two-Stage Gas Control:
- The stage 2 valve operates in two stages, meaning it regulates gas flow depending on the heating needs of the room. This allows for better energy efficiency and helps maintain a consistent temperature by adjusting the flame size in response to demand.
-
24V Power Supply:
- The valve operates on a 24V power supply, which is common in many modern gas heater systems. This low voltage ensures safe operation while maintaining efficient gas control.
-
White Rodgers Technology:
- The gas valve is manufactured by White Rodgers, a recognized leader in heating control technology. White Rodgers valves are known for their reliability, precision, and durability in controlling gas flow in heating systems.
-
Compatibility:
- This gas valve (PN 628370) is specifically designed for the Braemar WF 25 Wall Furnace Heater, but it may also be compatible with other models that utilize Gemini White Rodgers gas valves. Always verify compatibility with your specific unit before purchasing.
-
High-Quality Construction:
- The valve is built with high-quality materials to ensure long-lasting performance. It is designed to withstand high temperatures and pressures within the heating system and is built for durability and reliability.
Installation of the Braemar WF 25 Wall Furnace Heater Gemini White Rodgers Gas Valve WR Stage 2 24V (Part Number: 628370):
-
Safety First:
- Before replacing the gas valve, make sure to turn off the gas supply to the heater and disconnect the power to ensure safety during installation. Working with gas systems can be dangerous, so ensure proper precautions are followed.
-
Access the Heater:
- You will need to remove the access panels or the front cover of the Braemar WF 25 wall furnace to gain access to the gas valve.
-
Disconnect the Old Gas Valve:
- Carefully disconnect the electrical wiring and the gas lines from the old gas valve. Note the wiring connections so you can replicate them when installing the new valve. Use appropriate tools to safely remove the gas lines.
-
Install the New Gas Valve (628370):
- Install the new Gemini White Rodgers gas valve by connecting the gas lines and the electrical wiring to the new valve. Make sure all connections are secure to avoid any gas leaks or electrical issues. Tighten the connections without overtightening.
-
Test the System:
- Once the new gas valve is installed, turn the gas supply and power back on. Test the heater to ensure it is operating correctly and that the gas flow is being properly regulated. The valve should operate in two stages, providing efficient heating based on demand.
-
Check for Leaks:
- After installation, check for gas leaks around the gas connections using a gas leak detector or soapy water solution. If any bubbles appear, there may be a leak, and you should tighten the connections or replace the faulty part immediately.
Troubleshooting:
-
Heater Not Igniting:
- If the heater is not igniting after replacing the gas valve, check the electrical connections to ensure they are properly connected. Also, ensure that the gas supply is turned on and that the valve is correctly installed.
-
Valve Not Switching Between Stages:
- If the gas valve is not switching between the two stages, ensure that the control board is working properly and is sending the correct signals to the valve. A malfunction in the control board could prevent the valve from adjusting the gas flow correctly.
-
Gas Leaks:
- If you detect a gas leak, ensure that all gas connections are properly tightened. If the leak persists, contact a licensed professional to inspect the unit and resolve the issue.
Conclusion:
The Braemar WF 25 Wall Furnace Heater Gemini White Rodgers Gas Valve WR Stage 2 24V (PN: 628370) is a vital part of the heater’s gas control system, ensuring safe and efficient operation. By managing the flow of gas in two stages, this valve helps optimize energy use and provides reliable heating performance. Proper installation and maintenance are crucial for ensuring safe operation, so always follow safety guidelines when working with gas components.
