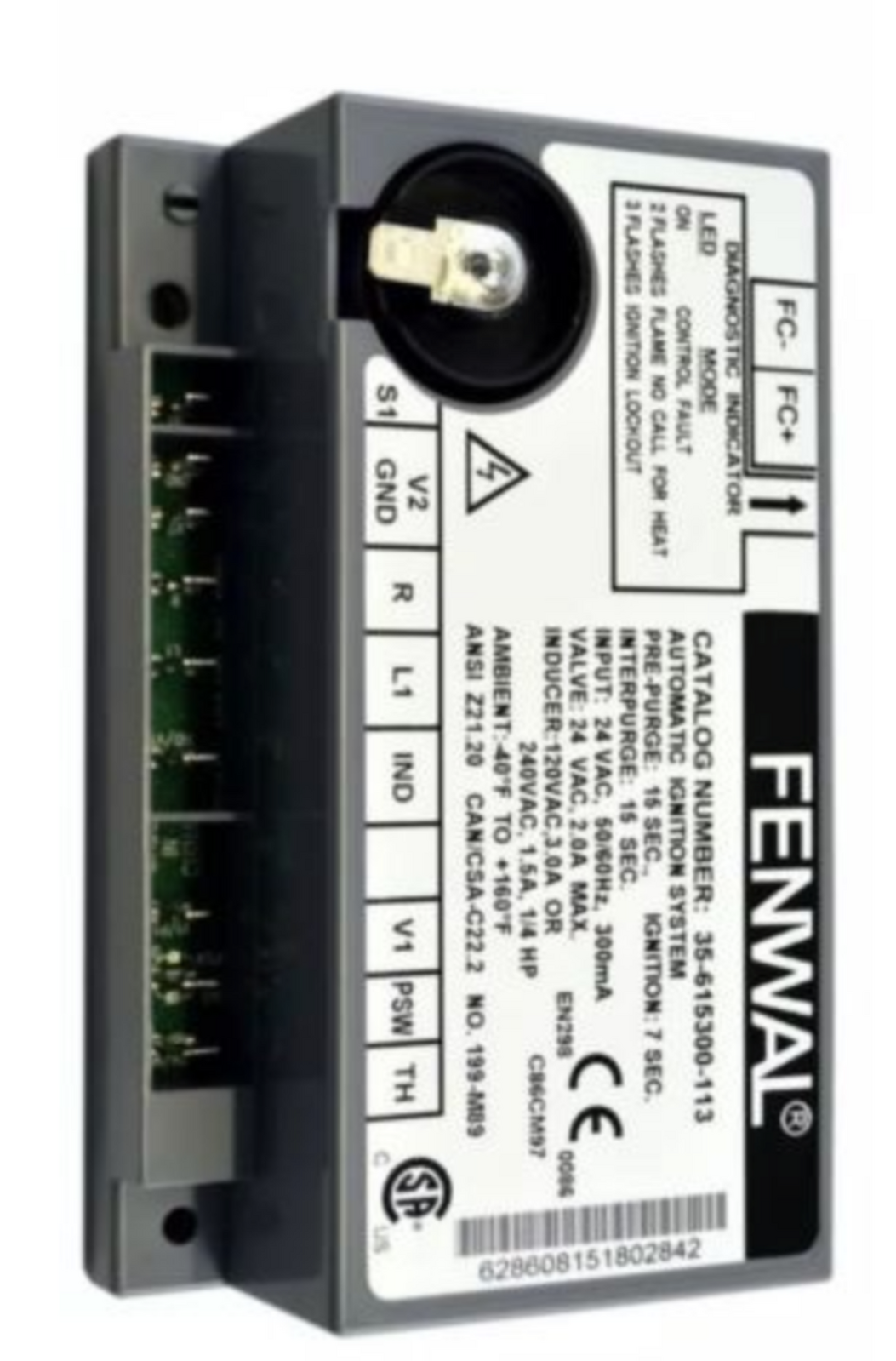

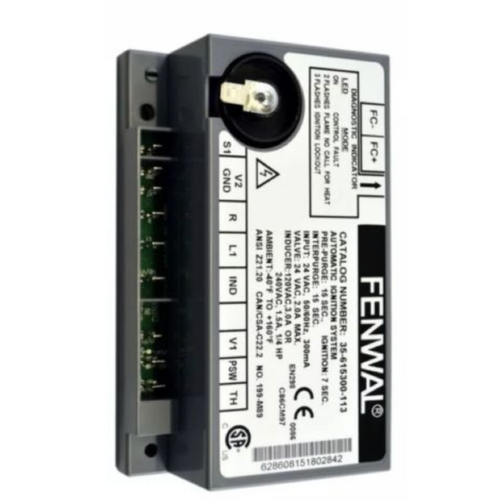

Braemar TG5 Star Ignition Unit Fenwal 35-615300-113 for Gas Ducted Heaters PN. 628608
SKU: 19976
$269.00
The Braemar TG5 Star Ignition Unit Fenwal 35-615300-113 is an essential component in the gas ducted heaters designed for Braemar TG5 Star models. This ignition unit ensures safe and efficient operation of the heating system by providing electronic ignition for the gas burner. The ignition unit plays a key role in the overall heating process, allowing the heater to generate heat by igniting the gas.
The Fenwal 35-615300-113 Ignition Unit is a highly reliable and efficient component used in Braemar TG5 Star Gas Ducted Heaters. It works by generating a high-voltage spark to ignite the gas in the burner, initiating the combustion process and ensuring the heater operates safely and effectively.
Electronic Ignition:
The Fenwal 35-615300-113 unit utilizes electronic ignition to create a high-voltage spark that ignites the gas. This eliminates the need for a continuously burning pilot light, which makes the system more energy-efficient.
It ensures the ignition happens only when required, reducing energy consumption and preventing unnecessary operation.
Flame Detection:
Once the gas is ignited, the ignition unit continuously monitors the flame to ensure that it remains stable. If the flame fails to ignite or is extinguished, the unit will automatically shut off the gas flow to prevent dangerous gas accumulation.
The flame failure protection feature helps improve safety by ensuring that gas is only allowed to flow if the ignition is successful and the flame is sustained.
Safety Features:
The ignition unit is equipped with safety mechanisms like:
Flame failure protection: If the flame goes out or fails to ignite, the gas supply is automatically turned off to prevent unburned gas from accumulating.
Overheating protection: The ignition unit is designed to handle high temperatures, and it ensures the system operates within safe limits.
Gas cut-off: If there is any issue with ignition or flame detection, the unit will stop the gas supply to ensure safety.
Durable Construction:
The Fenwal 35-615300-113 ignition unit is made from durable materials capable of withstanding high temperatures and the rigorous conditions found in gas heating systems. This ensures long-lasting and reliable operation.
Part Number:
The Part Number 628608 is used when referring to this specific ignition unit for Braemar TG5 Star models. This is important when replacing or sourcing the part.
Thermostat Activation:
When the thermostat signals that heating is needed, the ignition unit receives the signal and prepares to ignite the gas.
Gas Flow:
The ignition unit opens the gas valve, allowing gas to flow into the burner.
Spark Generation:
The ignition unit generates a high-voltage spark, which ignites the gas in the burner, starting the combustion process.
Flame Monitoring:
After the ignition, the unit continuously monitors the flame to ensure that it stays lit. If the flame goes out, the unit automatically shuts off the gas supply to avoid any unsafe conditions.
Ongoing Safety Monitoring:
The ignition unit continues to monitor the flame throughout the operation of the heater, ensuring that the gas burner continues to function safely and efficiently.
The Fenwal 35-615300-113 Ignition Unit is used in Braemar TG5 Star Gas Ducted Heaters. These heaters are typically used in both residential and commercial settings to provide centralized heating.
The ignition unit ensures the heater operates safely and efficiently by reliably igniting the gas and maintaining proper combustion.
If you're experiencing problems with your Braemar TG5 Star Gas Ducted Heater, it could be due to issues with the Fenwal 35-615300-113 Ignition Unit. Some common problems include:
Failure to Ignite: If the ignition unit does not generate the spark, the heater will fail to ignite.
Flame Detection Failure: If the unit cannot detect the flame after ignition, it will shut off the gas supply as a safety precaution.
Gas Flow Problems: If the ignition unit or associated gas valve is malfunctioning, the heater may not operate properly.
If you're facing issues like those listed above, replacing the Fenwal 35-615300-113 Ignition Unit may resolve the problem. Here's how to replace it:
Turn Off Power and Gas:
Before starting, ensure that the heater is powered off and the gas supply is shut off to avoid any accidents.
Locate the Ignition Unit:
The Fenwal 35-615300-113 Ignition Unit is typically located near the burner assembly and the gas valve. Consult your heater's manual to locate the unit.
Disconnect Wiring:
Carefully disconnect the electrical wiring from the old ignition unit, making a note of the wiring connections for proper reinstallation.
Remove the Old Ignition Unit:
Remove the faulty ignition unit and replace it with the new Fenwal 35-615300-113 Ignition Unit.
Reconnect Wiring:
Reconnect the wiring to the new unit, ensuring that all connections are secure and correctly matched.
Test the System:
Once the new unit is installed and the wiring is secure, turn the power and gas supply back on, and test the system to ensure that the ignition is functioning correctly.
The Braemar TG5 Star Ignition Unit Fenwal 35-615300-113 is crucial for ensuring the safe and efficient operation of gas ducted heaters. It provides the spark for ignition and ensures flame detection and gas safety during operation. If you're experiencing ignition problems, replacing this unit may help restore the proper function of your heater.
| SKU | 19976 |
| Brand | Braemar |
