Product Description

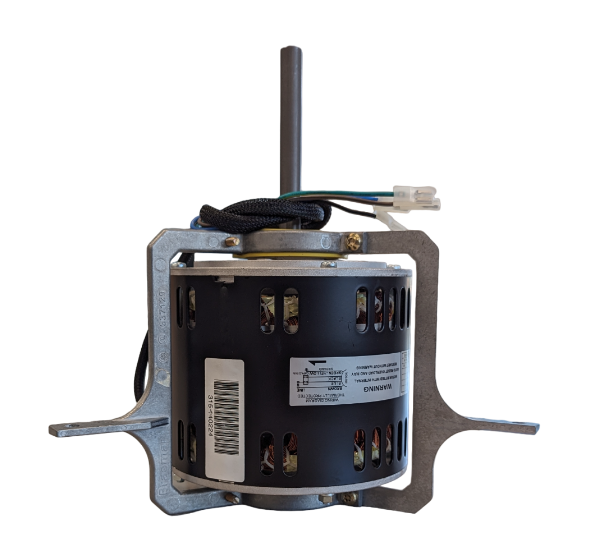

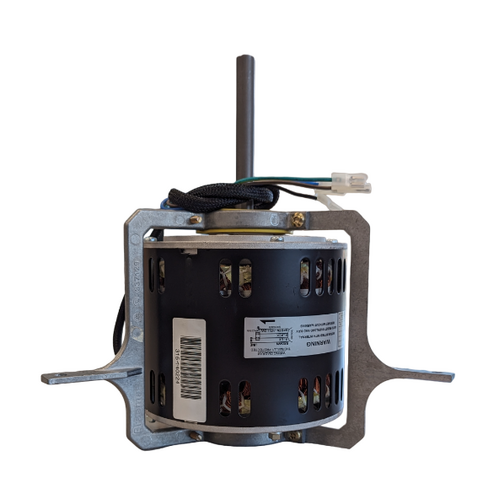

The Braemar TH 523 Gas Ducted Heater Blower Fan Motor Single Speed 315 Watt PN. 076935 is an essential component of the Braemar TH 523 gas ducted heating system. This motor powers the blower fan, which is responsible for circulating warm air throughout your home via the ductwork, ensuring consistent heating during the colder months.
1. Function of the Blower Fan Motor:
- The blower fan motor drives the fan, which circulates heated air produced by the gas heater through the ducting system to warm your home.
- Operating at a single speed, this motor provides a consistent airflow, ensuring that warm air is continuously circulated at a fixed rate.
- The 315-watt power rating indicates the motor’s ability to provide sufficient power to drive the blower fan effectively, ensuring efficient air circulation throughout your home.
2. Key Features:
- Single-Speed Operation: This motor operates at a constant, single speed, providing steady airflow and ensuring your heating system works efficiently.
- 315-Watt Power: The motor has a 315-watt power rating, which is enough to circulate air throughout the ducts and ensure even and effective heating.
- Durability: Built to last, this motor is designed for continuous operation throughout heating seasons, offering long-lasting reliability and performance.
3. Common Symptoms of a Faulty Blower Fan Motor:
- No Airflow: If the motor stops working, the blower fan will not operate, leading to a lack of warm air circulation throughout the house.
- Weak or Intermittent Airflow: A malfunctioning motor might result in weak or inconsistent airflow, leading to uneven heating and cold spots.
- Unusual Noises: Grinding, squealing, or buzzing sounds could indicate internal damage to the motor, such as worn-out bearings or other faults.
- Motor Overheating: A failing motor may overheat, triggering the system’s safety mechanisms and causing the heater to shut down to prevent damage.
- Error Codes or System Lockout: Many modern systems have diagnostic features that may display error codes or cause a lockout if the blower motor fails to operate correctly.
4. Replacement Considerations:
- Correct Part Number (PN. 076935): It's crucial to use the correct replacement motor, PN. 076935, to ensure compatibility with your Braemar TH 523 system.
- Motor Specifications: Ensure that the replacement motor matches the original in terms of 315-watt power and single-speed operation for optimal performance.
- Professional Installation: If you are not comfortable with electrical or mechanical work, it's recommended to hire a licensed HVAC technician to replace the blower fan motor. This ensures the job is done safely and correctly.
5. Installation Process:
- Turn Off Gas and Power: Before starting any work, ensure that both the gas supply and electrical power are turned off to avoid safety hazards.
- Access the Blower Motor: Remove the front panel or cover of the heating unit to access the blower motor. This usually involves unscrewing or unclipping the panel.
- Disconnect the Old Motor: Disconnect the wiring from the existing motor and remove any fasteners holding it in place.
- Install the New Motor: Secure the new 315-watt motor in place and reconnect the wiring according to the manufacturer’s instructions or wiring diagram.
- Test the System: After installing the new motor, turn the system back on and test it to ensure the blower fan operates correctly and warm air circulates as expected.
6. Maintenance Tips:
- Regular Cleaning: Dirt, dust, and debris can accumulate on the blower fan and motor. Regular cleaning will help maintain airflow and reduce strain on the motor, leading to better system performance.
- Inspect for Wear: Check the motor periodically for signs of wear, including unusual noises or reduced airflow, which may indicate a problem with the motor or fan.
- Lubrication: Some motors may require periodic lubrication. Refer to the manufacturer’s guidelines for proper maintenance and lubrication procedures to keep the motor running smoothly.
7. Conclusion:
The Braemar TH 523 Gas Ducted Heater Blower Fan Motor Single Speed 315 Watt PN. 076935 is a vital part of the heating system that ensures proper air circulation for efficient heating. If the motor fails, the blower fan will not operate, causing poor air circulation and ineffective heating. Replacing the motor with the correct part number PN. 076935 will restore your system’s functionality and ensure it continues to operate at peak efficiency.
